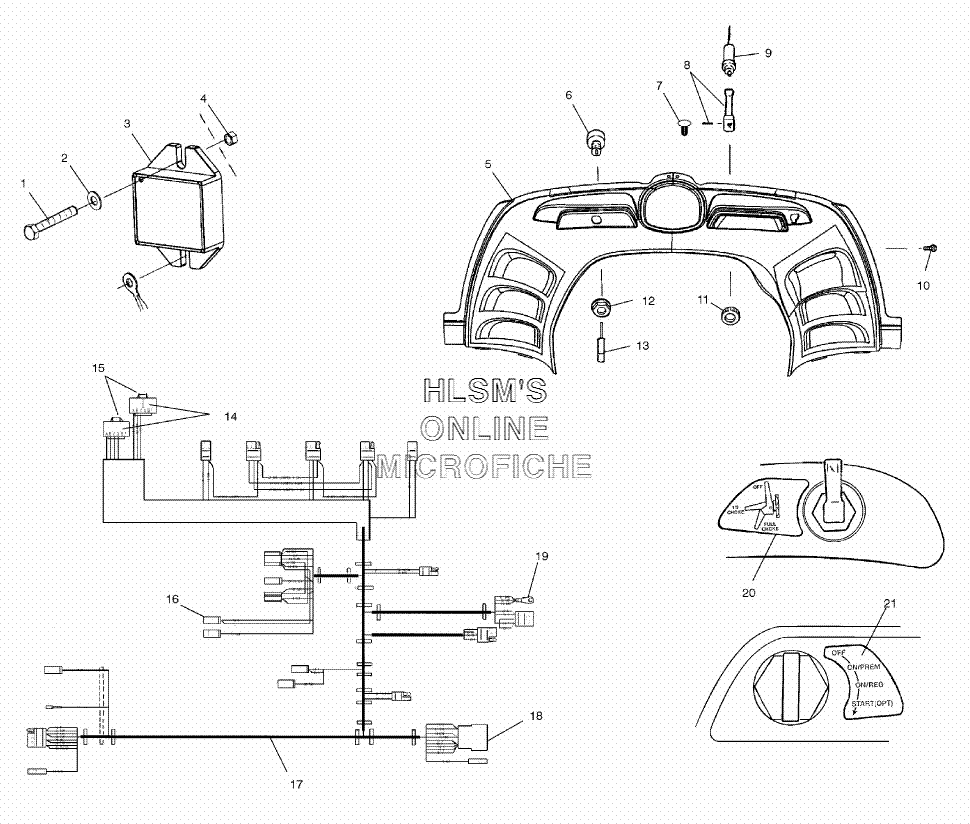

CONSOLE для Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 (S02NL8CS) - 2002 года выпуска`
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
27555746 BURR, RIVETBURR, RIVET
-
34010301 REGULATOR (14.3 V)REGULATOR (14.3 V)
-
47541925 NUTNUT
-
55434134 CONSOLE, EDGECONSOLE, EDGE
-
62201614 IGNITION SWITCH KITIGNITION SWITCH KIT
-
77670090 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
85432943 CHOKE LEVER KIT (INCL. PIN)CHOKE LEVER KIT (INCL. PIN)
-
97080946 CABLE, CHOKE, RACK (INCL. 8, 11)CABLE, CHOKE, RACK (INCL. 8, 11)
-
107515199 SCREWSCREW
-
115432944 NUT, CHOKENUT, CHOKE
-
127547035 NUT, IGNITIONNUT, IGNITION
-
135410611 IGNITION KEYIGNITION KEY
-
144010192 SOCKET, PACKARD #12047767SOCKET, PACKARD #12047767
-
154010193 HOUSING CONNECTOR, PAC #12186213HOUSING CONNECTOR, PAC #12186213
-
164020092 TERMINAL, RINGTERMINAL, RING
-
172460932 HARNESS, MAINHARNESS, MAIN
-
184020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
194020063 HOUSINGHOUSING
-
207170061 DECAL, CHOKEDECAL, CHOKE
-
217079509 DECAL, IGNITION TPSDECAL, IGNITION TPS
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- • CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING LINKAGE
- STEERING POST ASSEMBLY
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT TRACK
- SUSPENSION - REAR SHOCK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TAILLIGHT ASSY W/ REFLECTORS AND FLAP
- TOOL KIT
- WATER PUMP
