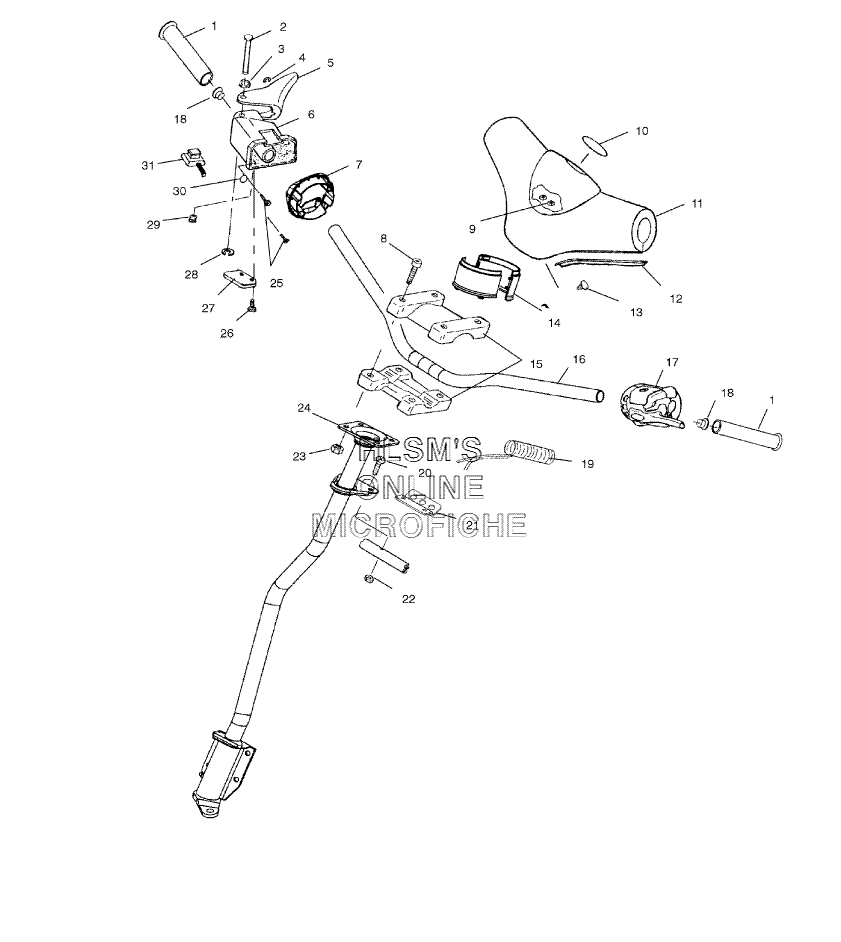

HANDLEBAR ASSEMBLY для Polaris 700 SKS EURO (S02SS7CE) - 2002 года выпуска`
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN, HINGEPIN, HINGE
-
37555730 WASHERWASHER
-
47710503 RETAINING RINGRETAINING RING
-
55432970 THROTLE, LEVER 35.5MMTHROTLE, LEVER 35.5MM
-
52010171 LEVER ASSY., HTR, HI/LO 35.5MMLEVER ASSY., HTR, HI/LO 35.5MM
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75433345 ADAPTER BLOCK, THROTTLEADAPTER BLOCK, THROTTLE
-
87517238 SCREWSCREW
-
97670106 NUT, PUSH ON (.170-.180-Y)NUT, PUSH ON (.170-.180-Y)
-
105434179 EMBLEM-'' STAR'' PLM.BEZEL, HANDLEBAREMBLEM-'' STAR'' PLM.BEZEL, HANDLEBAR
-
115433159-070 COVER, HANDLEBAR (BLACK)COVER, HANDLEBAR (BLACK)
-
125433160-070 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
134010287 DART-CLIP NYLON (BLACK)DART-CLIP NYLON (BLACK)
-
145433331 BOOT, HANDLEBARBOOT, HANDLEBAR
-
155630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
161820666-067 HANDLEBAR, RMK. (BLACK)HANDLEBAR, RMK. (BLACK)
-
185431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
192460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
207517377 SCREWSCREW
-
215242553 BRACKET, TANK RETENTIONBRACKET, TANK RETENTION
-
227542103 NUT, LOCKNUT, LOCK
-
237542122 NUT-LOCKNUT-LOCK
-
241820651-067 STEERING POST, FORMED (BLACK)STEERING POST, FORMED (BLACK)
-
257511848 SCREW-SEMSSCREW-SEMS
-
267511858 SCREWSCREW
-
275432261 HOLDER-WIREHOLDER-WIRE
-
287710401 E-RINGE-RING
-
297512465 SCREWSCREW
-
307555727 RIVET BURRRIVET BURR
-
314110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
