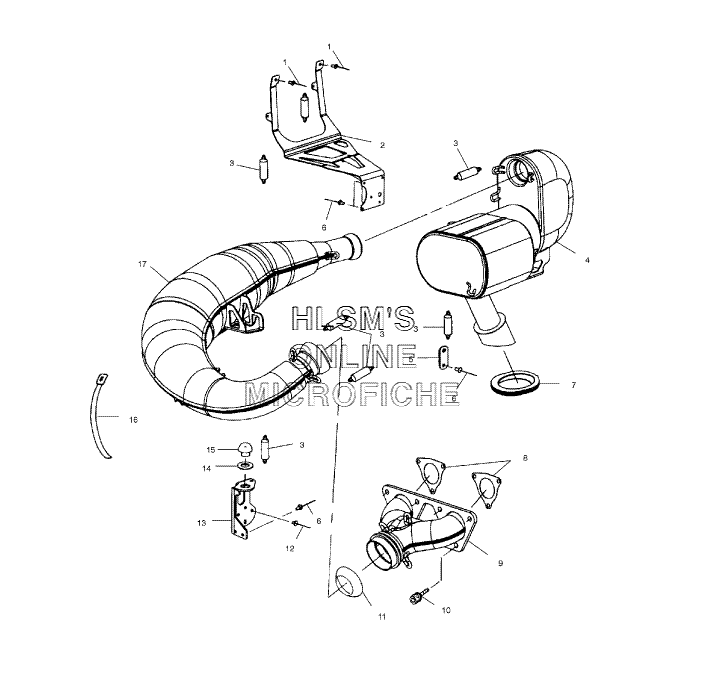

EXHAUST SYSTEM для Polaris 700 SKS EURO (S02SS7CE) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 2
    1261026-029 BRACKET, CHASSIS/RESON, (BLACK)
    BRACKET, CHASSIS/RESON, (BLACK)
  • 3
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 4
    1261027-029 RESONATOR, (BLACK)
    RESONATOR, (BLACK)
  • 5
    5243186-067 HOOD-SPRING, (BLACK)
    HOOD-SPRING, (BLACK)
  • 6
    7661130 RIVET-3/16-.214-.420
    RIVET-3/16-.214-.420
  • 7
    5411494 BOOT, EXHAUST, OUTLET
    BOOT, EXHAUST, OUTLET
  • 8
    5811952 GASKET, EXHAUST
    GASKET, EXHAUST
  • 9
    1260986-029 MANIFOLD, (BLACK)
    MANIFOLD, (BLACK)
  • 10
    7517322 SCREW
    SCREW
  • 11
    3610046 SEAL, EXH.SOCKET
    SEAL, EXH.SOCKET
  • 12
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 13
    5241832 BRACKET, MUFFLER, FRONT-Z
    BRACKET, MUFFLER, FRONT-Z
  • 14
    7556004 WASHER
    WASHER
  • 15
    5411576 DAMPENER-VIBRATION, W/RIBS
    DAMPENER-VIBRATION, W/RIBS
  • 16
    7080739 CLAMP, WORM, (.44 X 3.13)
    CLAMP, WORM, (.44 X 3.13)
  • 16
    7080740 CLAMP, WORM, (.44 X 3.69)
    CLAMP, WORM, (.44 X 3.69)
  • 16
    7080741 CLAMP, WORM, (.44 X 4.25)
    CLAMP, WORM, (.44 X 4.25)
  • 16
    7080742 CLAMP, WORM, (.44 X 6.38)
    CLAMP, WORM, (.44 X 6.38)
  • 17
    1261161 TUNED PIPE ASSY (INCL. 16)
    TUNED PIPE ASSY (INCL. 16)
  • 17
    5241720 COVER, TUNED PIPE, TOP
    COVER, TUNED PIPE, TOP
  • 17
    5244476 COVER-TUNED PIPE, BOTTOM
    COVER-TUNED PIPE, BOTTOM
  • 17
    5830111 MATTE, SOUND
    MATTE, SOUND
  • 17
    5830126 MATTE, SOUND, BTM.
    MATTE, SOUND, BTM.
