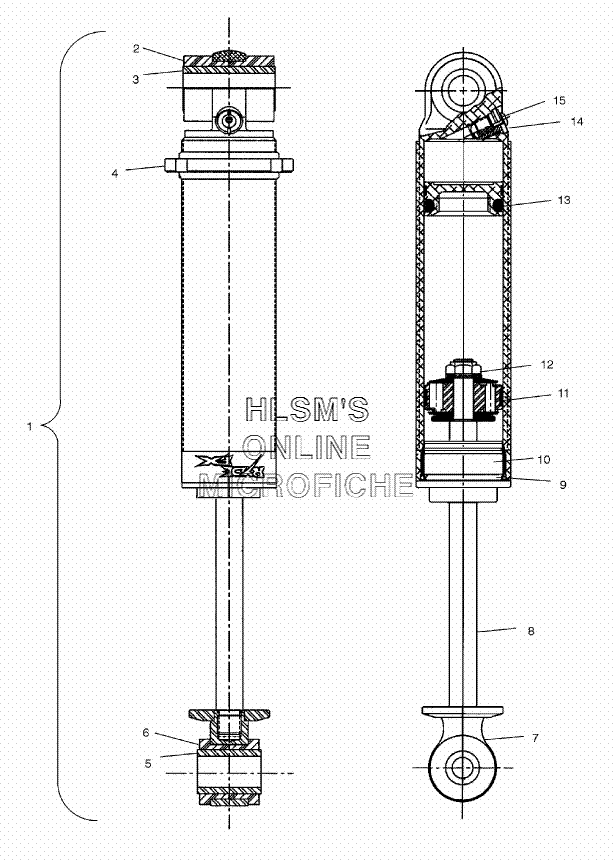

SUSPENSION SHOCK (FRONT TRACK EDGE) для Polaris 600 XC SP F/O EDGE X (S02NE6ES) - 2002 года выпуска`
-
№АртикулНазвание
-
1A7041975 SHOCK (F/T IFP ARVIN)SHOCK (F/T IFP ARVIN)
-
11700074 BUSHINGBUSHING
-
21700071 SLEEVE (.57''IDX.80''ODX1.68)SLEEVE (.57''IDX.80''ODX1.68)
-
31700033 SPRING RET NUTSPRING RET NUT
-
41700069 SLEEVE (.57''IDX.80''ODX1.20)SLEEVE (.57''IDX.80''ODX1.20)
-
51700075 BUSHINGBUSHING
-
61700010 UPPER MOUNTUPPER MOUNT
-
71700026 SHAFT (1/2''DIAX6.10''L)SHAFT (1/2''DIAX6.10''L)
-
81700007 CYLINDER HEAD ASSY. (1/2'' ROD)CYLINDER HEAD ASSY. (1/2'' ROD)
-
91700021 ROD SEALROD SEAL
-
101700022 CAP SEALCAP SEAL
-
111700103 BANDED PISTON (.070'' ORIFCE)BANDED PISTON (.070'' ORIFCE)
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP, OUT WASHERTOP, OUT WASHER
-
111700078 BACK, UP WASHERBACK, UP WASHER
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP, O-RINGIFP, O-RING
-
141700076 PRESS, VALVE ASSY.PRESS, VALVE ASSY.
-
151700056 VALVE SCREWVALVE SCREW
