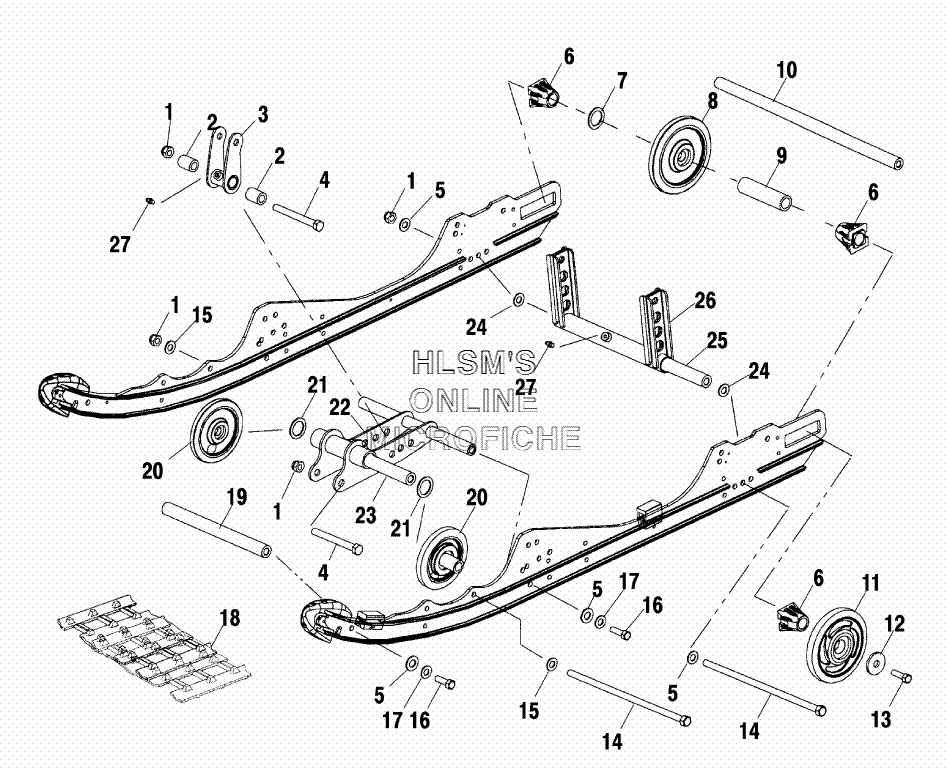

SUSPENSION - REAR для Polaris 600 XC SP F/O EDGE X (S02NE6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 2
    5131940 BUSHING
    BUSHING
  • 3
    1541477-067 SHOCK PIVOT ARM (2.5, BLACK)
    SHOCK PIVOT ARM (2.5, BLACK)
  • 4
    7515417 BOLT
    BOLT
  • 5
    7555806 WASHER
    WASHER
  • 6
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 7
    7555918 BUSHING
    BUSHING
  • 8
    1594087 WHEEL ASSY., PLAIN (6.38 O.D.)
    WHEEL ASSY., PLAIN (6.38 O.D.)
  • 9
    5333285 SPACER, IDLER (LONG)
    SPACER, IDLER (LONG)
  • 10
    5020744 SHAFT, IDLER
    SHAFT, IDLER
  • 11
    1590303-293 WHEEL, IDLER (HP, RED)
    WHEEL, IDLER (HP, RED)
  • 11
    1590303-312 WHEEL IDLER ASSY. (HP, INDY BLUE)
    WHEEL IDLER ASSY. (HP, INDY BLUE)
  • 11
    7710444 RING, RETAINING
    RING, RETAINING
  • 11
    3514012 BEARING
    BEARING
  • 12
    7556130 WASHER (.406X1.25X.125)
    WASHER (.406X1.25X.125)
  • 13
    7517731 BOLT (3/8, 16X1.25)
    BOLT (3/8, 16X1.25)
  • 14
    7517353 SCREW
    SCREW
  • 15
    7555797 WASHER
    WASHER
  • 16
    7517247 SCREW
    SCREW
  • 17
    7552603 WASHER
    WASHER
  • 18
    5411369 TRACK (121''X15 .91 LUG) [.91]
    TRACK (121''X15 .91 LUG) [.91]
  • 18
    5222839 CLIP, TRACK (CAMOPLAST)
    CLIP, TRACK (CAMOPLAST)
  • 18
    5222840 CLIP, GUIDE (CAMOPLAST)
    CLIP, GUIDE (CAMOPLAST)
  • 18
    5411963 TRACK (121X1.25 SHOCKWAVE)
    TRACK (121X1.25 SHOCKWAVE)
  • 18
    5222839 CLIP, TRACK (CAMOPLAST)
    CLIP, TRACK (CAMOPLAST)
  • 19
    5020723 SHAFT, PIVOT ARM
    SHAFT, PIVOT ARM
  • 20
    1541485 WHEEL (5.35, .984 ID, W/ HOLE)
    WHEEL (5.35, .984 ID, W/ HOLE)
  • 21
    7556301 MACHINERY BUSHING
    MACHINERY BUSHING
  • 22
    1541463-067 SHOCK MOUNT (BLACK)
    SHOCK MOUNT (BLACK)
  • 23
    5132490 SHAFT (.390X.750X.8665)
    SHAFT (.390X.750X.8665)
  • 24
    7555893 WASHER
    WASHER
  • 25
    5333404 SHAFT
    SHAFT
  • 26
    1541478-067 REAR PIVOT ARM (3.75, BLACK)
    REAR PIVOT ARM (3.75, BLACK)
  • 27
    7080424 FITTING, LUBE.
    FITTING, LUBE.
