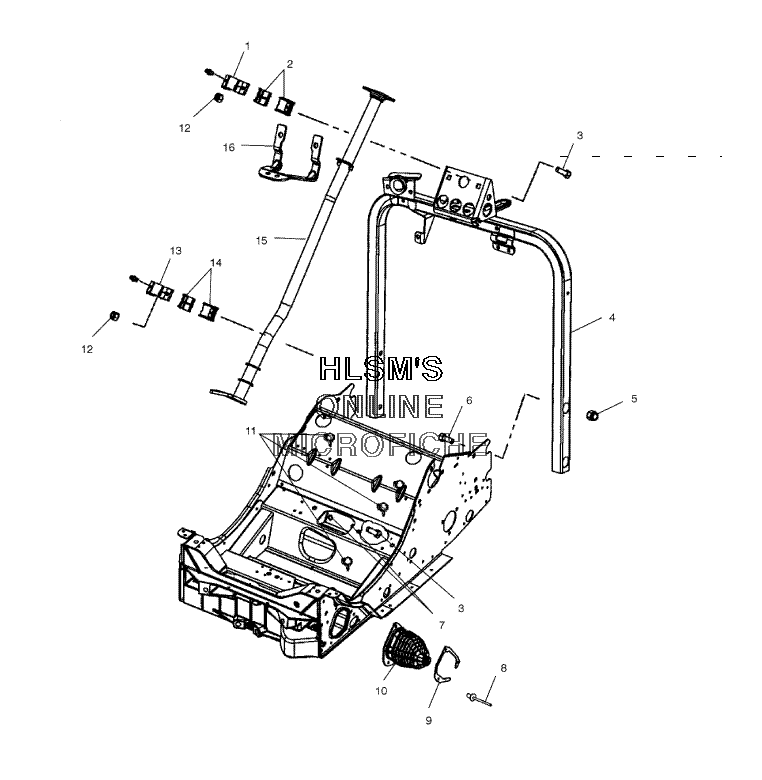

STEERING POST ASSEMBLY для Polaris 600 RMK 136 BUILT AFTER 3/1/01 (S02NJ6ES) - 2002 года выпуска
-
№АртикулНазвание
-
15131841 BRKT-STEERING POST, MODBRKT-STEERING POST, MOD
-
17080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
25432785 BUSHINGBUSHING
-
37517579 BOLT-CARR 5/16-X1"GR5 Y LOBOLT-CARR 5/16-X1"GR5 Y LO
-
41013444-067 WELD-STEERING HOOP (BLACK)WELD-STEERING HOOP (BLACK)
-
57542343 NUT, FLANGENUT, FLANGE
-
67512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
77547030 PALNUTPALNUT
-
87621433 RIVETRIVET
-
95244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
105433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
105433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
114020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
127542324 NUT, NYLOKNUT, NYLOK
-
135132967 BRKT-STEERING POST, ALUM, .75WBRKT-STEERING POST, ALUM, .75W
-
137080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
145434167 BUSHING, .75BUSHING, .75
-
151821162-067 WELD-STEERING POST, RMK (BLACK)WELD-STEERING POST, RMK (BLACK)
-
165245373 BRKT-CONSOLE, FRNT NECK, FWD, SRPBRKT-CONSOLE, FRNT NECK, FWD, SRP
