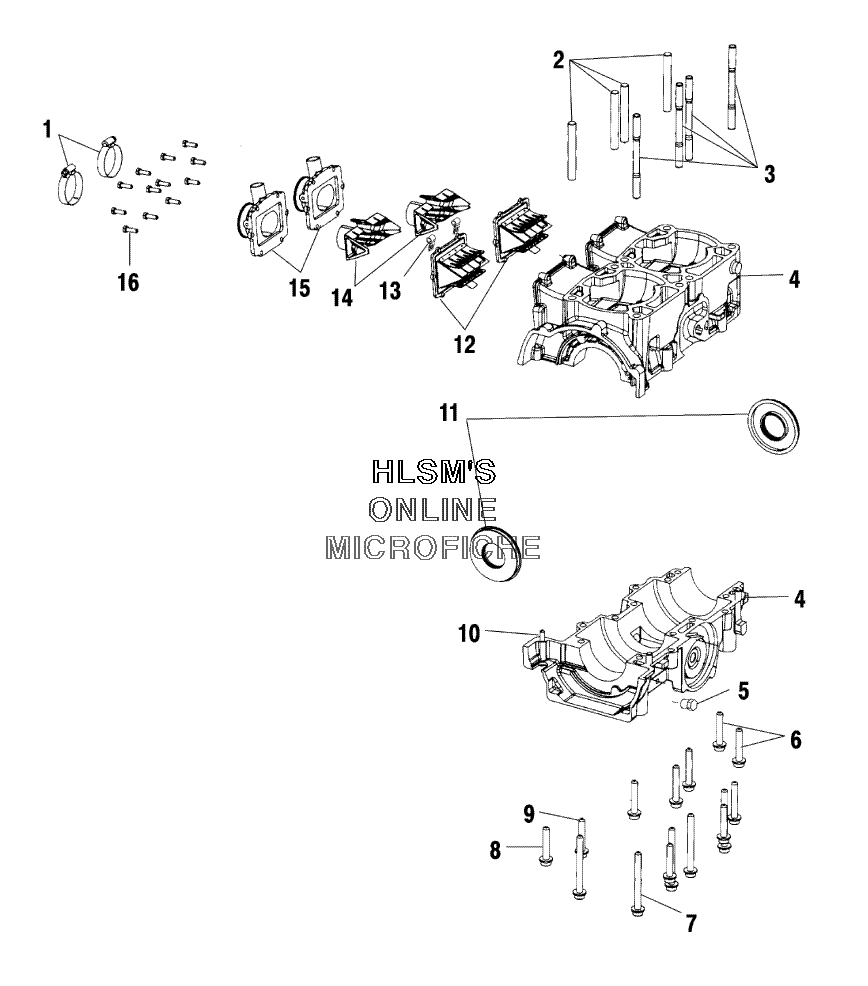

CRANKCASE ASSEMBLY для Polaris 600 RMK 136 BUILT AFTER 3/1/01 (S02NJ6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7080681 CLAMP, HOSE, SS,
    CLAMP, HOSE, SS,
  • 2
    5132196 STUD, CYL 81MM
    STUD, CYL 81MM
  • 3
    5132197 STUD, CYL 118MM
    STUD, CYL 118MM
  • 4
    2201931 CRANKCASE KIT (INCL. 2, 3, 5-10)
    CRANKCASE KIT (INCL. 2, 3, 5-10)
  • 5
    7051529 PLUG
    PLUG
  • 6
    7517785 BOLT, M8X1.25X55
    BOLT, M8X1.25X55
  • 7
    7517784 BOLT, M8X1.25X80
    BOLT, M8X1.25X80
  • 8
    7516825 SCREW
    SCREW
  • 9
    7517786 BOLT, M8X1.25X45
    BOLT, M8X1.25X45
  • 10
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 11
    5411394 SEAL, FLANGED
    SEAL, FLANGED
  • 12
    1201825 VALVE, REED, ASSY.
    VALVE, REED, ASSY.
  • 13
    7080880 CLAMP-HOSE, .625 DIA VNL COATED
    CLAMP-HOSE, .625 DIA VNL COATED
  • 14
    5433151 STUFFER-REED BLOCK, NOK
    STUFFER-REED BLOCK, NOK
  • 15
    1253423 ADAPTER-CARBURETOR
    ADAPTER-CARBURETOR
  • 16
    7516822 SCREW
    SCREW
