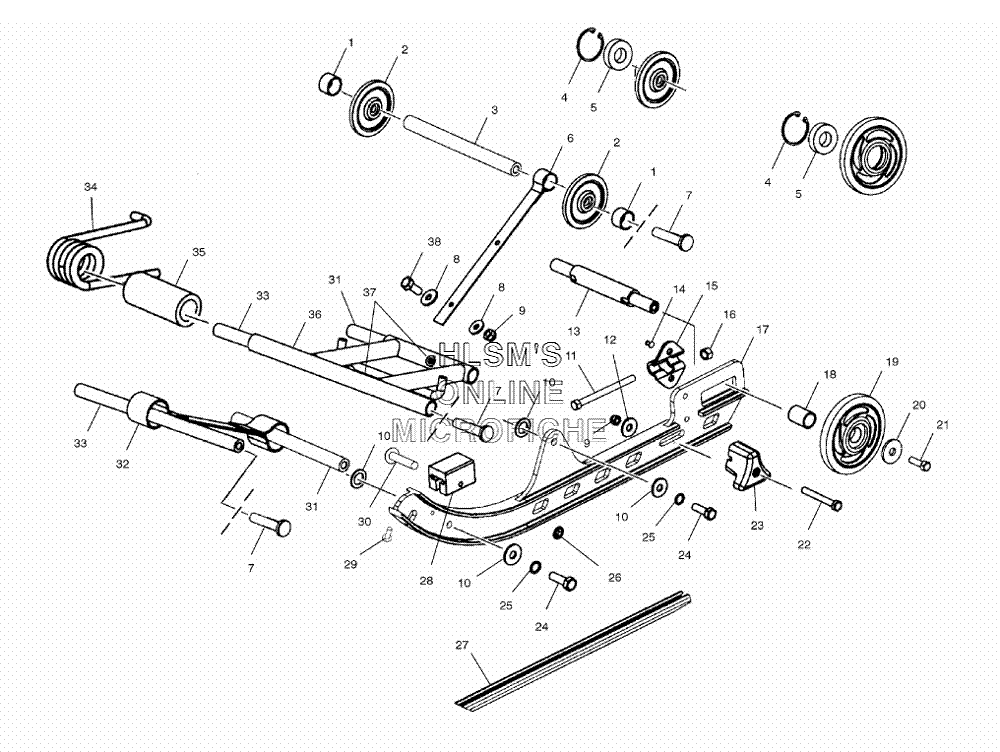

SUSPENSION - REAR для Polaris 120 XC SP (S02WB1AS) - 2002 года выпуска`
-
№АртикулНазвание
-
15333826 SPACER, CARRIER WHEELSPACER, CARRIER WHEEL
-
21541403 WHEEL, CARRIER (INCL. 4, 5)WHEEL, CARRIER (INCL. 4, 5)
-
35132254 SHAFT, CARRIERSHAFT, CARRIER
-
47710444 RING, RETAININGRING, RETAINING
-
53514012 BEARINGBEARING
-
65811954 STRAP, LIMITER REARSTRAP, LIMITER REAR
-
77517846 SCREWSCREW
-
87555960 WASHERWASHER
-
97542344 NUT, NYLOCKNUT, NYLOCK
-
107555734 WASHERWASHER
-
117517227 SCREWSCREW
-
127556171 WASHER, DISHWASHER, DISH
-
135132253 SHAFT, IDLER (REAR)SHAFT, IDLER (REAR)
-
147621512 RIVETRIVET
-
155241628 BRACKET, IDLER ADJ.BRACKET, IDLER ADJ.
-
167542451 NUT, NYLOCKNUT, NYLOCK
-
171541415 RAIL, XTRA LITE (68'', LEFT) ASSY.RAIL, XTRA LITE (68'', LEFT) ASSY.
-
171541416 RAIL, XTRA LITE (68'', RIGHT) ASSY.RAIL, XTRA LITE (68'', RIGHT) ASSY.
-
185333932 SPACER, IDLER (1 1/8 OD X.834 ID)SPACER, IDLER (1 1/8 OD X.834 ID)
-
191590279-293 WHEEL SCROLLED, (5.35, 20MMIR) ASSY. (INCL. 4, 5)WHEEL SCROLLED, (5.35, 20MMIR) ASSY. (INCL. 4, 5)
-
207556130 WASHERWASHER
-
217512492 SCREWSCREW
-
227515385 SCREWSCREW
-
235434124-070 BLOCK, TOE STOP (BLACK)BLOCK, TOE STOP (BLACK)
-
247515317 BOLTBOLT
-
257552901 LOCK WASHERLOCK WASHER
-
267670068 NUT, PUSH ONNUT, PUSH ON
-
275521557-309 HI, FAX (XCR 120, NATURAL)HI, FAX (XCR 120, NATURAL)
-
285521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
297515199 SCREWSCREW
-
307661621 PIN, HOOD HINGEPIN, HOOD HINGE
-
315132711 SHAFT, LOWER TORQUE ARMSHAFT, LOWER TORQUE ARM
-
325811953 STRAP, LIMITER FRONTSTRAP, LIMITER FRONT
-
335132257 SHAFT, UPPER TORQUE ARMSHAFT, UPPER TORQUE ARM
-
347041844-067 SPRING, TORSION (LEFT BLACK)SPRING, TORSION (LEFT BLACK)
-
347041845-067 SPRING, TORSION (RIGHT BLACK)SPRING, TORSION (RIGHT BLACK)
-
355433507 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
361541398-067 TORQUE ARM (BLACK)TORQUE ARM (BLACK)
-
377080424 FITTING, LUBEFITTING, LUBE
-
387512307 SCREWSCREW
