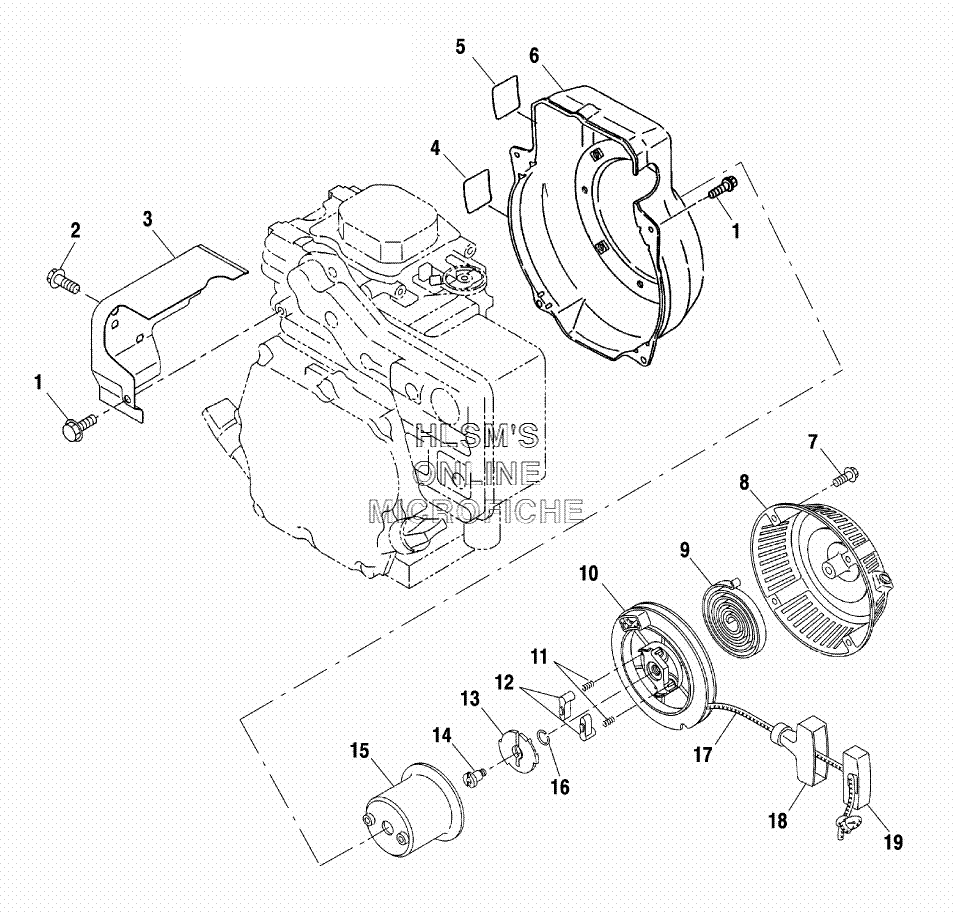

BLOWER HOUSING W/ RECOIL STARTER ASSEMBLY для Polaris 120 XC SP (S02WB1AS) - 2002 года выпуска`
-
№АртикулНазвание
-
13087256 BOLT, FLANGEBOLT, FLANGE
-
23086125 BOLT, FLANGEBOLT, FLANGE
-
33086622 COVER, HEADCOVER, HEAD
-
43086638 LABEL, CAUTIONLABEL, CAUTION
-
53086960 LABEL, WARNINGLABEL, WARNING
-
63086957 HOUSING, 2 BLOWERHOUSING, 2 BLOWER
-
73085359 BOLT, FLANGEBOLT, FLANGE
-
83086958 RECOIL STARTER (INCL. 7, 15)RECOIL STARTER (INCL. 7, 15)
-
93086625 SPRING, SPIRALSPRING, SPIRAL
-
103086626 REELREEL
-
113086865 SPRING, RETURNSPRING, RETURN
-
123086629 RATCHETRATCHET
-
133086632 GUIDE, RATCHETGUIDE, RATCHET
-
143086634 SCREW, SETSCREW, SET
-
153086959 PULLEY, STARTERPULLEY, STARTER
-
163086630 SPRING, FRICTIONSPRING, FRICTION
-
172870621 ROPE (100 FT, NYL.STARTER)ROPE (100 FT, NYL.STARTER)
-
183086628 KNOB, STARTERKNOB, STARTER
-
193086866 CAP, KNOBCAP, KNOB
Все узлы модели:
- • BLOWER HOUSING W/ RECOIL STARTER ASSEMBLY
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- CONSOLE W/WIRE HARNESS
- CRANKCASE ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- SPEED CONTROL - GOVERNOR
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - REAR
- TOOL KIT
- TUNNEL ASSEMBLY
