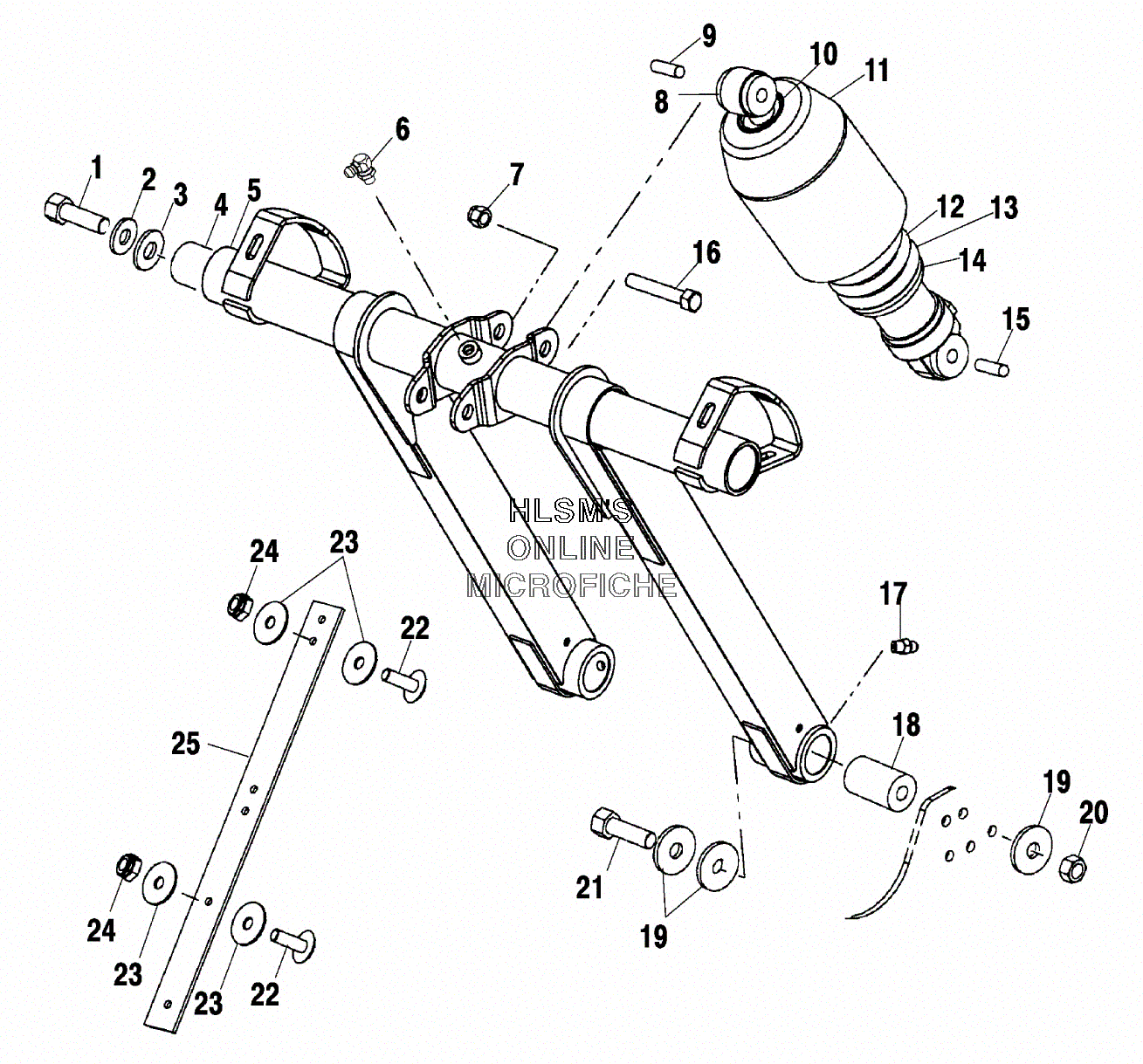

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris SUPERSPORT EDGE (BLACK) (S01NB5BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7517435 BOLT
    BOLT
  • 2
    7552603 WASHER
    WASHER
  • 3
    7555893 WASHER
    WASHER
  • 4
    5132067 SHAFT, FTA (UPPER)
    SHAFT, FTA (UPPER)
  • 5
    1541532-067 WELD TORQUE ARM, EDGE (BLACK/FRONT)
    WELD TORQUE ARM, EDGE (BLACK/FRONT)
  • 6
    7080510 FITTING, ZERK
    FITTING, ZERK
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    7041919 SHOCK, TRACK ARVIN (FRONT)
    SHOCK, TRACK ARVIN (FRONT)
  • 9
    5333905 SLEEVE, .385X.560X1.24
    SLEEVE, .385X.560X1.24
  • 10
    5630580 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 11
    5430671 SHIELD, SPRING
    SHIELD, SPRING
  • 12
    7041253-067 SPRING, COMP. (BLACK)
    SPRING, COMP. (BLACK)
  • 13
    5245067 RETAINER, SPRING GAB PLATED
    RETAINER, SPRING GAB PLATED
  • 14
    5210953 SPACER, SHOCK RETAINER
    SPACER, SHOCK RETAINER
  • 15
    5333906 SLEEVE, .385X.560X1.72
    SLEEVE, .385X.560X1.72
  • 16
    7515415 BOLT
    BOLT
  • 17
    7080424 FITTING, LUBE.
    FITTING, LUBE.
  • 18
    5132387 SHAFT, .453X.999X1.60
    SHAFT, .453X.999X1.60
  • 19
    7556156 WASHER
    WASHER
  • 20
    7547066 NUT, NYLOK
    NUT, NYLOK
  • 21
    7512597 BOLT
    BOLT
  • 22
    7517313 SCREW
    SCREW
  • 23
    7555959 WASHER
    WASHER
  • 24
    7542344 NUT, NYLOC
    NUT, NYLOC
  • 25
    5411971 STRAP, LIM (FRONT)
    STRAP, LIM (FRONT)
