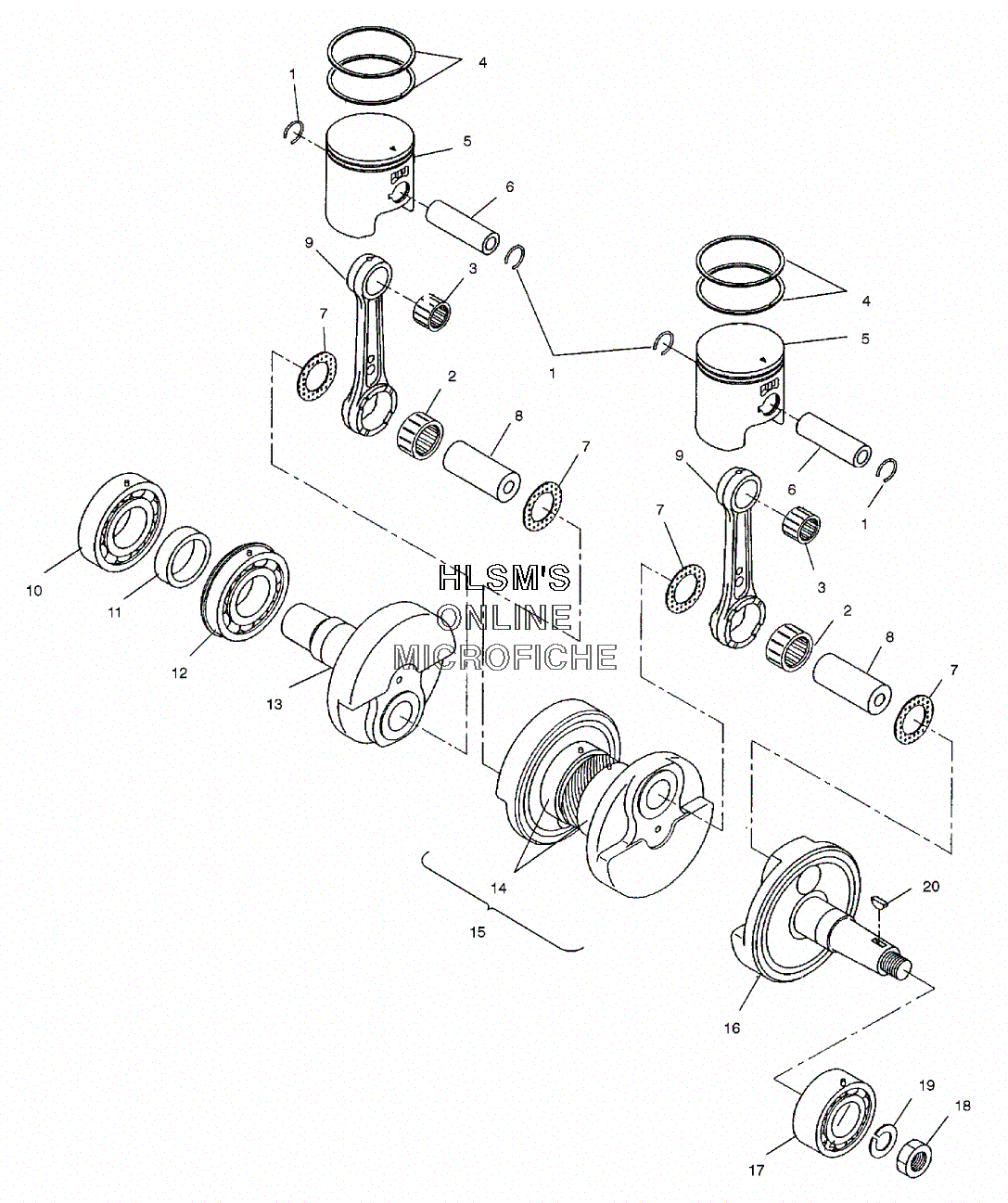

PISTON AND CRANKSHAFT для Polaris SUPERSPORT EDGE (BLACK) (S01NB5BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3084167 CLIP
    CLIP
  • 2
    3086390 BEARING-END, LARGE
    BEARING-END, LARGE
  • 3
    3083216 BEARING, SMALL END
    BEARING, SMALL END
  • 4
    3086988 RING, PISTON (STANDARD)
    RING, PISTON (STANDARD)
  • 4
    3086989 RING, PISTON (0.25MM/.010''O/S)
    RING, PISTON (0.25MM/.010''O/S)
  • 4
    3086990 RING, PISTON (0.50MM/.020''O/S)
    RING, PISTON (0.50MM/.020''O/S)
  • 5
    3087024 PISTON, SET (STANDARD)
    PISTON, SET (STANDARD)
  • 5
    3087025 PISTON, SET (0.25M/.010''O/S)
    PISTON, SET (0.25M/.010''O/S)
  • 5
    3087026 PISTON, SET (0.50M/.020''O/S)
    PISTON, SET (0.50M/.020''O/S)
  • 6
    3083838 PIN, PISTON
    PIN, PISTON
  • 7
    3083277 SPACER (CRANKPIN)
    SPACER (CRANKPIN)
  • 8
    3083456 PIN, CRANK, 2
    PIN, CRANK, 2
  • 9
    3240083 ROD, CONNECTING
    ROD, CONNECTING
  • 10
    3085754 BEARING, BALL
    BEARING, BALL
  • 11
    3085677 SPACER
    SPACER
  • 12
    3085753 BEARING, BALL
    BEARING, BALL
  • 13
    3085675 CRANKSHAFT #3 (PTO SIDE)
    CRANKSHAFT #3 (PTO SIDE)
  • 14
    3084586 BEARING, BALL
    BEARING, BALL
  • 15
    3085674 CRANKSHAFT #2 (INCL. 8)
    CRANKSHAFT #2 (INCL. 8)
  • 16
    3086389 CRANKSHAFT (INCL. 7-9, 10, 14-15)
    CRANKSHAFT (INCL. 7-9, 10, 14-15)
  • 16
    3085673 CRANKSHAFT #1 (MAG SIDE)
    CRANKSHAFT #1 (MAG SIDE)
  • 17
    3084681 BEARING, BALL
    BEARING, BALL
  • 18
    3083093 NUT
    NUT
  • 19
    3083094 WASHER, SPRING
    WASHER, SPRING
  • 20
    3080130 KEY WOODRUFF
    KEY WOODRUFF
