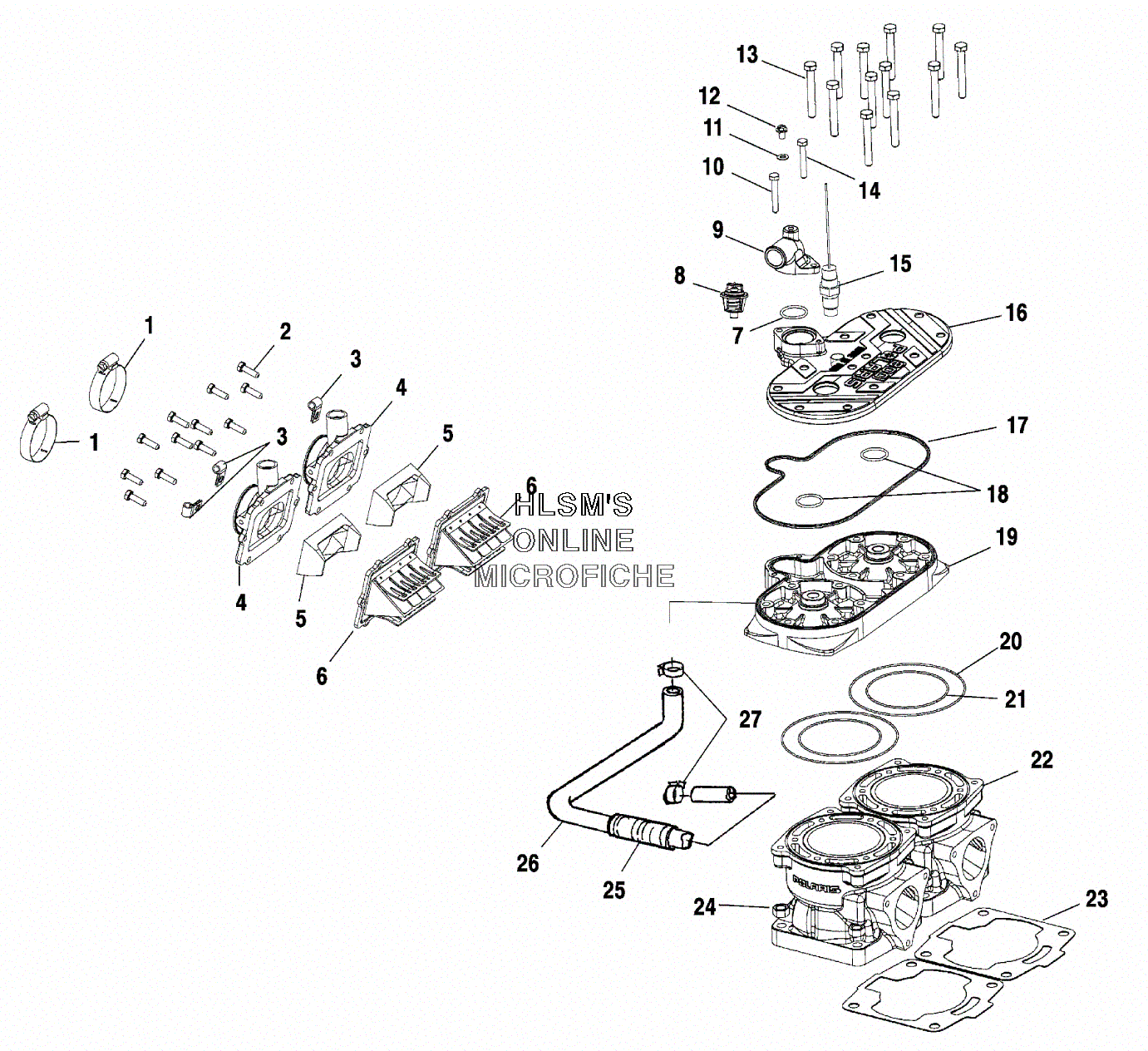

CYLINDER ASSEMBLY для Polaris 800 RMK 144'' (S01SM8BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7080681 CLAMP, HOSE
    CLAMP, HOSE
  • 2
    7517398 SCREW
    SCREW
  • 3
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    1253289 ADAPTER, CARB
    ADAPTER, CARB
  • 5
    5433151 STUFFER, REED BLOCK
    STUFFER, REED BLOCK
  • 6
    1201825 VALVE, REED ASSY.
    VALVE, REED ASSY.
  • 7
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 8
    7052258 THERMOSTAT (120ШF W/O BYPASS)
    THERMOSTAT (120ШF W/O BYPASS)
  • 9
    5630992 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 10
    7516822 SCREW
    SCREW
  • 11
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 12
    7517679 SCREW
    SCREW
  • 13
    7517534 SCREW
    SCREW
  • 14
    7516818 SCREW
    SCREW
  • 15
    4010614 SENSOR, THERMISTER
    SENSOR, THERMISTER
  • 16
    5631049-093 COVER, HOOD (85MM) (FIRE RED)
    COVER, HOOD (85MM) (FIRE RED)
  • 17
    5411294 SEAL, RUBBER HEAD
    SEAL, RUBBER HEAD
  • 18
    5410917 O-RING
    O-RING
  • 19
    3021294 HEAD, CYLINDER (85MM)
    HEAD, CYLINDER (85MM)
  • 20
    5410931 O-RING
    O-RING
  • 21
    5411675 O-RING
    O-RING
  • 22
    3021064 CYLINDER (85MM)
    CYLINDER (85MM)
  • 23
    5811784 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 24
    7547013 NUT
    NUT
  • 25
    5521398-96 CONDUIT, FLEX (.75''ID)
    CONDUIT, FLEX (.75''ID)
  • 26
    5411536 HOSE, BYPASS
    HOSE, BYPASS
  • 27
    7080810 CLAMP (3 TONG .810, .970)
    CLAMP (3 TONG .810, .970)
