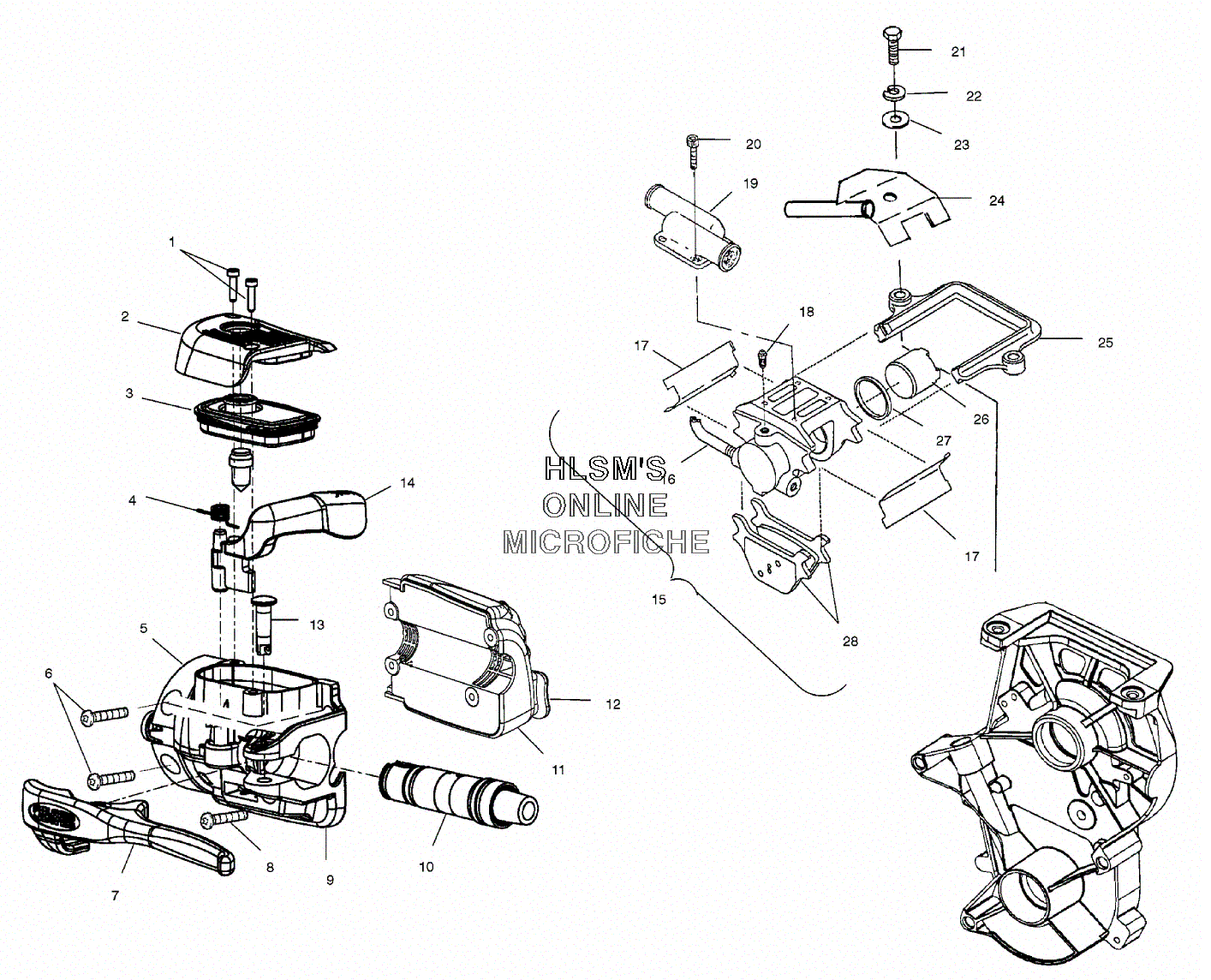

BRAKE ASSEMBLY для Polaris 800 RMK 144'' (S01SM8BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW KIT
    COVER SCREW KIT
  • 2
    2201255 COVER ASSY. (INCL. 1, 3)
    COVER ASSY. (INCL. 1, 3)
  • 4
    2201250 PARKLEVER SPRING KIT
    PARKLEVER SPRING KIT
  • 5
    2202146 CYLINDER ASSY.
    CYLINDER ASSY.
  • 6
    7517441 SCREW
    SCREW
  • 7
    2201943 LEVER KIT (3 NOTCH/PIN/RING)
    LEVER KIT (3 NOTCH/PIN/RING)
  • 8
    7517566 SCREW
    SCREW
  • 9
    2202146 CYLINDER ASSY.
    CYLINDER ASSY.
  • 9
    4010157 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 10
    2201248 CARTRIDGE SUB, ASSY. KIT (5/8'')
    CARTRIDGE SUB, ASSY. KIT (5/8'')
  • 11
    2010167 CONTROL ASSY., (LEFT) (BASIC)
    CONTROL ASSY., (LEFT) (BASIC)
  • 12
    5433291 BUTTON SWITCH HI/LO
    BUTTON SWITCH HI/LO
  • 13
    2201946 PIVOT PIN KIT, (ALUM W/SNAP RING)
    PIVOT PIN KIT, (ALUM W/SNAP RING)
  • 14
    2201251 PARKLEVER AND SPRING KIT, (INCL. 4)
    PARKLEVER AND SPRING KIT, (INCL. 4)
  • 15
    1910344 BRAKE CALIPER (INCL. 26, 27, 28)
    BRAKE CALIPER (INCL. 26, 27, 28)
  • 16
    1910313 LINE, BRAKE HYBRID
    LINE, BRAKE HYBRID
  • 17
    2200467 CLIP SPRING KIT (QTY. 2)
    CLIP SPRING KIT (QTY. 2)
  • 18
    1930735 INLET KIT
    INLET KIT
  • 19
    1930728 COOLER, WATER BRAKE
    COOLER, WATER BRAKE
  • 19
    2201024 GASKET, BRAKE COOLER
    GASKET, BRAKE COOLER
  • 20
    1930729 SCREW SET (PKG. OF 4)
    SCREW SET (PKG. OF 4)
  • 21
    7515521 BOLT
    BOLT
  • 22
    7552603 WASHER
    WASHER
  • 23
    7555806 WASHER
    WASHER
  • 24
    1012581 GUIDE, ROPE CHAINCASE Z
    GUIDE, ROPE CHAINCASE Z
  • 25
    1930733 CALIPER BRACKET KIT
    CALIPER BRACKET KIT
  • 26
    1930734 PISTON SEAL (INCL. 27)
    PISTON SEAL (INCL. 27)
  • 27
    2200466 SEAL
    SEAL
  • 28
    2201430 BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 17)
    BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 17)
