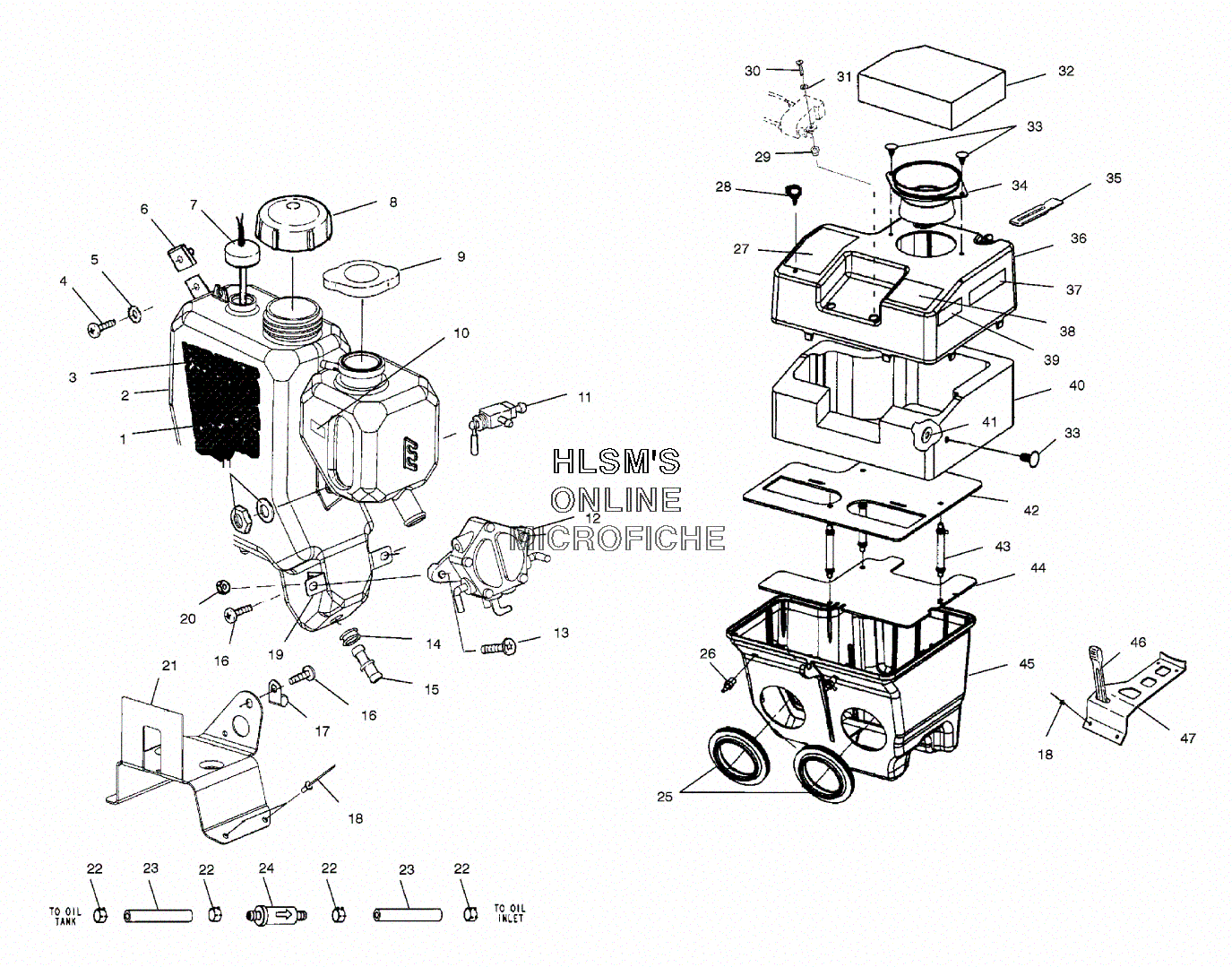

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 700 SKS (S01SS7AS) - 2001 года выпуска
-
№АртикулНазвание
-
17077442 DECAL, FUEL SHUT-OFFDECAL, FUEL SHUT-OFF
-
21253353 ASSY., OIL TANK W/FOIL, LIQASSY., OIL TANK W/FOIL, LIQ
-
35811934 FOIL, OIL TANKFOIL, OIL TANK
-
47512276 BOLTBOLT
-
57558302 WASHER, WROUGHTWASHER, WROUGHT
-
67670096 NUTNUT
-
74110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
81240094 CAP-OIL, VENTED/CUSTOM COLORCAP-OIL, VENTED/CUSTOM COLOR
-
92511270 CAP, PRESSURE (13 LB)CAP, PRESSURE (13 LB)
-
107078147 DECAL, SURGE TANK ''FULL COLD''DECAL, SURGE TANK ''FULL COLD''
-
137517455 SCREWSCREW
-
147052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
157052207 FITTING, STRAIGHT PRESS-INFITTING, STRAIGHT PRESS-IN
-
167517615 SCREWSCREW
-
177080884 CLIP, JCLIP, J
-
187661637 RIVET, INTERLOCK ,ZRIVET, INTERLOCK ,Z
-
195242680 BRACKET, FUEL PUMP MOUNT ZBRACKET, FUEL PUMP MOUNT Z
-
207542122 NUT-LOCKNUT-LOCK
-
215244339 BRACKET, OIL TANK W/BRIDGEBRACKET, OIL TANK W/BRIDGE
-
227080307 CLAMPCLAMP
-
238450003-1525 FUEL LINE, 1/4 ID (1525 CM.)FUEL LINE, 1/4 ID (1525 CM.)
-
242530009 FILTER, SMALL IN-LINEFILTER, SMALL IN-LINE
-
255411109 BOOT, CARBBOOT, CARB
-
267052127 FITTING, HOSEFITTING, HOSE
-
277075359 DECAL, COOL. SYSTEMDECAL, COOL. SYSTEM
-
287670102 CLIP, SILENCERCLIP, SILENCER
-
297541923 NUT, WELLNUT, WELL
-
307512279 SCREWSCREW
-
317552604 WASHERWASHER
-
322632132 DUCT, AIR INLET ASSY.DUCT, AIR INLET ASSY.
-
337670090 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
345433436 DUCT, AIR INLET SRPDUCT, AIR INLET SRP
-
355411075 RETAINER, TABRETAINER, TAB
-
365433420 SILENCER , INTAKE SRP (TOP)SILENCER , INTAKE SRP (TOP)
-
377073820 DECAL, ADJUST DRIVEN CLUTCHDECAL, ADJUST DRIVEN CLUTCH
-
387075351 DECAL, CAUTION, AIRBOXDECAL, CAUTION, AIRBOX
-
397073426 DECAL, GREASINGDECAL, GREASING
-
405811820 FOAM, AIRBOX, INTAKE SRP (TOP)FOAM, AIRBOX, INTAKE SRP (TOP)
-
417555798 WASHERWASHER
-
425811824 PLATE, SILENCER, INTAKE SRPPLATE, SILENCER, INTAKE SRP
-
435433437 CONNECTOR, PLATE SRPCONNECTOR, PLATE SRP
-
445811825 PLATE, SILENCER INTAKE (LOWER) SRPPLATE, SILENCER INTAKE (LOWER) SRP
-
455433454 SILENCER, INTAKE DRILLED SRPSILENCER, INTAKE DRILLED SRP
-
465411129 STRAP, TIE-DOWNSTRAP, TIE-DOWN
-
475241691 BRACKET,SILENCER MOUNT (LOWER)BRACKET,SILENCER MOUNT (LOWER)
