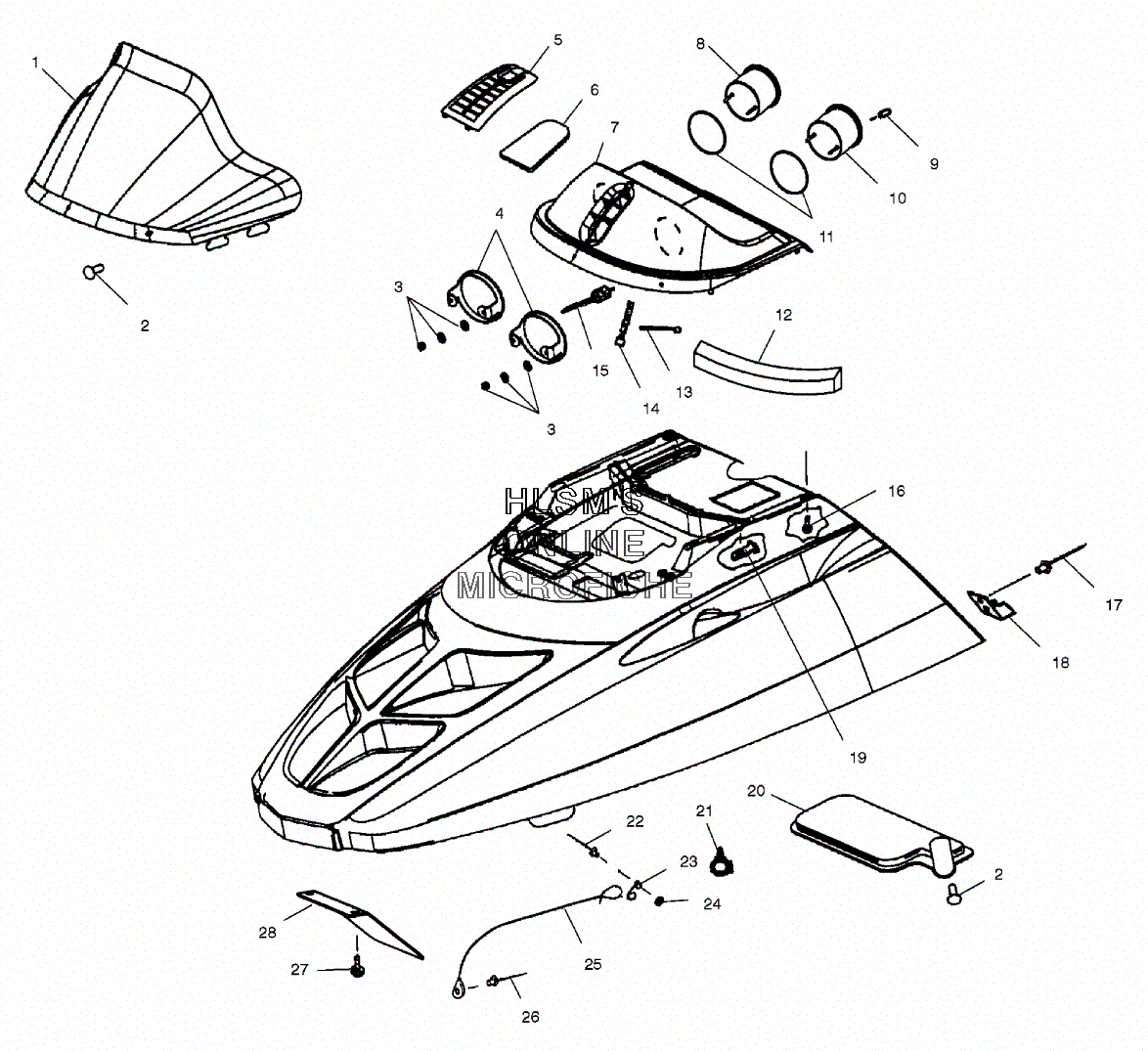

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 700 SKS (S01SS7AS) - 2001 года выпуска`
-
№АртикулНазвание
-
15433165 WINDSHIELD, GEN 2, FLR, 14'' SMOKEWINDSHIELD, GEN 2, FLR, 14'' SMOKE
-
27621509 RIVET, PLASTI-LOC.RIVET, PLASTI-LOC.
-
33280158 NUTNUT
-
33280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
33280157 WASHER, FLATWASHER, FLAT
-
43280210 BRACKET, TACH/SPEEDO, 5''BRACKET, TACH/SPEEDO, 5''
-
55433419 COVER-INTAKE, INSTR, HOUS, SRPCOVER-INTAKE, INSTR, HOUS, SRP
-
65811821 FOAM, PREFILTER, SRPFOAM, PREFILTER, SRP
-
72632106 ASSY., INSTR HOUSING, SRP, 45TH ANV (INCL. WARNING DECALS)ASSY., INSTR HOUSING, SRP, 45TH ANV (INCL. WARNING DECALS)
-
72632128 HOUSING, SRP, EURO, ASSY. (INCL. WARNING DECALS)HOUSING, SRP, EURO, ASSY. (INCL. WARNING DECALS)
-
83280308 TACH, 5'', 6 PULSE, W/FUEL LTTACH, 5'', 6 PULSE, W/FUEL LT
-
84030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
93280186 KNOB,TRIP ODOMETER, (LEFT) THD.KNOB,TRIP ODOMETER, (LEFT) THD.
-
103280304 SPEEDO ASSY., 5'',120MPH,90DEG.SPEEDO ASSY., 5'',120MPH,90DEG.
-
103280305 SPEEDO ASSY., 5'', 190KPH.SPEEDO ASSY., 5'', 190KPH.
-
104030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
113280209 CUSHION,TACH/SPEEDO,RUBBERCUSHION,TACH/SPEEDO,RUBBER
-
125811822 FOAM, HEADLIGHT/POD SEAL SRPFOAM, HEADLIGHT/POD SEAL SRP
-
137080138 STRAP PANDUITSTRAP PANDUIT
-
142460732 HARNESS, HEADLIGHT, G2 COMMONHARNESS, HEADLIGHT, G2 COMMON
-
153280341 CABLE, SPEEDO, 90 IN.CABLE, SPEEDO, 90 IN.
-
167517441 SCREWSCREW
-
177621334 RIVETRIVET
-
185430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
195410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
205433723 COVER, ACCESS, HEADLIGHT, SRPCOVER, ACCESS, HEADLIGHT, SRP
-
217080886 CLIP, ROSEBUD (GRAY)CLIP, ROSEBUD (GRAY)
-
227661084 RIVETRIVET
-
235242893 CLIP, PIGTAILCLIP, PIGTAIL
-
247555904 BURR, RIVETBURR, RIVET
-
257080764 CABLE, HOOD, HYB.CABLE, HOOD, HYB.
-
267621402 POP RIVETPOP RIVET
-
277512068 SCREWSCREW
-
285243393 DEFLECTOR, AIRDEFLECTOR, AIR
