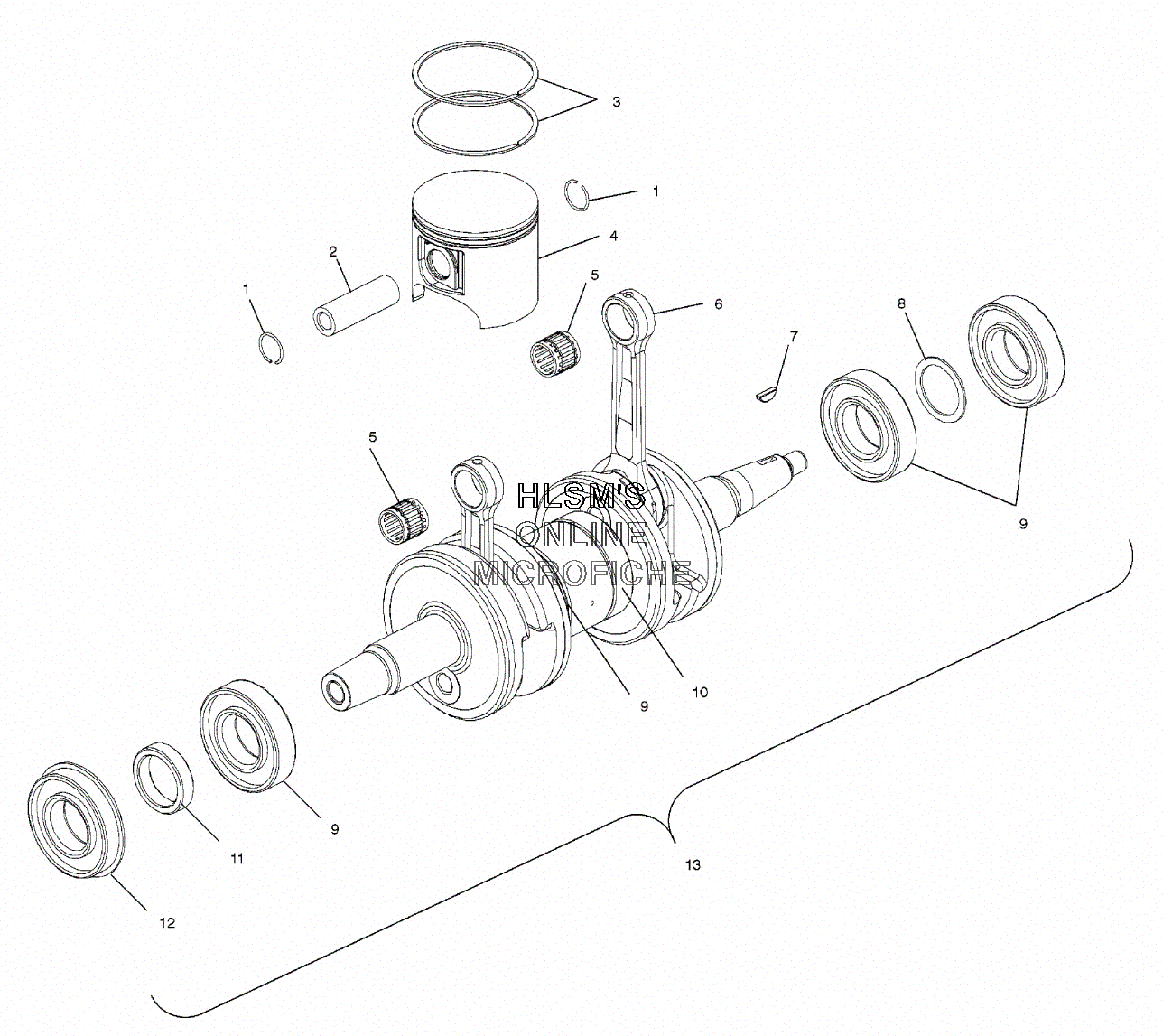

PISTON AND CRANKSHAFT для Polaris 700 CLASSIC (S01SD7AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3022950 CIRCLIP, PISTON, (20MM.)
    CIRCLIP, PISTON, (20MM.)
  • 3
    2200895 RINGS KIT, (81MM, SNO)
    RINGS KIT, (81MM, SNO)
  • 4
    2201358 PISTON ASSY. KIT, (INCL. 1, 2, 3)
    PISTON ASSY. KIT, (INCL. 1, 2, 3)
  • 5
    3584001 BEARING, CONNECT.ROD
    BEARING, CONNECT.ROD
  • 6
    2201022 CONN.ROD, MAPE KIT, (INCL. ROD, PIN, BEARING, WASHERS)
    CONN.ROD, MAPE KIT, (INCL. ROD, PIN, BEARING, WASHERS)
  • 7
    7721117 KEY, WOODRUFF
    KEY, WOODRUFF
  • 8
    7555905 BUSHING
    BUSHING
  • 9
    3585503 BEARING, BALL
    BEARING, BALL
  • 10
    3513522 BEARING, BALL
    BEARING, BALL
  • 11
    5131899 SPACER, CRANKSHAFT
    SPACER, CRANKSHAFT
  • 12
    3514310 BEARING, BALL, EXTRACE
    BEARING, BALL, EXTRACE
  • 13
    2201360 CRANKSHAFT, (2CYL, SNO, C GUIDE) (INCL. 8, 12)
    CRANKSHAFT, (2CYL, SNO, C GUIDE) (INCL. 8, 12)
