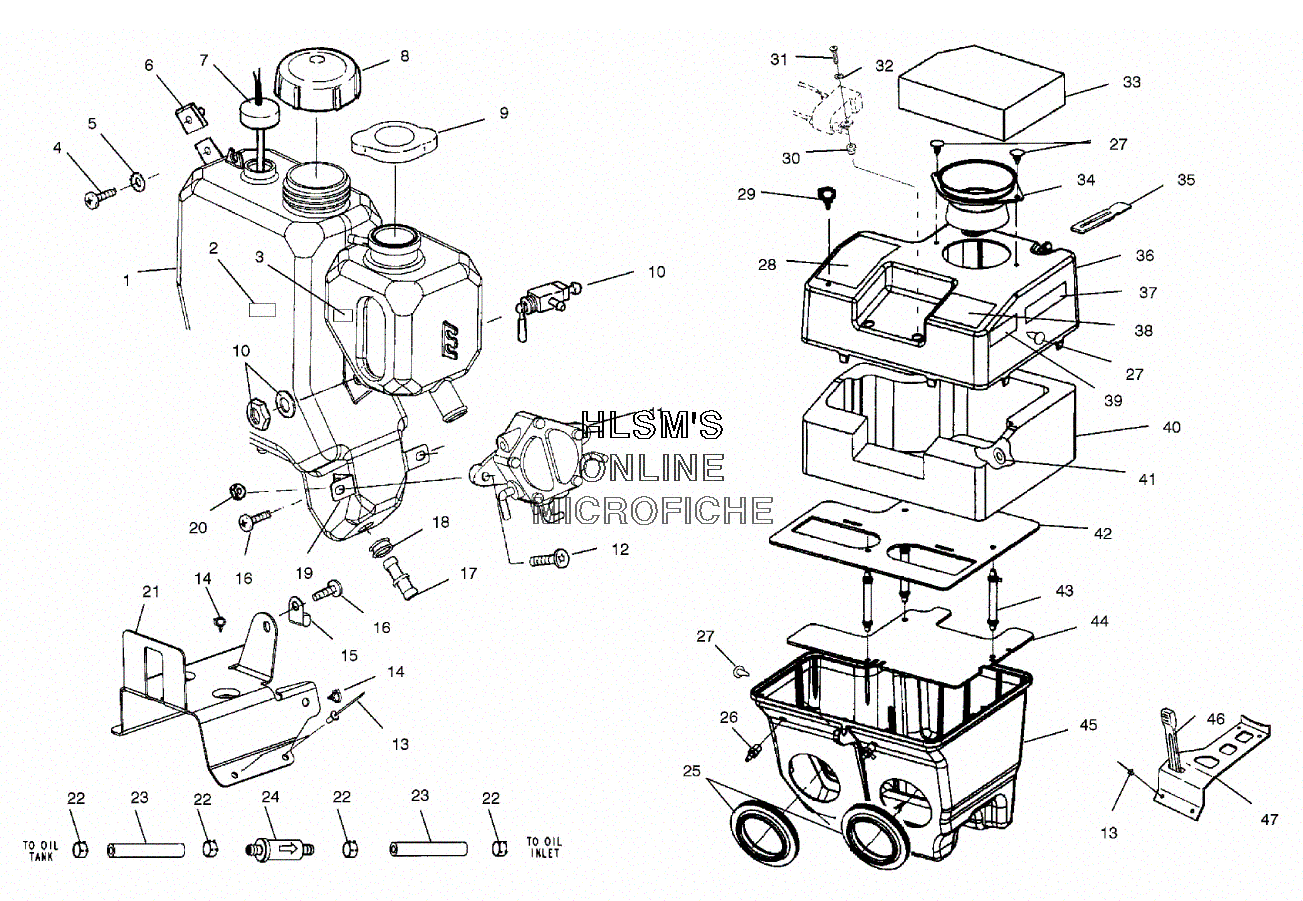

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 700 CLASSIC (S01SD7AS) - 2001 года выпуска
-
№АртикулНазвание
-
11253353 OIL TANK ASSY., W/FOIL, LIQOIL TANK ASSY., W/FOIL, LIQ
-
27077442 DECAL, FUEL SHUT, OFFDECAL, FUEL SHUT, OFF
-
37078147 DECAL, SURGE TANK, ''FULL COLD''DECAL, SURGE TANK, ''FULL COLD''
-
47512276 BOLTBOLT
-
57558302 WASHER, WROUGHTWASHER, WROUGHT
-
67670096 NUTNUT
-
74110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
81240094 CAP, OIL, VENTED/CUSTOM COLORCAP, OIL, VENTED/CUSTOM COLOR
-
92511270 CAP, PRESSURE, (13 LB)CAP, PRESSURE, (13 LB)
-
127517455 SCREWSCREW
-
137661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
144020139 CLIP, PLASTICCLIP, PLASTIC
-
157080367 CLAMP, CABLECLAMP, CABLE
-
167517615 SCREWSCREW
-
177052207 FITTING, STRAIGHT, PRESS, INFITTING, STRAIGHT, PRESS, IN
-
187052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
195242680 BRACKET, FUEL PUMP MOUNT, ZBRACKET, FUEL PUMP MOUNT, Z
-
207542122 NUT, LOCKNUT, LOCK
-
215244339 BRACKET, OIL TANK W/BRIDGEBRACKET, OIL TANK W/BRIDGE
-
227080307 CLAMPCLAMP
-
238450003-1525 FUEL LINE, 1/4 ID (1525 CM.)FUEL LINE, 1/4 ID (1525 CM.)
-
242530009 FILTER, SMALL, IN, LINEFILTER, SMALL, IN, LINE
-
255411109 BOOT, CARBBOOT, CARB
-
267052127 FITTING, HOSEFITTING, HOSE
-
277670090 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
287075359 DECAL, COOL. SYSTEMDECAL, COOL. SYSTEM
-
297670102 CLIP, SILENCERCLIP, SILENCER
-
307541923 NUT, WELLNUT, WELL
-
317512279 SCREWSCREW
-
327552604 WASHERWASHER
-
332632132 DUCT, AIR INLET, ASSY.DUCT, AIR INLET, ASSY.
-
345433436 DUCT, AIR INLET, (SRP)DUCT, AIR INLET, (SRP)
-
355411075 RETAINER, TABRETAINER, TAB
-
365433420 SILENCER TOP, INTAKE, (SRP)SILENCER TOP, INTAKE, (SRP)
-
377073820 DECAL, ADJ.DRIVEN CLUTCHDECAL, ADJ.DRIVEN CLUTCH
-
387075351 DECAL, CAUTION, AIRBOXDECAL, CAUTION, AIRBOX
-
397073426 DECAL, GREASINGDECAL, GREASING
-
405811820 FOAM, AIRBOX, (TOP, INTAKE, SRP)FOAM, AIRBOX, (TOP, INTAKE, SRP)
-
417555798 WASHERWASHER
-
425811824 PLATE, SILENCER, (INTAKE, SRP)PLATE, SILENCER, (INTAKE, SRP)
-
435433437 CONNECTOR, PLATE, (SRP)CONNECTOR, PLATE, (SRP)
-
445811825 PLATE, SILENCER INTAKE, (LWR SRP)PLATE, SILENCER INTAKE, (LWR SRP)
-
455433454 SILENCER, INTAKE, (DRILLED, SRP)SILENCER, INTAKE, (DRILLED, SRP)
-
465411129 STRAP, TIE, DOWNSTRAP, TIE, DOWN
-
475243729 BRACKET, SILENCER MOUNT, (LOWER)BRACKET, SILENCER MOUNT, (LOWER)
