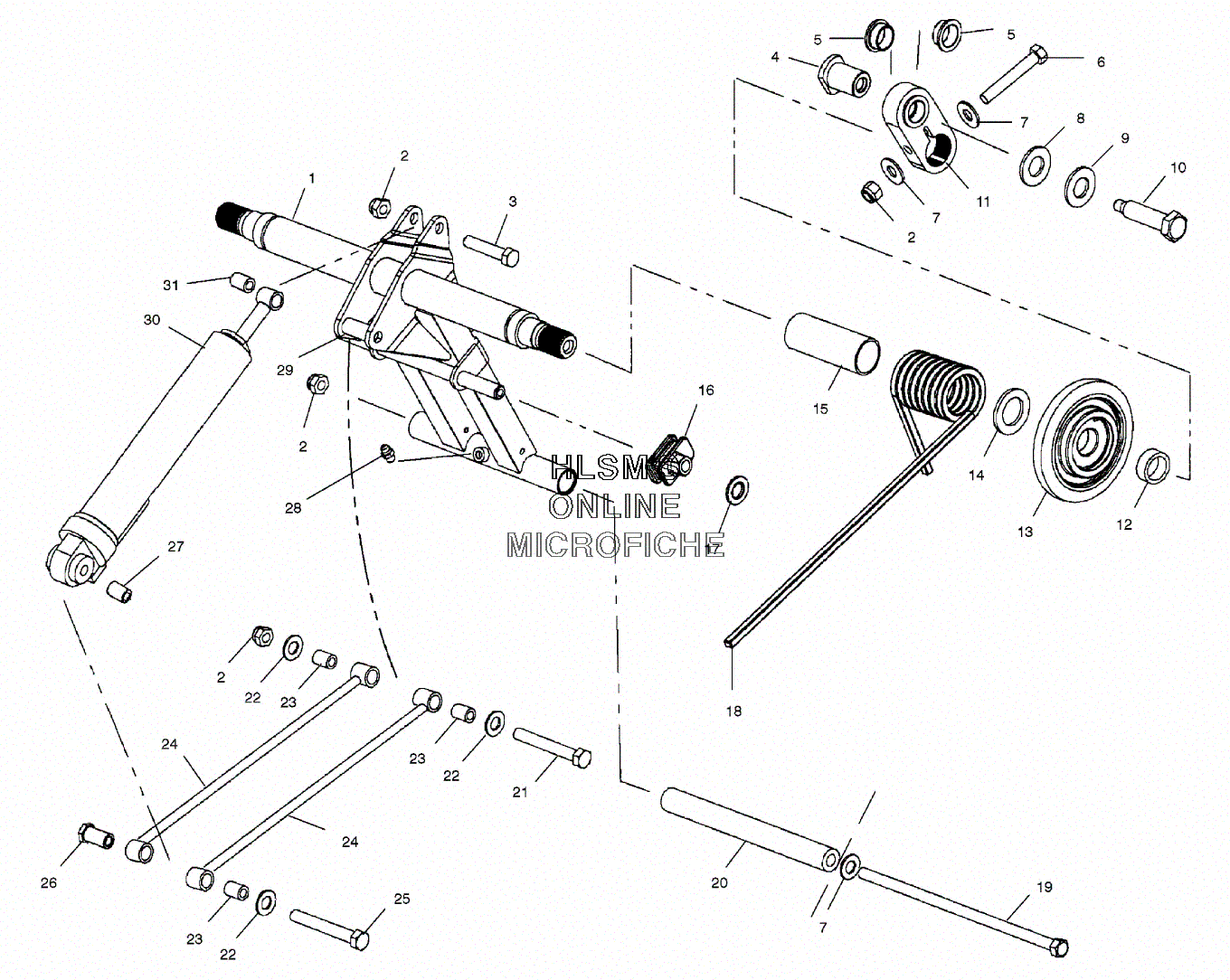

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 XC SP (RED) (S01NP6ES) - 2001 года выпуска
-
№АртикулНазвание
-
11541561-293 WELD, REAR TORQUE ARM, (RED)WELD, REAR TORQUE ARM, (RED)
-
27542439 NUT, NYLOKNUT, NYLOK
-
37515540 BOLTBOLT
-
45333758 SHAFT, ARMSHAFT, ARM
-
53514331 BUSHING, ARMBUSHING, ARM
-
67515415 BOLTBOLT
-
77555806 WASHERWASHER
-
87555893 WASHERWASHER
-
97552603 WASHERWASHER
-
107517435 BOLTBOLT
-
111541461 ARM, ASSY., RTA (INCL. 5)ARM, ASSY., RTA (INCL. 5)
-
125132388 SPACER, WHEELSPACER, WHEEL
-
131590278 WHEEL ASSY., PLAIN, (BLACK)WHEEL ASSY., PLAIN, (BLACK)
-
147555871 WASHER, REVERSEWASHER, REVERSE
-
155431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
165432983 ROLLER, SPRING, ADJ, SQUARE, X10ROLLER, SPRING, ADJ, SQUARE, X10
-
177080394 CLIPCLIP
-
187041942-067 SPRING, TORS, (LEFT) (375/77) (STD)SPRING, TORS, (LEFT) (375/77) (STD)
-
187041943-067 SPRING, TORS, (RIGHT) (375/77) (STD)SPRING, TORS, (RIGHT) (375/77) (STD)
-
187041629-067 SPRING, TORS, (LEFT/BLACK) (.359/77) (OPT)SPRING, TORS, (LEFT/BLACK) (.359/77) (OPT)
-
187041630-067 SPRING, TORS, (RIGHT/BLACK) (.359/77) (OPT)SPRING, TORS, (RIGHT/BLACK) (.359/77) (OPT)
-
187041940-067 SPRING, TORS, (LEFT/BLACK) (.405/77) (OPT)SPRING, TORS, (LEFT/BLACK) (.405/77) (OPT)
-
187041941-067 SPRING, TORS, (RIGHT/BLACK) (.405/77) (OPT)SPRING, TORS, (RIGHT/BLACK) (.405/77) (OPT)
-
197517232 SCREWSCREW
-
205333873 SHAFT, (.740X.390X7.055-6066)SHAFT, (.740X.390X7.055-6066)
-
217515514 BOLTBOLT
-
227555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
235132391 BUSHING, (.378X.616X1.12)BUSHING, (.378X.616X1.12)
-
241541479-067 SHOCK ROD, (12.850, BLACK)SHOCK ROD, (12.850, BLACK)
-
257517851 SCREW, (3/8, 24X3.75, HX/P, 80, GR8Y)SCREW, (3/8, 24X3.75, HX/P, 80, GR8Y)
-
265132390 BUSHING, NUT (.616X1.12X.875)BUSHING, NUT (.616X1.12X.875)
-
275333907 SLEEVE, (.385X.560X1.30)SLEEVE, (.385X.560X1.30)
-
287080424 FITTING, LUBE.FITTING, LUBE.
-
295333904 SPACER, (.397X.562X1.250)SPACER, (.397X.562X1.250)
-
307041846 SHOCK, R/T, FOX, PPSSHOCK, R/T, FOX, PPS
-
315010422 BUSHINGBUSHING
