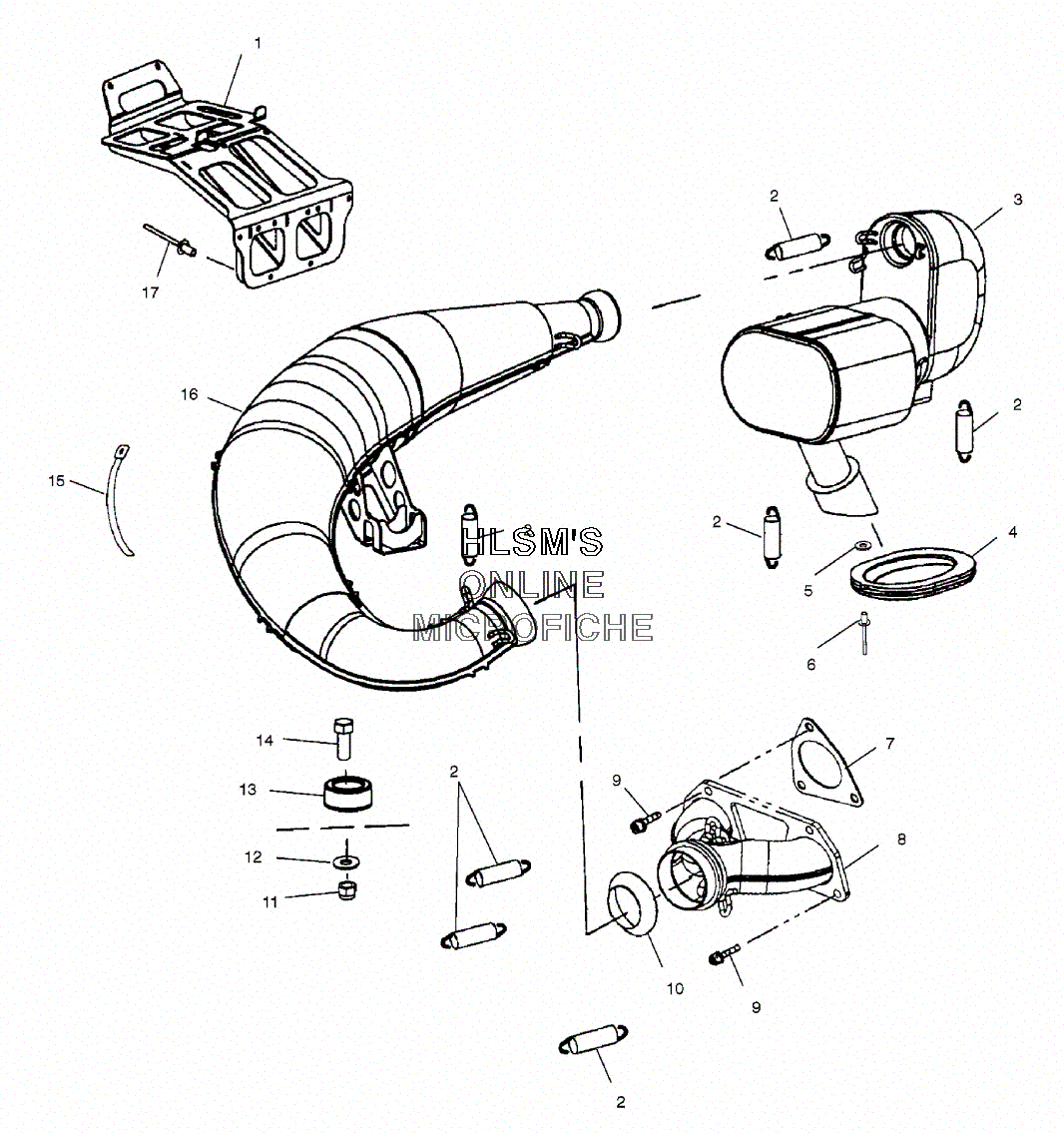

EXHAUST SYSTEM для Polaris 600 XC SP (RED) (S01NP6ES) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1261157-029 WELD, BRACKET CHASSIS/RESONATOR, BK
    WELD, BRACKET CHASSIS/RESONATOR, BK
  • 2
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 3
    1261009-029 RESONATOR, (BLACK)
    RESONATOR, (BLACK)
  • 4
    5411684 BOOT, EXHAUST, OUTLET
    BOOT, EXHAUST, OUTLET
  • 5
    7555904 BURR, RIVET
    BURR, RIVET
  • 6
    7661084 RIVET (3/16 .251, .375)
    RIVET (3/16 .251, .375)
  • 7
    5811838 GASKET, EXHST (440 BASE 500/600)
    GASKET, EXHST (440 BASE 500/600)
  • 8
    1261046-029 MANIFOLD, (BLACK)
    MANIFOLD, (BLACK)
  • 9
    7517322 SCREW
    SCREW
  • 10
    3610046 SEAL, EXH.SOCKET
    SEAL, EXH.SOCKET
  • 11
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 12
    7555788 WASHER, THRUST
    WASHER, THRUST
  • 13
    5433576 DAMPENER, VIBRATIONS
    DAMPENER, VIBRATIONS
  • 14
    7515440 BOLT
    BOLT
  • 15
    7080812 CLAMP, WORM DRIVE, (.44WX3.75 DIA)
    CLAMP, WORM DRIVE, (.44WX3.75 DIA)
  • 15
    7080813 CLAMP, WORM DRIVE, (.44WX4.25 DIA)
    CLAMP, WORM DRIVE, (.44WX4.25 DIA)
  • 15
    7080811 CLAMP, WORM DRIVE, (.44WX6.50 DIA)
    CLAMP, WORM DRIVE, (.44WX6.50 DIA)
  • 16
    1261007 TUNED PIPE, ASSY.
    TUNED PIPE, ASSY.
  • 16
    5244398 COVER, TUNED PIPE, TOP
    COVER, TUNED PIPE, TOP
  • 16
    5244399 COVER, TUNED PIPE, BOTTOM
    COVER, TUNED PIPE, BOTTOM
  • 16
    5830198 MATTE, SOUND
    MATTE, SOUND
  • 16
    5830207 MATTE, SOUND TOP
    MATTE, SOUND TOP
  • 17
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
