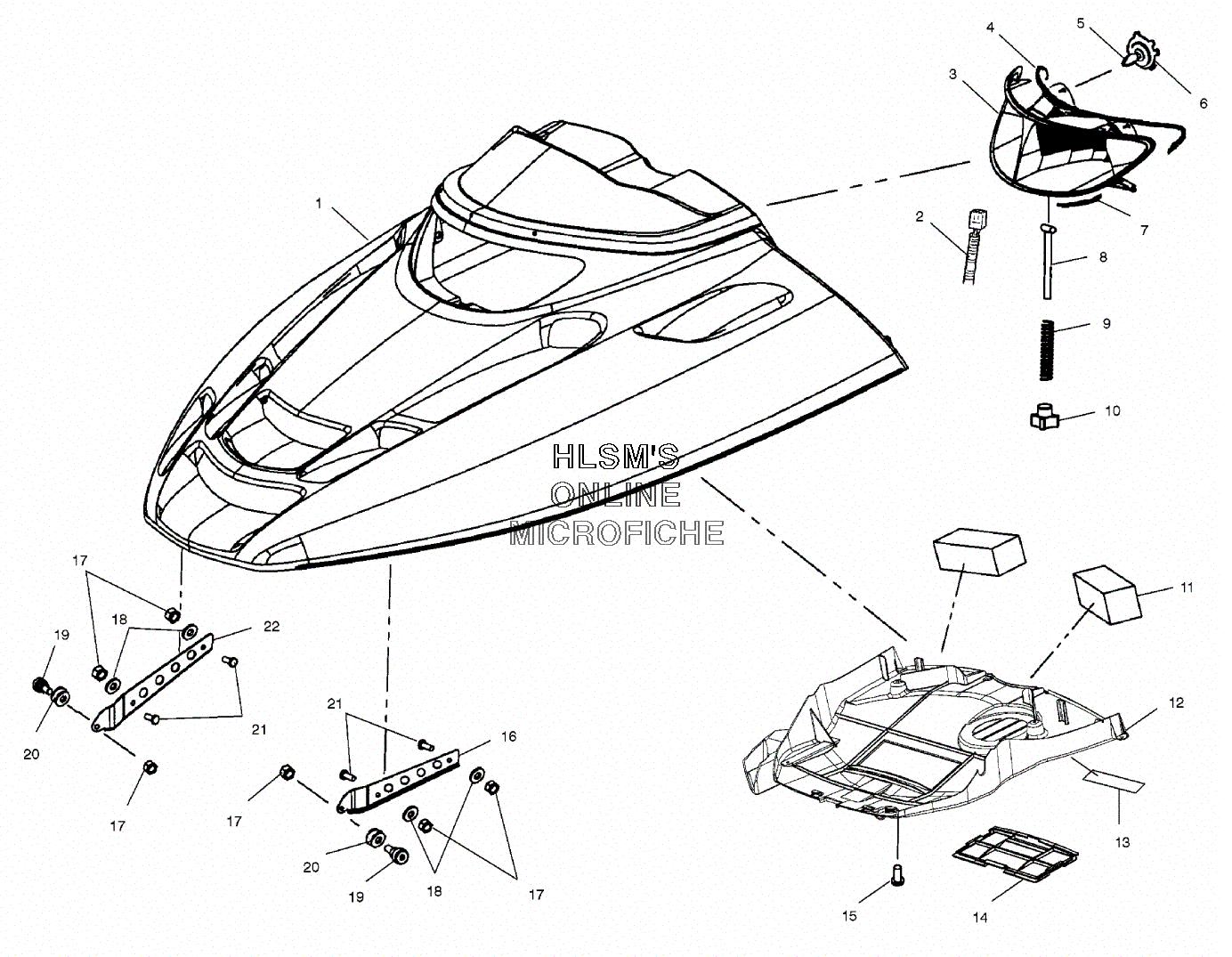

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 600 XC SP (EDGE X) (S01NP6ESX) - 2001 года выпуска`
-
№АртикулНазвание
-
12632521-293 HOOD ASSY., EDGE, (2H, SVC, RED)HOOD ASSY., EDGE, (2H, SVC, RED)
-
22460791 HARNESS, HDLGHT, EDGE, COMMONHARNESS, HDLGHT, EDGE, COMMON
-
32410132 HEADLAMP ASSY., 2, BULB EDGE (INCL. BULBS)HEADLAMP ASSY., 2, BULB EDGE (INCL. BULBS)
-
45812175 FOAM, HEADLIGHT SEAL EDGE, TOPFOAM, HEADLIGHT SEAL EDGE, TOP
-
52870448 BULB, QUARTZ.H/L, INDYBULB, QUARTZ.H/L, INDY
-
64032063 RETAINER, H/L BULBRETAINER, H/L BULB
-
75812174 FOAM, HEADLIGHT SEAL EDGE, BOTFOAM, HEADLIGHT SEAL EDGE, BOT
-
87517872 BOLT, TEE ADJUSTER, (2.25)BOLT, TEE ADJUSTER, (2.25)
-
97041954 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
107080887 KNOB, HEADLIGHT, ADJUST, LOCKING BKNOB, HEADLIGHT, ADJUST, LOCKING B
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
125433516 PLENUM, HOOD INTAKEPLENUM, HOOD INTAKE
-
137079197 DECAL, SUSP.SET, UP, EDGEDECAL, SUSP.SET, UP, EDGE
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165243567-067 HINGE, UPPER, (LEFT) , (BLACK)HINGE, UPPER, (LEFT) , (BLACK)
-
177542122 NUT, LOCKNUT, LOCK
-
187558301 WASHERWASHER
-
197512113 SCREWSCREW
-
205332403 SPACER, HINGESPACER, HINGE
-
217512240 BOLTBOLT
-
225243568-067 HINGE, UPPER, (RIGHT) , (BLACK)HINGE, UPPER, (RIGHT) , (BLACK)
