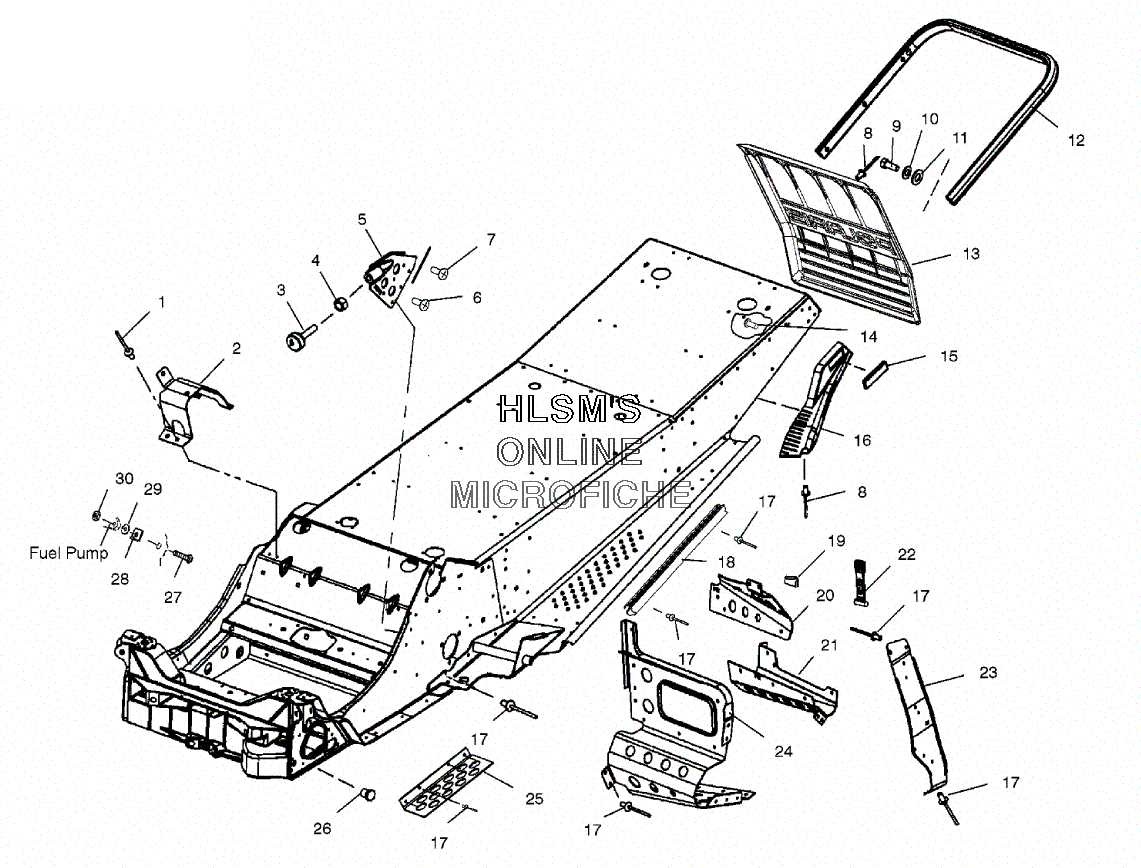

FRAME - CHASSIS для Polaris 600 XC SP (EDGE X) (S01NP6ESX) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1C
    1013394-1124 CHASSIS ASSY., EDGE X, NAT/YELLOW
    CHASSIS ASSY., EDGE X, NAT/YELLOW
  • 1
    7621453 RIVET
    RIVET
  • 2
    5245003 BRACKET, JACKSHAFT, SHIELD
    BRACKET, JACKSHAFT, SHIELD
  • 3
    3021104 STOP, TORQUE COURSE (3/8, 16)
    STOP, TORQUE COURSE (3/8, 16)
  • 4
    7542404 NUT
    NUT
  • 5
    1013379 WELD, TOQUE STOP, (S44)
    WELD, TOQUE STOP, (S44)
  • 6
    7517854 SCREW, (3/8, 16X1, P30, SPEC, Y)
    SCREW, (3/8, 16X1, P30, SPEC, Y)
  • 7
    7517632 SCREW
    SCREW
  • 8
    7621472 RIVET
    RIVET
  • 9
    7512240 BOLT
    BOLT
  • 10
    7552801 LOCK WASHER
    LOCK WASHER
  • 11
    7558301 WASHER
    WASHER
  • 12
    2632165-216 REAR BUMPER, ASSY., (SCR YLW)
    REAR BUMPER, ASSY., (SCR YLW)
  • 13
    5433979 FLAP, SNOW, EDGE
    FLAP, SNOW, EDGE
  • 14
    7517441 SCREW
    SCREW
  • 15
    2670133 REFLECTOR ASSY., (RED)
    REFLECTOR ASSY., (RED)
  • 16
    5433519-070 SKIRT, SNOW, EDGE, (LEFT) , (BLACK)
    SKIRT, SNOW, EDGE, (LEFT) , (BLACK)
  • 16
    2632444-070 SNOWSKIRT/REFL ASSY., (RIGHT, BLACK)
    SNOWSKIRT/REFL ASSY., (RIGHT, BLACK)
  • 17
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 18
    2873059-216 GRIP, TUNNEL ROLL, (SCR YLW)
    GRIP, TUNNEL ROLL, (SCR YLW)
  • 19
    5521238 EXTRUSION, CLUTCHGUARD
    EXTRUSION, CLUTCHGUARD
  • 20
    5243939 MOUNT, CONSOLE, (LEFT)
    MOUNT, CONSOLE, (LEFT)
  • 20
    5243940 MOUNT, CONSOLE, (RIGHT)
    MOUNT, CONSOLE, (RIGHT)
  • 21
    5243153 FOOTREST UPPER, TOE CLIP, (LEFT)
    FOOTREST UPPER, TOE CLIP, (LEFT)
  • 21
    5243154 FOOTREST UPPER, TOE CLIP, (RIGHT)
    FOOTREST UPPER, TOE CLIP, (RIGHT)
  • 22
    5433150 STRAP, RUBBER
    STRAP, RUBBER
  • 23
    5246310 SUPPORT, FOOTREST, (LEFT)
    SUPPORT, FOOTREST, (LEFT)
  • 23
    5242742 SUPPORT, FOOTREST, (RIGHT)
    SUPPORT, FOOTREST, (RIGHT)
  • 24
    5245288 FOOTREST, (LEFT) , (.080)
    FOOTREST, (LEFT) , (.080)
  • 24
    5242740 FOOTREST, (RIGHT)
    FOOTREST, (RIGHT)
  • 25
    5245066 GUARD, BELT, EDGE
    GUARD, BELT, EDGE
  • 26
    7080416 PLUG, HOLE
    PLUG, HOLE
  • 27
    7512275 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 28
    7670021 SPEED NUT
    SPEED NUT
  • 29
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 30
    7542122 NUT, LOCK
    NUT, LOCK
