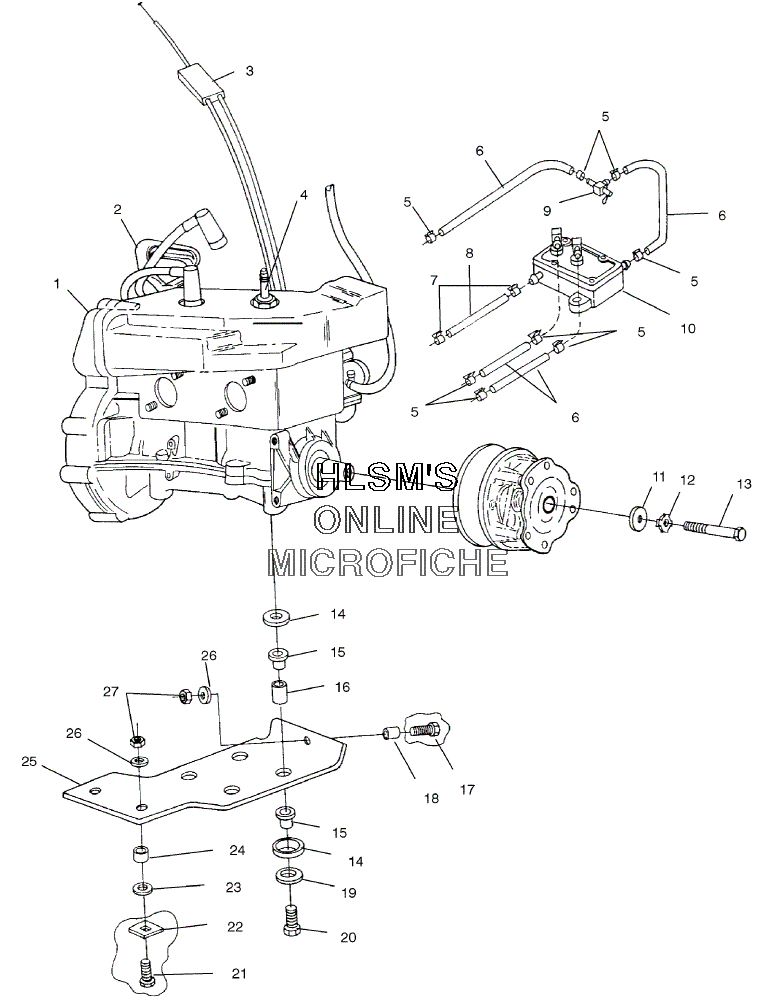

ENGINE MOUNTING W/ SHORT BLOCK для Polaris INDY 340 DELUXE (S00LD3AS) - 2000 года выпуска`
-
№АртикулНазвание
-
13084620 ENGINE. (SHORT BLOCK) (SEE FOOTNOTE)ENGINE. (SHORT BLOCK) (SEE FOOTNOTE)
-
25431499 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
37080557 CABLE, THROTTLECABLE, THROTTLE
-
43070156 SPARKPLUGSPARKPLUG
-
57080307 CLAMP, HOSECLAMP, HOSE
-
68350018-600 TUBING, ETHER ERETHANE (160CM)TUBING, ETHER ERETHANE (160CM)
-
77080003 CLAMP, HOSECLAMP, HOSE
-
88450040-600 FUEL LINE (1/4 ID, 600 CM.)FUEL LINE (1/4 ID, 600 CM.)
-
97052060 VALVE, FUEL SHUT-OFFVALVE, FUEL SHUT-OFF
-
115010278 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
127575202 WASHER LOCKWASHER LOCK
-
137512566 BOLTBOLT
-
145221901 CAPCAP
-
155410320 DAMPNER, VIB.DAMPNER, VIB.
-
165010163 BUSHING, MOTOR MOUNTBUSHING, MOTOR MOUNT
-
177515503 BOLTBOLT
-
185020840 BUSHING, THREADEDBUSHING, THREADED
-
197553101 WASHER LOCKWASHER LOCK
-
207512515 BOLTBOLT
-
217515510 BOLTBOLT
-
225211201 PLATE, SPACERPLATE, SPACER
-
237555823 WASHERWASHER
-
245020562 BUSHING, THREADEDBUSHING, THREADED
-
255224836 PLATE, MOTOR MOUNT, W/HOLEPLATE, MOTOR MOUNT, W/HOLE
-
267555761 WASHERWASHER
-
277542403 NUT LOCKNUT LOCK
