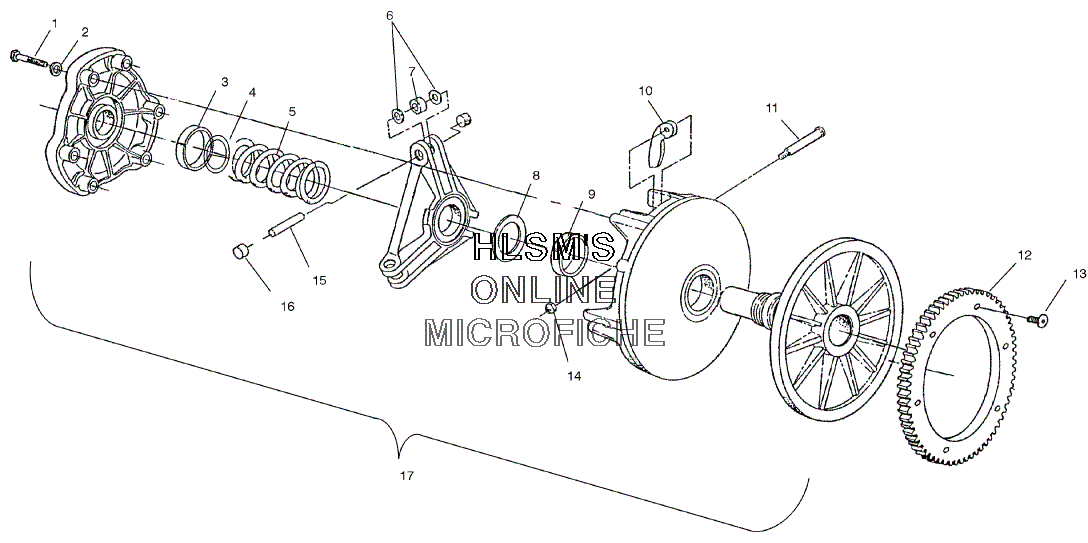

CLUTCH - DRIVE для Polaris INDY 340 DELUXE (S00LD3AS) - 2000 года выпуска`
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK WASHERLOCK WASHER
-
33576516 COVER, BEARING, GARMAXCOVER, BEARING, GARMAX
-
47710417 RING, RETAINING, BOLTRING, RETAINING, BOLT
-
57041286 SPRING, CLUTCH (SILVER/GOLD)SPRING, CLUTCH (SILVER/GOLD)
-
65430945 WASHERWASHER
-
71321457 ROLLER/BUSHING ASSY.ROLLER/BUSHING ASSY.
-
85210752 SPACER (.020'')SPACER (.020'')
-
85210753 SPACER (.032'')SPACER (.032'')
-
85210754 SPACER (.050'')SPACER (.050'')
-
85242981 SPACER (.025'')SPACER (.025'')
-
93576504 BUSHING, DRIVENBUSHING, DRIVEN
-
105630272 WT/BUSH. ASSY.WT/BUSH. ASSY.
-
117515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
125131062 GEAR, RINGGEAR, RING
-
137515351 BOLT, RING GEARBOLT, RING GEAR
-
147541906 NUT FLEX LOCNUT FLEX LOC
-
155020422 PIN, ROLLERPIN, ROLLER
-
165430728 BUTTON, GUIDEBUTTON, GUIDE
-
171321596 CLUTCH, BASIC, #42 (DRIVE) (INCL. 1-3, 6-9, 11, 14)CLUTCH, BASIC, #42 (DRIVE) (INCL. 1-3, 6-9, 11, 14)
-
172200386 CLUTCH UPDATE, KIT (INCL. 6, 7, 11, 15, 16)CLUTCH UPDATE, KIT (INCL. 6, 7, 11, 15, 16)
