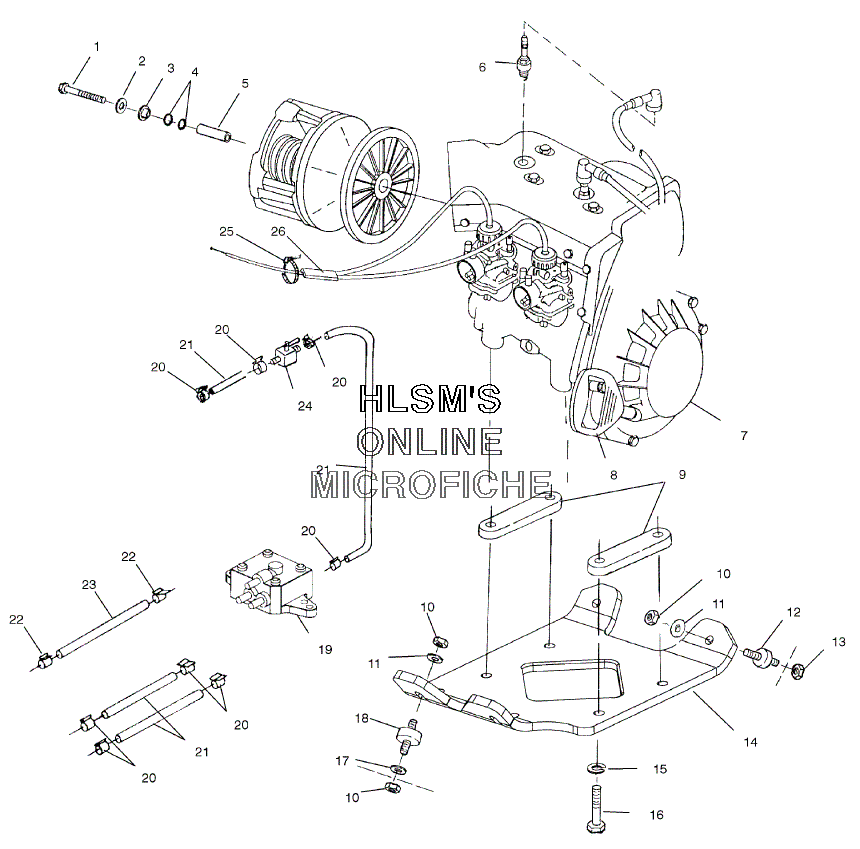

ENGINE MOUNTING W/ SHORT BLOCK для Polaris EURO WIDETRAK LX (E01SU4BU) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7517529 SCREW
    SCREW
  • 2
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 3
    5010287 WASHER, CLUTCH RETAIN
    WASHER, CLUTCH RETAIN
  • 4
    5410507 O-RING
    O-RING
  • 5
    5020513 SPACER, CLUTCH BOLT
    SPACER, CLUTCH BOLT
  • 6
    3070163 SPARKPLUG (BR9ES)
    SPARKPLUG (BR9ES)
  • 7
    3085618 ENGINE, SHORT BLOCK
    ENGINE, SHORT BLOCK
  • 8
    5431499-070 HANDLE, RECOIL (BLACK)
    HANDLE, RECOIL (BLACK)
  • 9
    5243195 SPACER, ENGINE (.50)
    SPACER, ENGINE (.50)
  • 10
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 11
    7555893 WASHER
    WASHER
  • 12
    3021099 MOUNT, ENGINE (3/8, 16, 3, TAB)
    MOUNT, ENGINE (3/8, 16, 3, TAB)
  • 13
    7542402 NUT, FLEX LOC
    NUT, FLEX LOC
  • 14
    5132001 PLATE, MOTOR MOUNT
    PLATE, MOTOR MOUNT
  • 15
    7553101 WASHER, LOCK
    WASHER, LOCK
  • 16
    7517442 BOLT
    BOLT
  • 17
    7555915 WASHER, FLAT
    WASHER, FLAT
  • 18
    3110062 MOUNT, ENGINE
    MOUNT, ENGINE
  • 20
    7080307 CLAMP
    CLAMP
  • 21
    8350018-160 TUBING, ETHER ERETHNE (160CM) (OPT)
    TUBING, ETHER ERETHNE (160CM) (OPT)
  • 22
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    8450040-600 FUEL LINE, (1/4 ID 600 CM.) (OPT)
    FUEL LINE, (1/4 ID 600 CM.) (OPT)
  • 24
    7052219 VALVE, FUEL SHUT OFF FAN
    VALVE, FUEL SHUT OFF FAN
  • 25
    7080138 STRAP, PANDUIT
    STRAP, PANDUIT
  • 26
    7080776 CABLE, THROTTLE
    CABLE, THROTTLE
