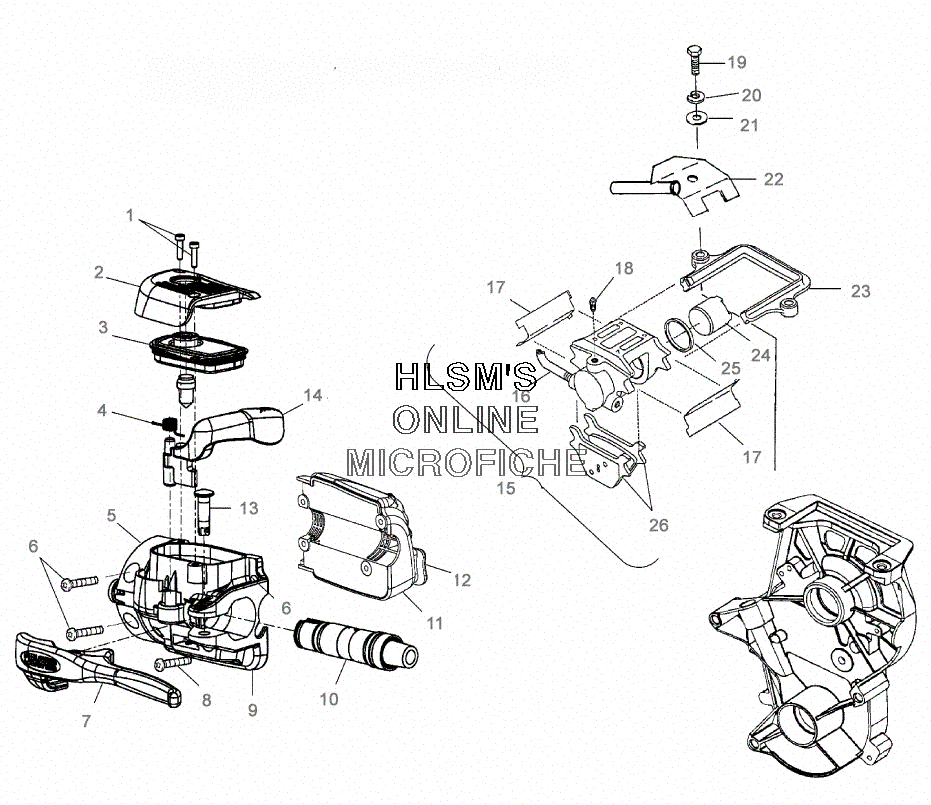

BRAKE ASSEMBLY для Polaris EURO WIDETRAK LX (E01SU4BU) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW KIT
    COVER SCREW KIT
  • 2
    2201255 COVER ASSY. (INCL. 1, 3)
    COVER ASSY. (INCL. 1, 3)
  • 4
    2201250 PARKLEVER SPRING KIT
    PARKLEVER SPRING KIT
  • 5
    2202146 MASTER CYLINDER ASSY. (INCL. 2, 4, 7, 9, 10, 13)
    MASTER CYLINDER ASSY. (INCL. 2, 4, 7, 9, 10, 13)
  • 6
    7517441 SCREW
    SCREW
  • 7
    2201943 LEVER KIT 3 NOTCH/PIN/RING
    LEVER KIT 3 NOTCH/PIN/RING
  • 8
    7517566 SCREW
    SCREW
  • 9
    2202146 MASTER CYLINDER ASSY.
    MASTER CYLINDER ASSY.
  • 9
    4010157 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 10
    2201248 5/8'' CARTRIDGE SUB ASSY.
    5/8'' CARTRIDGE SUB ASSY.
  • 11
    2010167 CONTROL ASSY. (LEFT)
    CONTROL ASSY. (LEFT)
  • 12
    5433291 BUTTON, SWITCH HI/LO
    BUTTON, SWITCH HI/LO
  • 13
    2201946 PIVOT PIN KIT, ALUM W/SNAP RING
    PIVOT PIN KIT, ALUM W/SNAP RING
  • 14
    2201251 PARKLEVER AND SPRING KIT, (INCL. 4)
    PARKLEVER AND SPRING KIT, (INCL. 4)
  • 15
    1910350 BRAKE CALIPER, HYBRID AIR (INCL. 24, 25, 26)
    BRAKE CALIPER, HYBRID AIR (INCL. 24, 25, 26)
  • 16
    1930755 LINE, BRAKE
    LINE, BRAKE
  • 17
    2200467 CLIP SPRING KIT (QTY. 2)
    CLIP SPRING KIT (QTY. 2)
  • 18
    1930735 INLET KIT
    INLET KIT
  • 19
    7515521 BOLT
    BOLT
  • 20
    7552603 WASHER
    WASHER
  • 21
    7555806 WASHER
    WASHER
  • 22
    1012849 ROPE GUIDE
    ROPE GUIDE
  • 23
    1930733 CALIPER BRACKET KIT
    CALIPER BRACKET KIT
  • 24
    1930734 PISTON SEAL KIT (INCL. 25)
    PISTON SEAL KIT (INCL. 25)
  • 25
    2200466 SEAL
    SEAL
  • 26
    2201429 BRAKE PAD KIT, TYPE 81 (SMALL) (INCL. 17)
    BRAKE PAD KIT, TYPE 81 (SMALL) (INCL. 17)
  • 26
    2201430 BRAKE PAD KIT, TYPE 81 (LARGE) (INCL. 17)
    BRAKE PAD KIT, TYPE 81 (LARGE) (INCL. 17)
