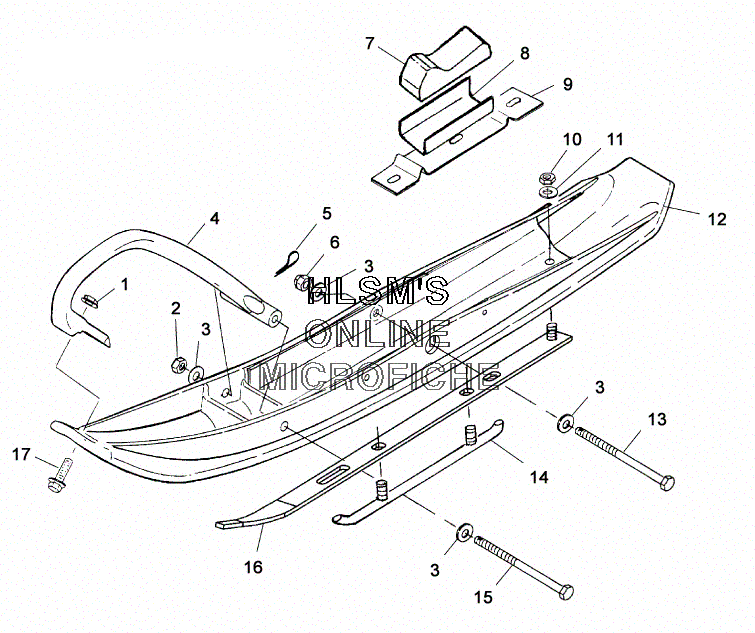

SKI ASSEMBLY для Polaris EURO 700 SKS (E00SS7AU) - 2000 года выпуска`
-
№АртикулНазвание
-
17542321 NUT LOCKNUT LOCK
-
27542411 NUT LOCKNUT LOCK
-
37555832 WASHERWASHER
-
45432209-070 TOE, PLASTIC SKI (BLK)TOE, PLASTIC SKI (BLK)
-
57661209 PIN, COTTERPIN, COTTER
-
67542438 NUT, CASTLENUT, CASTLE
-
75411094 STOP, SKI RUBBERSTOP, SKI RUBBER
-
85243824 RETAINER, SKI RUBBERRETAINER, SKI RUBBER
-
95241912-067 SUPPORT, SKI, RUBBER (BLK)SUPPORT, SKI, RUBBER (BLK)
-
107542324 NUTNUT
-
117555843 WASHER, WROUGHTWASHER, WROUGHT
-
121820610-070 COMP.SKIBLANK, W/RK SDL, (BLK)COMP.SKIBLANK, W/RK SDL, (BLK)
-
137512596 SCREW,SCREW,
-
142872018 SKAG, EZ, 3'', COMP.SKI, KITSKAG, EZ, 3'', COMP.SKI, KIT
-
142872019 SKAG, E/Z 3'', KIT CO W/WR/ST (INCL. 10, 11, 16)SKAG, E/Z 3'', KIT CO W/WR/ST (INCL. 10, 11, 16)
-
157515514 BOLTBOLT
-
161012748-067 PLATE, SKAG, 1.375 STUD (BLK)PLATE, SKAG, 1.375 STUD (BLK)
-
177515307 BOLTBOLT
