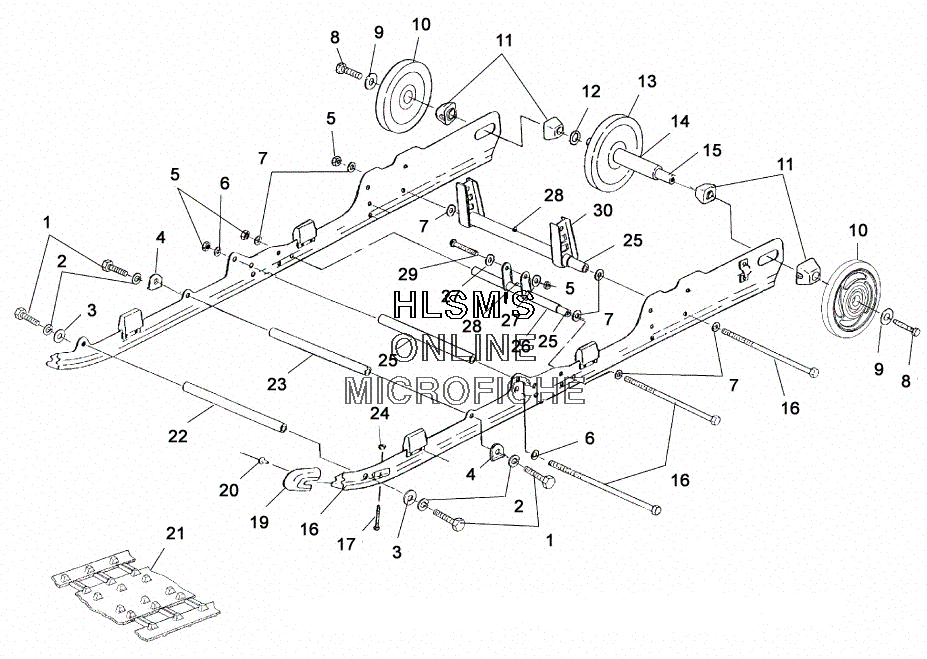

RAIL ASSEMBLY W/ IDLER WHEELS #2 для Polaris EURO 700 SKS (E00SS7AU) - 2000 года выпуска
-
№АртикулНазвание
-
17517247 SCREWSCREW
-
27552603 WASHERWASHER
-
37555923 WASHERWASHER
-
45241443 BRACKET, SHAFT SUPPORTBRACKET, SHAFT SUPPORT
-
57542411 NUT LOCKNUT LOCK
-
67555806 WASHERWASHER
-
77555893 WASHERWASHER
-
87515526 BOLTBOLT
-
97571629 WASHERWASHER
-
101594083-107 WHEEL, IDLER, SCRL (M.BLUE)WHEEL, IDLER, SCRL (M.BLUE)
-
115432535 SPACER, IDLERSPACER, IDLER
-
127555918 BUSHINGBUSHING
-
131594087 WHEEL ASSY., PLAIN (6.38 O.D.)WHEEL ASSY., PLAIN (6.38 O.D.)
-
145333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
155020744 SHAFT, IDLERSHAFT, IDLER
-
167517353 SCREWSCREW
-
185521452 SLIDER (WHITE)SLIDER (WHITE)
-
215222839 CLIP, TRACKCLIP, TRACK
-
215222840 CLIP, GUIDECLIP, GUIDE
-
215411520 TRACK, CAMO (136''X1.25)TRACK, CAMO (136''X1.25)
-
225020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
235020724 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
255333404 SHAFTSHAFT
-
261541001-067 ARM, SHOCK PIVOTARM, SHOCK PIVOT
-
277555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
287080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
297515472 BOLTBOLT
-
301541241-067 ARM, REAR PIVOTARM, REAR PIVOT
