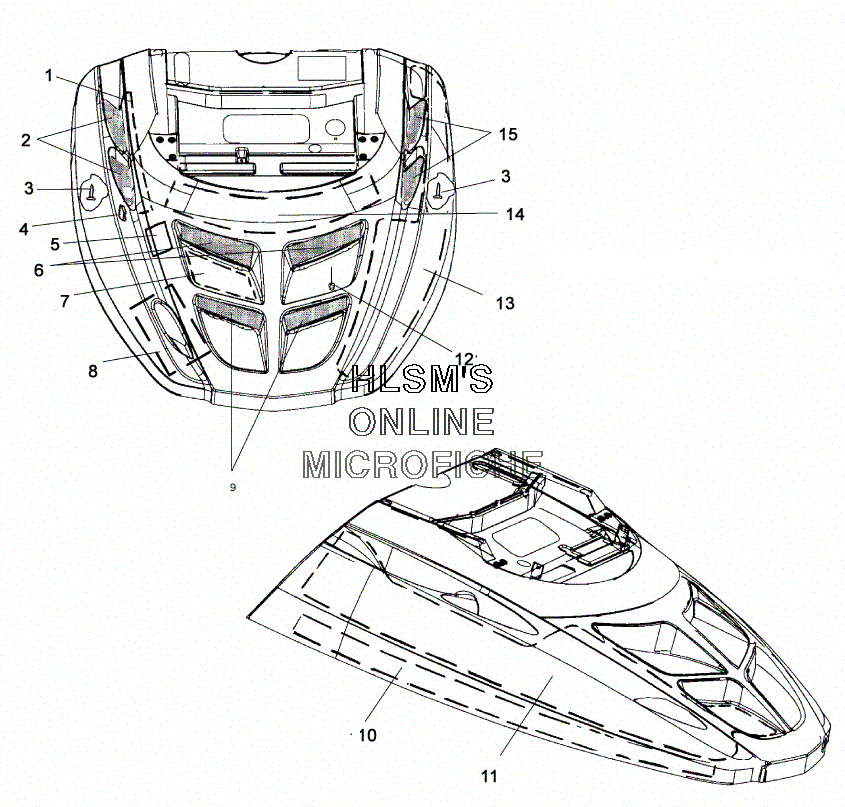

HOOD - FOAM/FOIL для Polaris EURO 700 SKS (E00SS7AU) - 2000 года выпуска`
-
№АртикулНазвание
-
15811721 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
25242858-067 SCREEN, HOOD (BLK) (RIGHT)SCREEN, HOOD (BLK) (RIGHT)
-
37511864 BOLTBOLT
-
47670040 CLIP, U TYPECLIP, U TYPE
-
55811703 FOIL, HOOD TAB, REINFFOIL, HOOD TAB, REINF
-
65243108-067 SCREEN, HOOD (FRONT) (UPPER) (LEFT) (BLK)SCREEN, HOOD (FRONT) (UPPER) (LEFT) (BLK)
-
65243109-067 SCREEN, HOOD (FRONT) (UPPER) (RIGHT) (BLK)SCREEN, HOOD (FRONT) (UPPER) (RIGHT) (BLK)
-
75811616 FOIL, TAPEFOIL, TAPE
-
85811621 FOIL, TAPE, W/CUTOUTFOIL, TAPE, W/CUTOUT
-
95243110-067 SCREEN, HOOD (FRONT) (LOWER) (LEFT) (BLK)SCREEN, HOOD (FRONT) (LOWER) (LEFT) (BLK)
-
95243111-067 SCREEN, HOOD (FRONT) (LOWER) (RIGHT) (BLK)SCREEN, HOOD (FRONT) (LOWER) (RIGHT) (BLK)
-
105811612 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
115811611 FOIL/FOAM, HEAT SHIELD, HD. (LEFT)FOIL/FOAM, HEAT SHIELD, HD. (LEFT)
-
127621334 RIVETRIVET
-
135811815 FOAM, HOOD (LEFT)FOAM, HOOD (LEFT)
-
145811814 FOAM, HOOD (CENTER)FOAM, HOOD (CENTER)
-
155242857-067 SCREEN, HOOD (LEFT) (BLK)SCREEN, HOOD (LEFT) (BLK)
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- HANDLEBAR ASSEMBLY
- • HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- REVERSE LINKAGE
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- TUNNEL ASSEMBLY
- WATER PUMP
