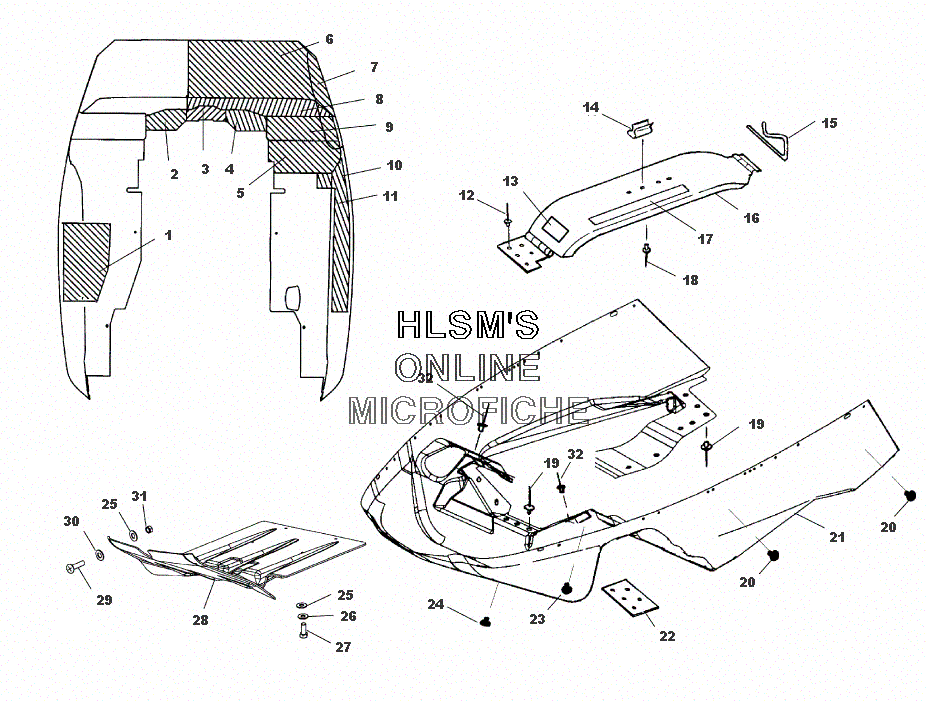

NOSEPAN ASSEMBLY #2 для Polaris 700 XC DELUXE (S00SD7AS) - 2000 года выпуска
-
№АртикулНазвание
-
15811715 FOAM, NOSEPAN (LEFT)FOAM, NOSEPAN (LEFT)
-
25810494 TAPE, FOIL PAN #4TAPE, FOIL PAN #4
-
35810495 TAPE, FOIL PAN #5TAPE, FOIL PAN #5
-
45810493 TAPE, FOIL PAN #3TAPE, FOIL PAN #3
-
58360018-09 TAPE, FOIL (6X9)TAPE, FOIL (6X9)
-
65811604 FOIL, TAPE PANFOIL, TAPE PAN
-
75811308 FOIL, TAPE (3X12)FOIL, TAPE (3X12)
-
85810492 TAPE, FOIL PAN #2TAPE, FOIL PAN #2
-
95811723 FOIL, TAPE PAN #6FOIL, TAPE PAN #6
-
108360044-61 TAPE, FOAMTAPE, FOAM
-
115811521 FOAM, FOIL, BELLYPAN (RIGHT)FOAM, FOIL, BELLYPAN (RIGHT)
-
127621402 POP, RIVETPOP, RIVET
-
137077760 DECAL, TROUBLE SHOOT (XTRA-12)DECAL, TROUBLE SHOOT (XTRA-12)
-
145222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
157080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
161012412 GUARD ASSY., CLUTCH (INCL. DECALS)GUARD ASSY., CLUTCH (INCL. DECALS)
-
177075350 DECAL 97-99 ENGINE/CLUTCHDECAL 97-99 ENGINE/CLUTCH
-
187621429 RIVETRIVET
-
197621467 RIVET, BLINDRIVET, BLIND
-
205410344 PLUGPLUG
-
215411645 NOSEPAN, LIQ/OUTLET (BLACK)NOSEPAN, LIQ/OUTLET (BLACK)
-
225211722 PLATE, BACKER CLUTCH GUARDPLATE, BACKER CLUTCH GUARD
-
235410820 PLUG, NOSEPAN HOLEPLUG, NOSEPAN HOLE
-
247670067 CLIP, DARTCLIP, DART
-
257555843 WASHER, WROUGHTWASHER, WROUGHT
-
267552605 WASHERWASHER
-
277512247 BOLTBOLT
-
282872220-293 SKID PLATE GEN II (INDY RED) (INCL. 25, 31)SKID PLATE GEN II (INDY RED) (INCL. 25, 31)
-
297517455 SCREWSCREW
-
307555859 WASHER, FLATWASHER, FLAT
-
317542122 NUT, LOCKNUT, LOCK
-
327621418 POP, RIVETPOP, RIVET
