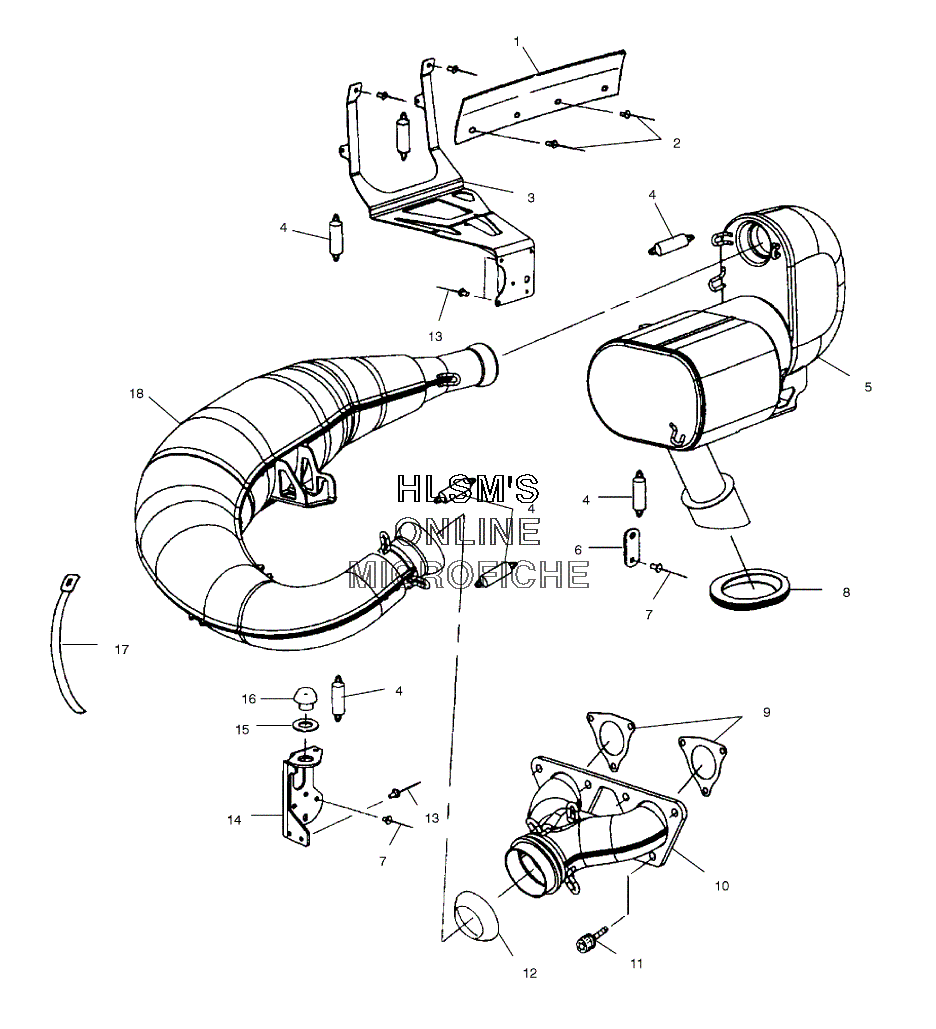

EXHAUST SYSTEM для Polaris 700 XC DELUXE (S00SD7AS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    5242183 SHIELD, HEAT HOOD GUIDE
    SHIELD, HEAT HOOD GUIDE
  • 2
    7621402 POP RIVET
    POP RIVET
  • 3
    1261026-029 BRACKET, CHASSIS/RESON (BLACK)
    BRACKET, CHASSIS/RESON (BLACK)
  • 4
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 5
    1261027-029 RESONATOR (BLACK)
    RESONATOR (BLACK)
  • 6
    5243186-067 HOOD, SPRING (BLACK)
    HOOD, SPRING (BLACK)
  • 7
    7661638 RIVET, INTERLOCK B
    RIVET, INTERLOCK B
  • 8
    5411494 BOOT, EXHAUST OUTLET
    BOOT, EXHAUST OUTLET
  • 9
    5811274 GASKET, EXHAUST
    GASKET, EXHAUST
  • 10
    1260757-029 MANIFOLD (BLACK)
    MANIFOLD (BLACK)
  • 11
    7517322 SCREW
    SCREW
  • 12
    3610046 SEAL, EXHAUST SOCKET
    SEAL, EXHAUST SOCKET
  • 13
    7661643 RIVET
    RIVET
  • 14
    5241832 BRACKETMUFFLER Z (FRONT)
    BRACKETMUFFLER Z (FRONT)
  • 15
    7556004 WASHER
    WASHER
  • 16
    5411576 DAMPENER, VIBRATION W/RIBS
    DAMPENER, VIBRATION W/RIBS
  • 17
    7080739 CLAMP, WORM (.44 X 3.13) (OPT)
    CLAMP, WORM (.44 X 3.13) (OPT)
  • 17
    7080740 CLAMP, WORM (.44 X 3.69) (OPT)
    CLAMP, WORM (.44 X 3.69) (OPT)
  • 17
    7080741 CLAMP, WORM (.44 X 4.25) (OPT)
    CLAMP, WORM (.44 X 4.25) (OPT)
  • 17
    7080742 CLAMP, WORM (.44 X 6.38) (OPT)
    CLAMP, WORM (.44 X 6.38) (OPT)
  • 18
    1261028 PIPE, TUNED ASSY. (INCL. 17)
    PIPE, TUNED ASSY. (INCL. 17)
  • 18
    5241720 COVER, TUNED PIPE (TOP)
    COVER, TUNED PIPE (TOP)
  • 18
    5241721 COVER, TUNED PIPE (BOTTOM)
    COVER, TUNED PIPE (BOTTOM)
  • 18
    5830111 MATTE, SOUND
    MATTE, SOUND
  • 18
    5830126 MATTE, SOUND (BOTTOM)
    MATTE, SOUND (BOTTOM)
