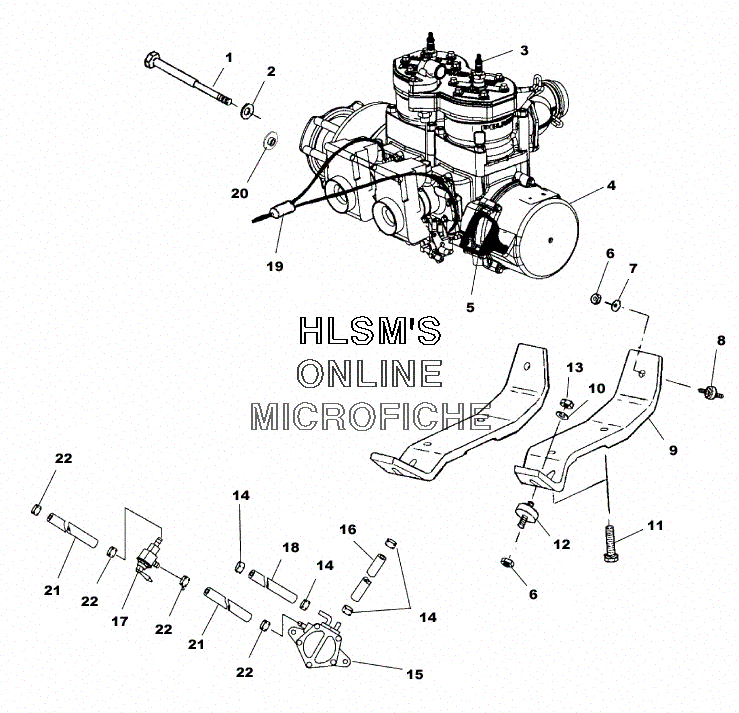

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 XC SP (EV) (S00SP6ES) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7517501 SCREW
    SCREW
  • 2
    7556003 WASHER
    WASHER
  • 3
    3070184 SP, PLUG CHAMPION
    SP, PLUG CHAMPION
  • 4
    2201531 SHORT BLOCK S60-44-00 EV (SEE FOOTNOTE)
    SHORT BLOCK S60-44-00 EV (SEE FOOTNOTE)
  • 5
    5431499 HANDLE RECOIL (BLK)
    HANDLE RECOIL (BLK)
  • 6
    7547008 NUT, FLEX LOCK
    NUT, FLEX LOCK
  • 7
    7555806 WASHER
    WASHER
  • 8
    3021099 ENGINE MOUNT (3/8-16, 3-TAB)
    ENGINE MOUNT (3/8-16, 3-TAB)
  • 9
    5131876 STRAP, ENGINE MOUNT (LEFT)
    STRAP, ENGINE MOUNT (LEFT)
  • 9
    5131877 STRAP, ENGINE MOUNT (RIGHT)
    STRAP, ENGINE MOUNT (RIGHT)
  • 10
    7555893 WASHER
    WASHER
  • 11
    7517399 SCREW
    SCREW
  • 12
    3110061 MOUNT, ENGINE
    MOUNT, ENGINE
  • 13
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 14
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    2520135 PUMP, FUEL 1 OUTLET
    PUMP, FUEL 1 OUTLET
  • 16
    8450040-600 FUEL LINE (1/4 ID) (600 CM.)
    FUEL LINE (1/4 ID) (600 CM.)
  • 17
    7052211 VALVE, FUEL SHUTOFF
    VALVE, FUEL SHUTOFF
  • 18
    8350017-600 FUEL LINE, ETHER (5/16'') (RED)
    FUEL LINE, ETHER (5/16'') (RED)
  • 19
    7080733 CABLE, THROTTLE, RACK W/OIL (38MM)
    CABLE, THROTTLE, RACK W/OIL (38MM)
  • 20
    5131872 WASHER, CLUTCH RET
    WASHER, CLUTCH RET
  • 21
    8350018-600 TUBING ERETHNE (160 CM)
    TUBING ERETHNE (160 CM)
  • 22
    7080307 CLAMP
    CLAMP
