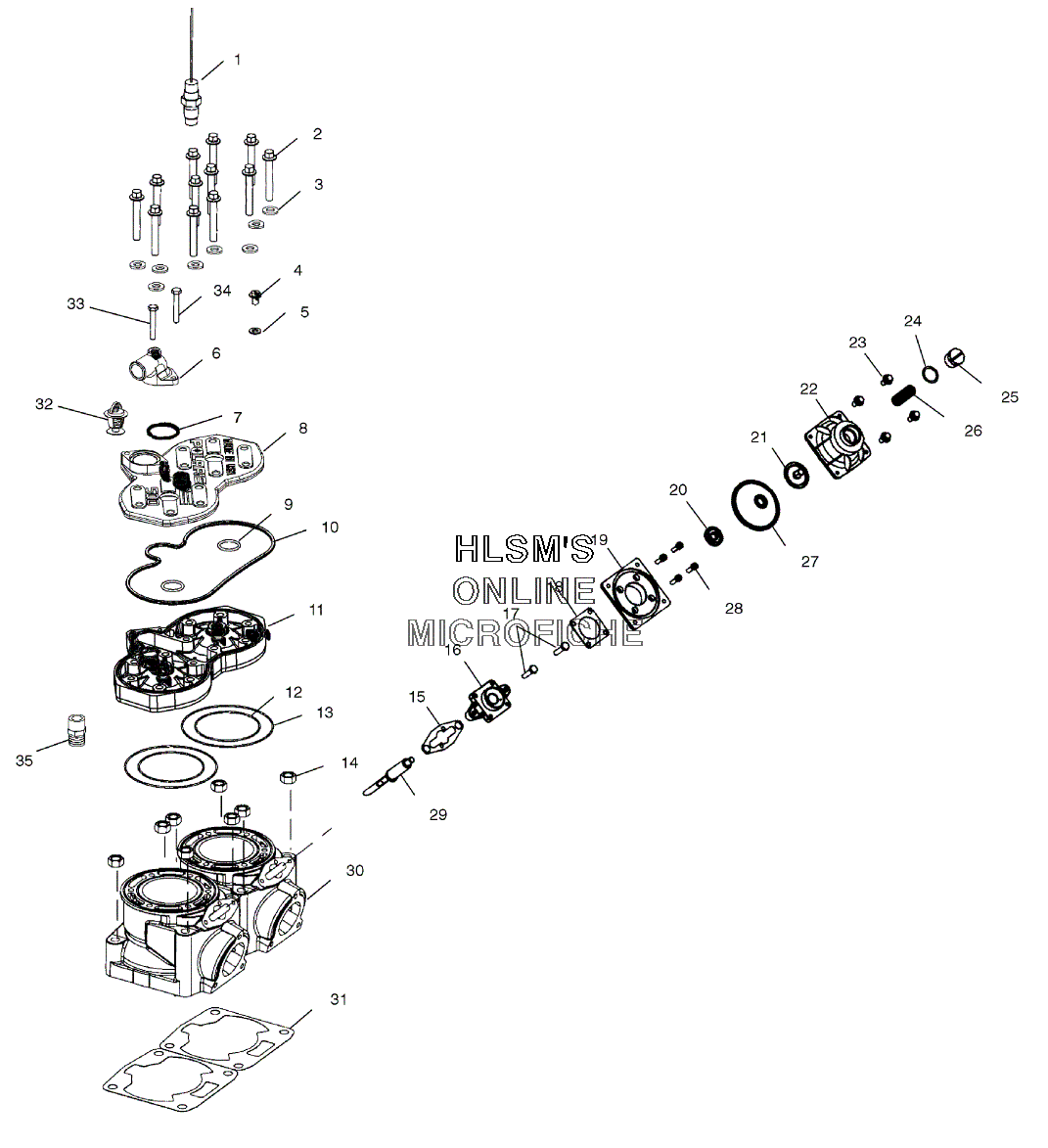

CYLINDER ASSEMBLY для Polaris 600 XC SP (EV) (S00SP6ES) - 2000 года выпуска
-
№АртикулНазвание
-
14010251 SENSOR THERMISTER (ESX8477A)SENSOR THERMISTER (ESX8477A)
-
27517281 SCREWSCREW
-
37556082 WASHERWASHER
-
47517266 SCREWSCREW
-
57555998 WASHER, FLATWASHER, FLAT
-
65630910 COVER, THERMOSTAT (M6 BLEED LG)COVER, THERMOSTAT (M6 BLEED LG)
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
85631038-093 HEAD COVER (FIRE RED) (77.25)HEAD COVER (FIRE RED) (77.25)
-
95411411 O-RINGO-RING
-
105411465 SEAL, MOLDED.HEAD, TWINSEAL, MOLDED.HEAD, TWIN
-
113022057 HEAD, CYLINDER, TWN, SNO (77.25MM)HEAD, CYLINDER, TWN, SNO (77.25MM)
-
125410932 O-RINGO-RING
-
135411359 O-RINGO-RING
-
147547013 NUTNUT
-
155811807 GASKET, GEN 3.5 EV BASEGASKET, GEN 3.5 EV BASE
-
161201919 EV 3.5 HSNG W/BUSH H.DOWEL ASSYEV 3.5 HSNG W/BUSH H.DOWEL ASSY
-
177516823 SCREWSCREW
-
185433375 GASKET, HOUSING EVGASKET, HOUSING EV
-
195132187 ADAPTER KIT, EV W/CAPADAPTER KIT, EV W/CAP
-
203086124 WASHERWASHER
-
213086118 CAP, VALVE EXHAUSTCAP, VALVE EXHAUST
-
223086120 COVER, VALVE EXHAUSTCOVER, VALVE EXHAUST
-
233086125 BOLT, FLANGEBOLT, FLANGE
-
243086126 O-RINGO-RING
-
253085744 ADJUSTER, SPRINGADJUSTER, SPRING
-
267041704-03 SPRING, EV (PINK)SPRING, EV (PINK)
-
273086119 BELLOWS, VALVE, EXHAUSTBELLOWS, VALVE, EXHAUST
-
287517314 SCREWSCREW
-
291201958 VALVE GUILLOTINE 3.5, 600EV ASSYVALVE GUILLOTINE 3.5, 600EV ASSY
-
303021087 CYLINDER W/LEVER (77MM)CYLINDER W/LEVER (77MM)
-
315811916 GASKET-CYLINDER BASEGASKET-CYLINDER BASE
-
327052267 THERMOSTAT-50C TBYS SS STEMTHERMOSTAT-50C TBYS SS STEM
-
337516818 SCREWSCREW
-
347516822 SCREWSCREW
-
357052234 FITTING, 3/4NPT-1'' HOSE BRASSFITTING, 3/4NPT-1'' HOSE BRASS
