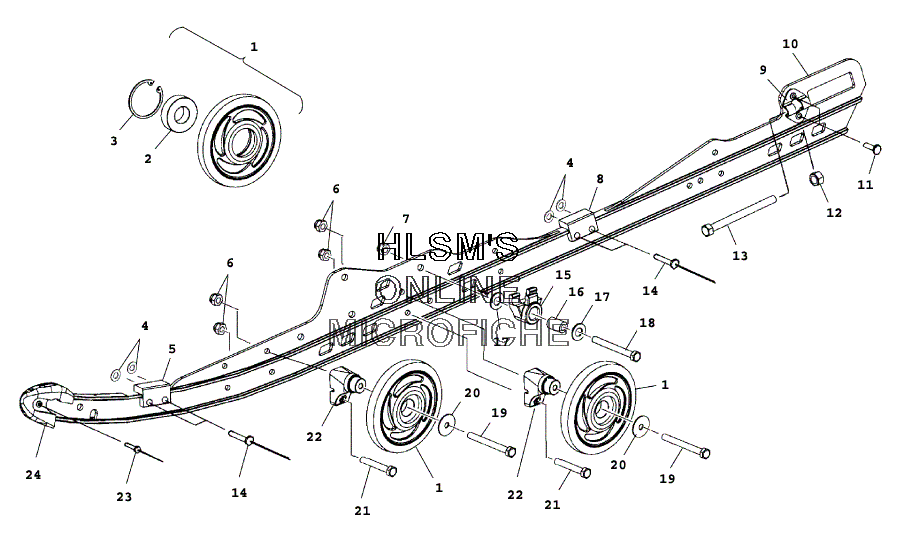

SUSPENSION - RAIL MOUNTING для Polaris 500 RMK (S00SR5AS) - 2000 года выпуска`
-
№АртикулНазвание
-
11590275-293 WHEEL, ADM (INDY RED) (INCL. 2, 3)WHEEL, ADM (INDY RED) (INCL. 2, 3)
-
23514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
37718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
47670068 NUT, PUSH-ONNUT, PUSH-ON
-
55811282 BUMPER, JOUNCE, XLBUMPER, JOUNCE, XL
-
67542324 NUTNUT
-
77542439 NUT, NYLOKNUT, NYLOK
-
85432946 LINER, BUMPERLINER, BUMPER
-
85521498 BUMPER, JOUNCE REARBUMPER, JOUNCE REAR
-
95130530 BLOCK, IDLER BOLT ADJUSTBLOCK, IDLER BOLT ADJUST
-
101541503 RAIL, ASSY. (136) (LEFT) (INCL. 4, 5, 9, 10, 11, 14, 23, 24)RAIL, ASSY. (136) (LEFT) (INCL. 4, 5, 9, 10, 11, 14, 23, 24)
-
101541504 RAIL, ASSY. (136) (RIGHT) (INCL. 4, 5, 9, 10, 11, 14, 23, 24)RAIL, ASSY. (136) (RIGHT) (INCL. 4, 5, 9, 10, 11, 14, 23, 24)
-
117621501 RIVETRIVET
-
127542404 NUTNUT
-
137517227 SCREWSCREW
-
147661621 PIN, HOOD HINGEPIN, HOOD HINGE
-
155431924 BLOCK, SPRING SLIDERBLOCK, SPRING SLIDER
-
165010332 BUSHINGBUSHING
-
177555893 WASHERWASHER
-
187515433 BOLTBOLT
-
197515346 BOLTBOLT
-
207555959 WASHERWASHER
-
217515317 BOLTBOLT
-
225131314 MOUNT, WHEEL, MACHMOUNT, WHEEL, MACH
-
237621435 RIVETRIVET
-
245433735 CAP, RAIL TIPCAP, RAIL TIP
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- • SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- TUNNEL ASSEMBLY
- WATER PUMP/OIL PUMP
