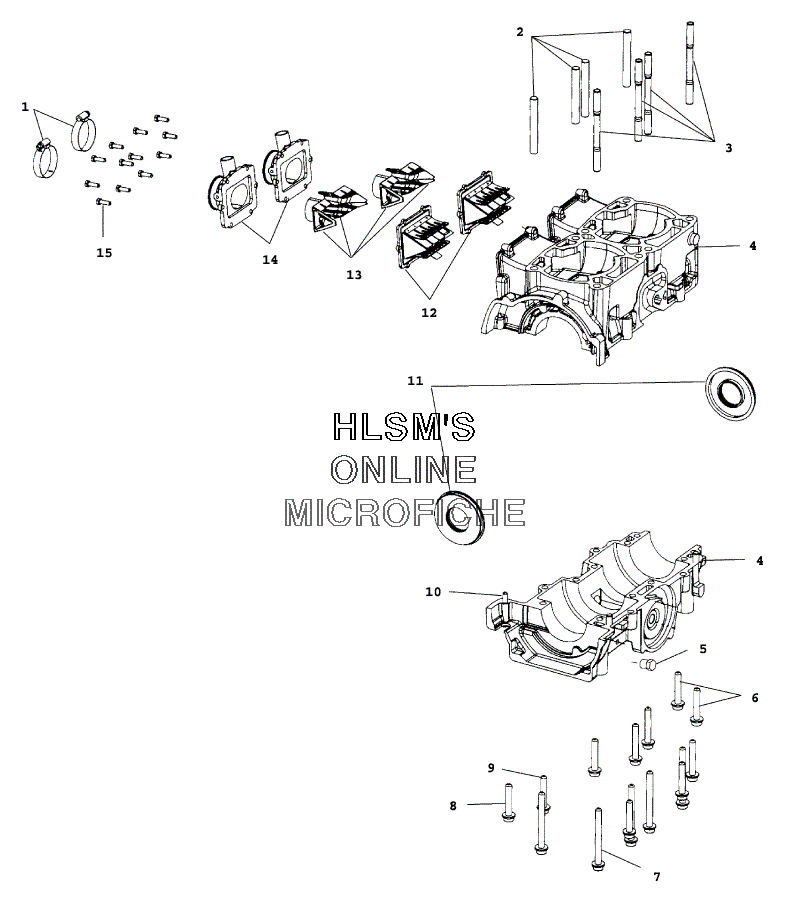

CRANKCASE ASSEMBLY для Polaris 500 RMK (S00SR5AS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7080681 CLAMP, HOSE, SS
    CLAMP, HOSE, SS
  • 2
    5131767 STUD, CYLINDER FLANGE (81.0MM) (SPS)
    STUD, CYLINDER FLANGE (81.0MM) (SPS)
  • 3
    5131766 STUD, CYLINDER FLANGE (118.5MM) (SPS)
    STUD, CYLINDER FLANGE (118.5MM) (SPS)
  • 4
    2201555 CRANKCASE, KIT TWN SNO 500/440 (INCL. 2, 3, 5, 10)
    CRANKCASE, KIT TWN SNO 500/440 (INCL. 2, 3, 5, 10)
  • 5
    7051529 PLUG
    PLUG
  • 6
    7517448 SCREW
    SCREW
  • 7
    7517244 SCREW
    SCREW
  • 8
    7516825 SCREW
    SCREW
  • 9
    7517214 SCREW
    SCREW
  • 10
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 11
    5411394 SEAL, FLANGED
    SEAL, FLANGED
  • 12
    1201843 VALVE, REED 1242, G10 S/B
    VALVE, REED 1242, G10 S/B
  • 13
    5432852 STUFFER, REED (75.5MM) (38MM.CARBURETOR)
    STUFFER, REED (75.5MM) (38MM.CARBURETOR)
  • 14
    1253217 ADAPTER, CARBURETOR, TM/RACK, 440 BASE
    ADAPTER, CARBURETOR, TM/RACK, 440 BASE
  • 15
    7517398 SCREW
    SCREW
