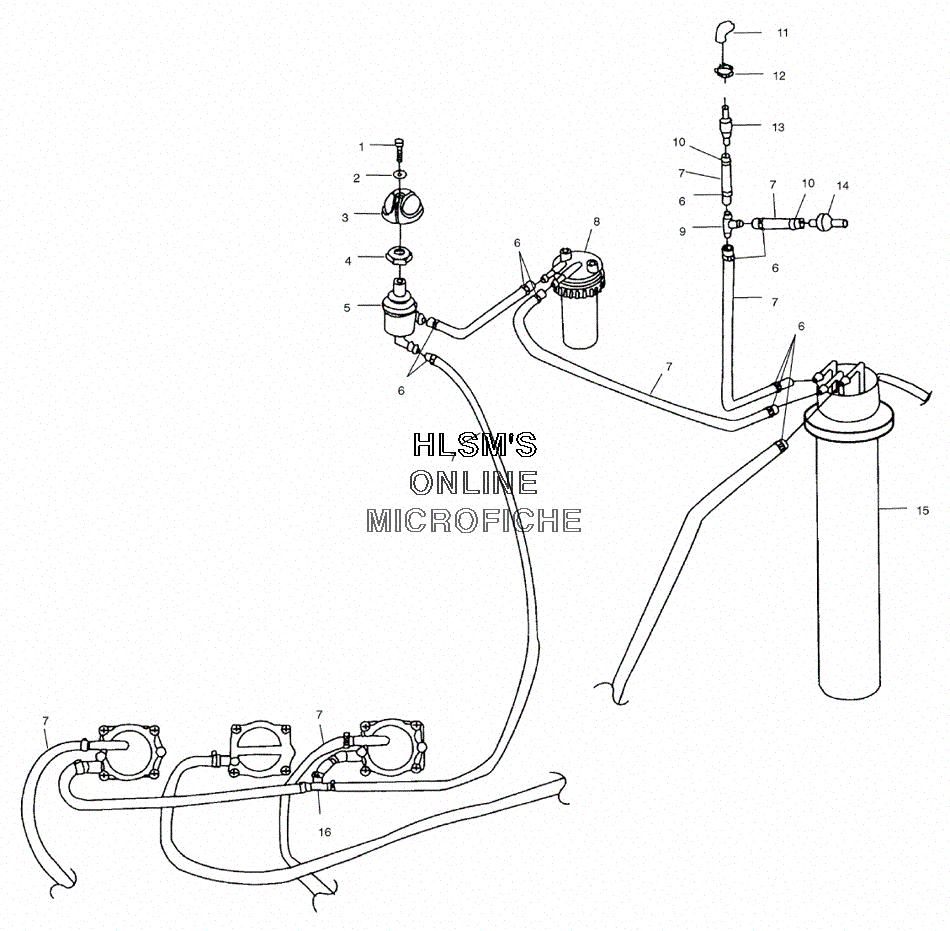

AIR INLET - ENGINE AND HULL для Polaris Virage TX 3-Pass - 2000 года выпуска`
-
№АртикулНазвание
-
17661042 RIVET, POPRIVET, POP
-
25433220 FLANGEFLANGE
-
35411545 GASKETGASKET
-
45812108 PANEL, AIR DUCTPANEL, AIR DUCT
-
55411958 GASKET, AIR DUCT PANELGASKET, AIR DUCT PANEL
-
67080439 CLAMP, HOSECLAMP, HOSE
-
75433082 DUCT, INLET AIRDUCT, INLET AIR
-
87080492 STRAP, WEATHER RESIST (BLACK)STRAP, WEATHER RESIST (BLACK)
