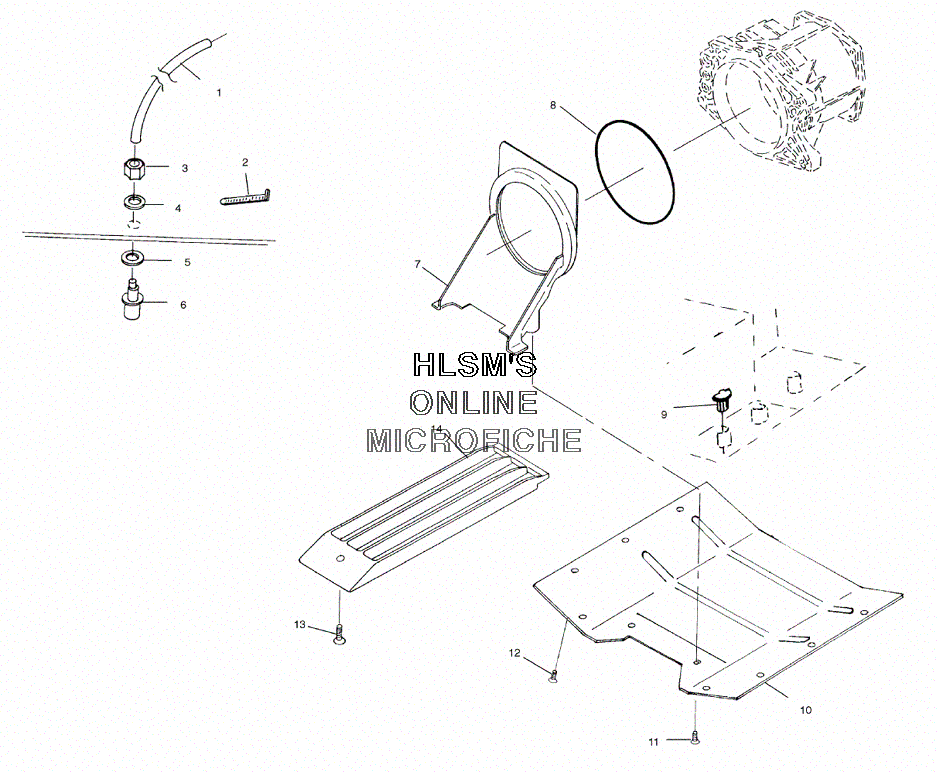

BILGE PUMP для Polaris Virage TX 3-Pass - 2000 года выпуска
-
№АртикулНазвание
-
17052141 ELBOWELBOW
-
27080475 CLAMP, HOSECLAMP, HOSE
-
38450050-26 HOSEHOSE
-
47080492 STRAP, WEATHER-RESIST. (BLACK)STRAP, WEATHER-RESIST. (BLACK)
-
55431444 FITTING, THRU HULLFITTING, THRU HULL
-
65811317 GASKETGASKET
-
75411595 HOSE, CHAFE PROTECTED (3/4''X42CM)HOSE, CHAFE PROTECTED (3/4''X42CM)
-
82410169 BILGE, W/CONNECTOR ASSY.BILGE, W/CONNECTOR ASSY.
-
97512043 BOLTBOLT
-
107555837 WASHER, FLATWASHER, FLAT
