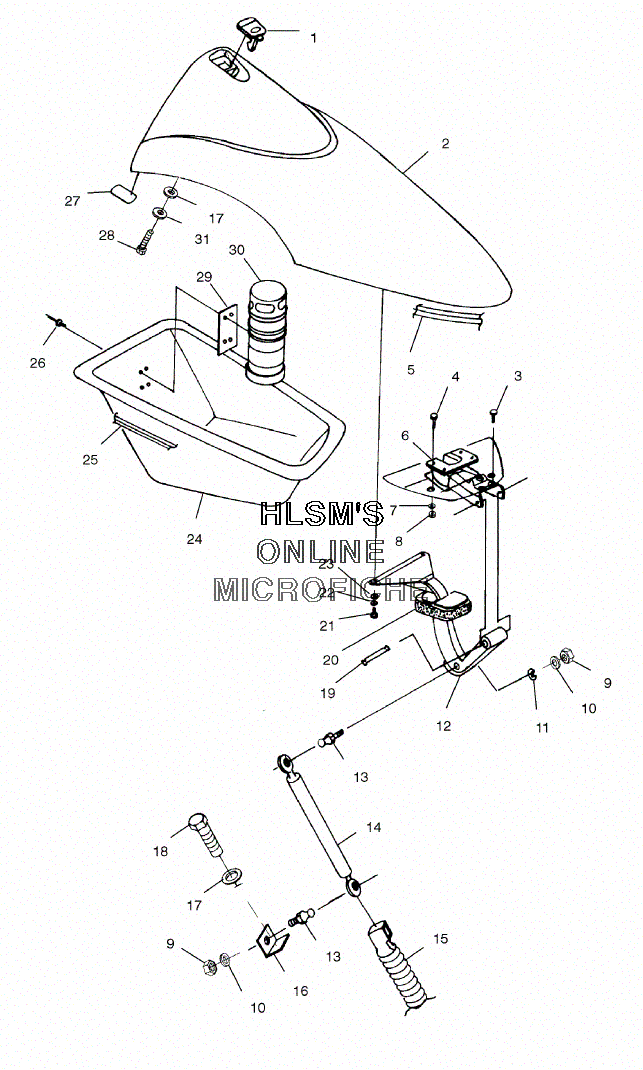

STORAGE COMPARTMENT - FRONT для Polaris SLH 2-Pass - 2000 года выпуска`
-
№АртикулНазвание
-
12653012 LATCH, COMPARTMENT DOORLATCH, COMPARTMENT DOOR
-
25433121-277 DOOR, COMPARTMENTDOOR, COMPARTMENT
-
37517551 SCREWSCREW
-
47515198 SCREWSCREW
-
55521428 SEAL, DOOR/COMP.SEAL, DOOR/COMP.
-
65433504 HINGE ASSY.HINGE ASSY.
-
77555839 WASHER, FLATWASHER, FLAT
-
87542133 NUT, NYLOKNUT, NYLOK
-
97542334 NUTNUT
-
107552610 WASHER, LOCKWASHER, LOCK
-
117710456 RING, RETAINER 1/4RING, RETAINER 1/4
-
125432711 HINGE, COMPARTMENTHINGE, COMPARTMENT
-
131500130 STUD, BALL SWIVEL MOUNTSTUD, BALL SWIVEL MOUNT
-
147041675 SPRING, GASSPRING, GAS
-
155411391 BOOT, SPRING GASBOOT, SPRING GAS
-
165241909 BRACKET, GAS SPRING MOUNTBRACKET, GAS SPRING MOUNT
-
177552615 WASHER, LOCKWASHER, LOCK
-
187512056 SCREWSCREW
-
197661026 PIN, HINGE DOORPIN, HINGE DOOR
-
205811597 SEAL, HINGE (FRONT)SEAL, HINGE (FRONT)
-
217515127 BOLTBOLT
-
227555838 WASHER, LOCKWASHER, LOCK
-
237555836 WASHERWASHER
-
245432707 BUCKET, STORAGE (FRONT)BUCKET, STORAGE (FRONT)
-
255811556 GASKET, BUCKET (FRONT)GASKET, BUCKET (FRONT)
-
267621452 RIVETRIVET
-
275811643 BUMPER, COMPARTMENT DOORBUMPER, COMPARTMENT DOOR
-
287512045 BOLTBOLT
-
295211740 PLATE, FIRE EXT.PLATE, FIRE EXT.
-
301060114 CONTAINER ASSY., FIRE EXTINGUISHECONTAINER ASSY., FIRE EXTINGUISHE
-
317555837 WASHER, FLATWASHER, FLAT
