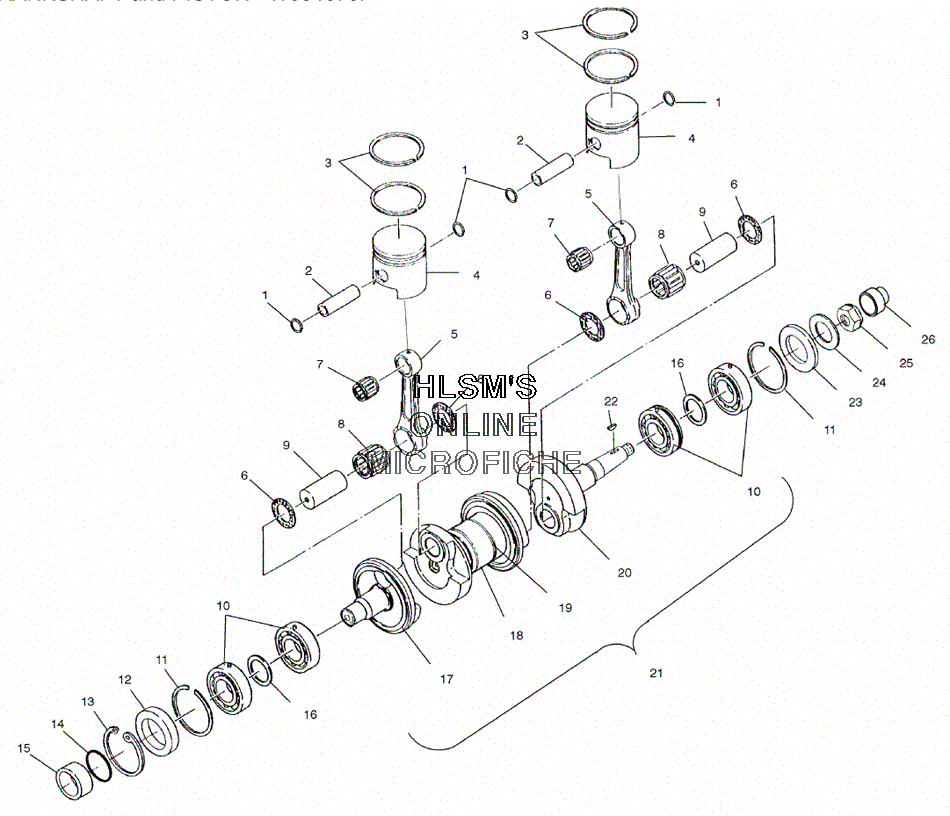

CRANKSHAFT W/ PISTONS для Polaris SLH 2-Pass - 2000 года выпуска

№

Артикул

Название
1

3022950 CIRCLIP, PISTON (20MM.)

CIRCLIP, PISTON (20MM.)
2

3022953 PIN, PISTON

PIN, PISTON
3

2200902 PISTON RINGS KIT (STD) (2 RINGS)

PISTON RINGS KIT (STD) (2 RINGS)
3

2200903 PISTON RINGS KIT (OPT) (.25MM O/S)

PISTON RINGS KIT (OPT) (.25MM O/S)
3

2200904 PISTON RINGS KIT (OPT) (.50 MM O/S)

PISTON RINGS KIT (OPT) (.50 MM O/S)
3

2200916 PISTON RING KIT (OPT) (.50 MM O/S)

PISTON RING KIT (OPT) (.50 MM O/S)
3

2200917 PISTON RING KIT (OPT) (.25MM O/S)

PISTON RING KIT (OPT) (.25MM O/S)
3

2200918 PISTON RING (STD) (2 RINGS)

PISTON RING (STD) (2 RINGS)
4

2200883 PISTON KIT (81MM) (STD) (INCL.1, 2, 3)

PISTON KIT (81MM) (STD) (INCL.1, 2, 3)
4

2200884 PISTON KIT (.25 MM O/S) (OPT) (INCL.1, 2, 3)

PISTON KIT (.25 MM O/S) (OPT) (INCL.1, 2, 3)
4

2200885 PISTON KIT (.50 MM O/S) (OPT) (INCL.1, 2, 3)

PISTON KIT (.50 MM O/S) (OPT) (INCL.1, 2, 3)
5

2201022 CONNECTION ROD ASSY. (INCL. 6, 8, 9)

CONNECTION ROD ASSY. (INCL. 6, 8, 9)
7

3584001 BEARING, CONNECT.ROD

BEARING, CONNECT.ROD
10

3585501 BEARING, BALL

BEARING, BALL
11

7710441 RING, RETAINING (72 MM)

RING, RETAINING (72 MM)
12

5411524 SEAL, TYPE BA

SEAL, TYPE BA
13

7710435 RING, RETAINING (72 MM)

RING, RETAINING (72 MM)
14

5410613 O-RING

O-RING
15

5131195 COLLAR, CRANKSHAFT

COLLAR, CRANKSHAFT
16

7555905 BUSHING

BUSHING
17

5131083 CRANKWEB (PTO)

CRANKWEB (PTO)
18

5131084 CRANKWEB (CENTER)

CRANKWEB (CENTER)
19

5131086 LABYRINTH

LABYRINTH
20

5131085 CRANKWEB (MAG)

CRANKWEB (MAG)
21

2201243 CRANKSHAFT KIT (INCL. 10, 16-20, 22)

CRANKSHAFT KIT (INCL. 10, 16-20, 22)
22

7721117 KEY, WOODRUFF

KEY, WOODRUFF
23

3610044 SEAL

SEAL
24

7555907 WASHER

WASHER
25

7546909 NUT

NUT
26

5432576 COUPLER

COUPLER
