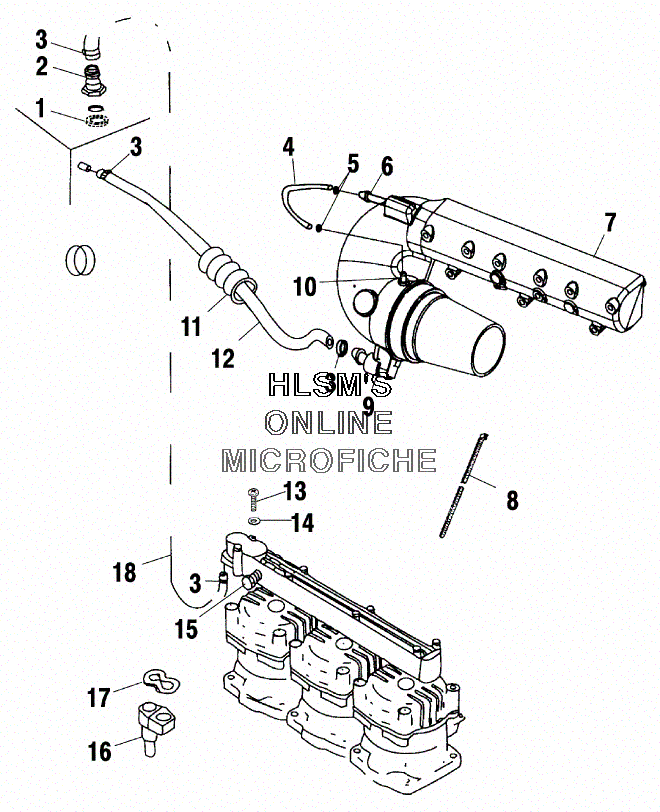

CYLINDER W/ INTAKE для Polaris Genesis 4-Pass Euro - 2000 года выпуска`
-
№АртикулНазвание
-
17516806 BOLTBOLT
-
27075383 DECAL, WARNINGDECAL, WARNING
-
35630942-093 WATER, MANIFOLD ASSY.WATER, MANIFOLD ASSY.
-
45830061 GASKET, WATER MANIFOLDGASKET, WATER MANIFOLD
-
53070163 SPARKPLUG (BR9ES)SPARKPLUG (BR9ES)
-
65630527-093 COVER, HEAD (RED)COVER, HEAD (RED)
-
75410917 O-RINGO-RING
-
85241944 RING, HEAD 81MMRING, HEAD 81MM
-
93021122 HEAD, CYLINDER (84MM)HEAD, CYLINDER (84MM)
-
102201562 CRANKCASE ASSY.CRANKCASE ASSY.
-
111201595 REED BLOCK ASSYREED BLOCK ASSY
-
125432162 STUFFER, REED BLOCKSTUFFER, REED BLOCK
-
135630582 ADAPTOR, CARBURETOR (BLACK)ADAPTOR, CARBURETOR (BLACK)
-
147516807 BOLTBOLT
-
157516814 BOLTBOLT
-
167080654 RETAINERRETAINER
-
175830043 GASKET, CARBURETORGASKET, CARBURETOR
-
185830123 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
193021017 CYLINDER (84MM)CYLINDER (84MM)
-
207547021 NUTNUT
-
215410931 O-RINGO-RING
-
225411573 O-RING, HI-TEMPO-RING, HI-TEMP
-
237517352 SCREWSCREW
-
247516722 BOLTBOLT
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY BOX
- BILGE PUMP
- BILGE SIPHON
- CARBURETOR
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTONS
- • CYLINDER W/ INTAKE
- DECALS
- DRIVE SHAFT W/ COUPLER
- ELECTRICAL BOX
- ENGINE FOGGING SYSTEM
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL / WATER SEPARATOR
- FUEL SYSTEM
- FUEL TANK
- HANDLEBAR ASSY. W/ STEERING COLUMN
- HULL
- HULL
- INTAKE GRATE W/ RIDE PLATE
- MAGNETO
- OIL PUMP
- OIL TANK
- PROPULSION
- REVERSE
- SEAT
- SHROUD W/ INSTRUMENTS AND MIRRORS
- STARTING MOTOR
- STEERING CABLE ASSY.
- STORAGE COMPARTMENT - FRONT
- TOOL KIT
