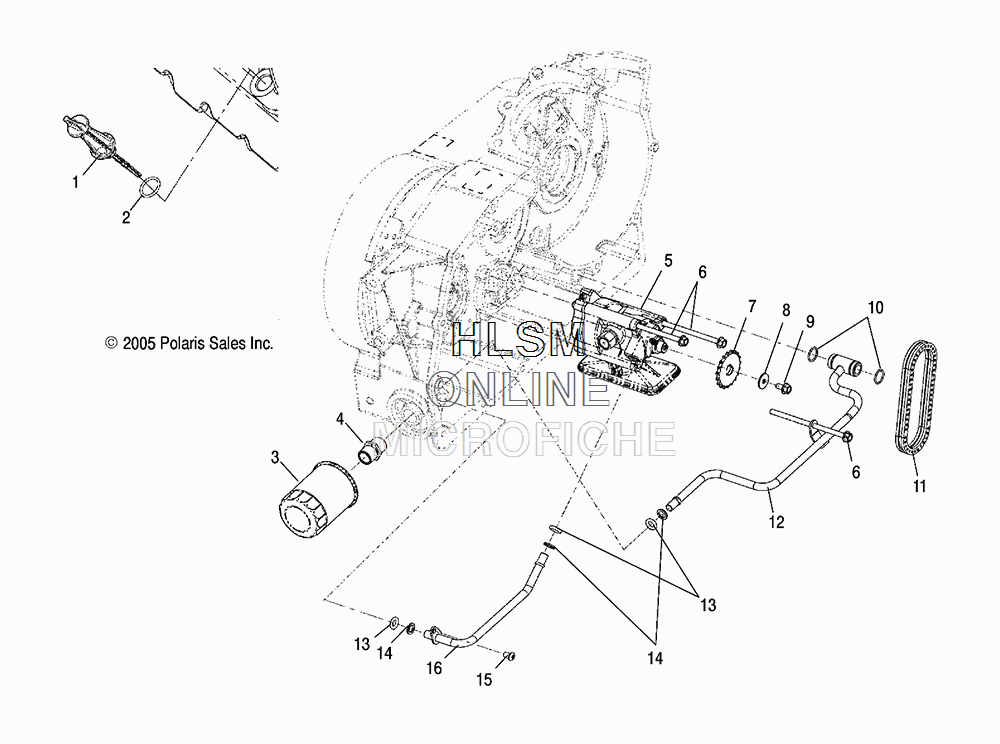

OIL PUMP MOUNTING AND DIPSTICK для Polaris Vision Blue Fire [V17VTAAVAL] - 2017 года выпуска`
-
№АртикулНазвание
-
12521517 ASM., DIPSTICK, OIL FILL [INCL. O-RING]ASM., DIPSTICK, OIL FILL [INCL. O-RING]
-
25411331 O-RINGO-RING
-
32540086 FILTER, OILFILTER, OIL
-
42521388 NIPPLENIPPLE
-
52520495 ASM., OIL PUMPASM., OIL PUMP
-
67517256 SCREWSCREW
-
73222150 SPROCKET, 23TSPROCKET, 23T
-
87556054 WASHER, FLATWASHER, FLAT
-
97517257 SCREWSCREW
-
105412002 O-RINGO-RING
-
113221173 CHAINCHAIN
-
122520790 TUBE, FILTER/CRANKCASETUBE, FILTER/CRANKCASE
-
135411231 O-RINGO-RING
-
147556026 WASHERWASHER
-
157519063 SCREW, TORXSCREW, TORX
-
162521074 TUBE, OIL, OUTLETTUBE, OIL, OUTLET
