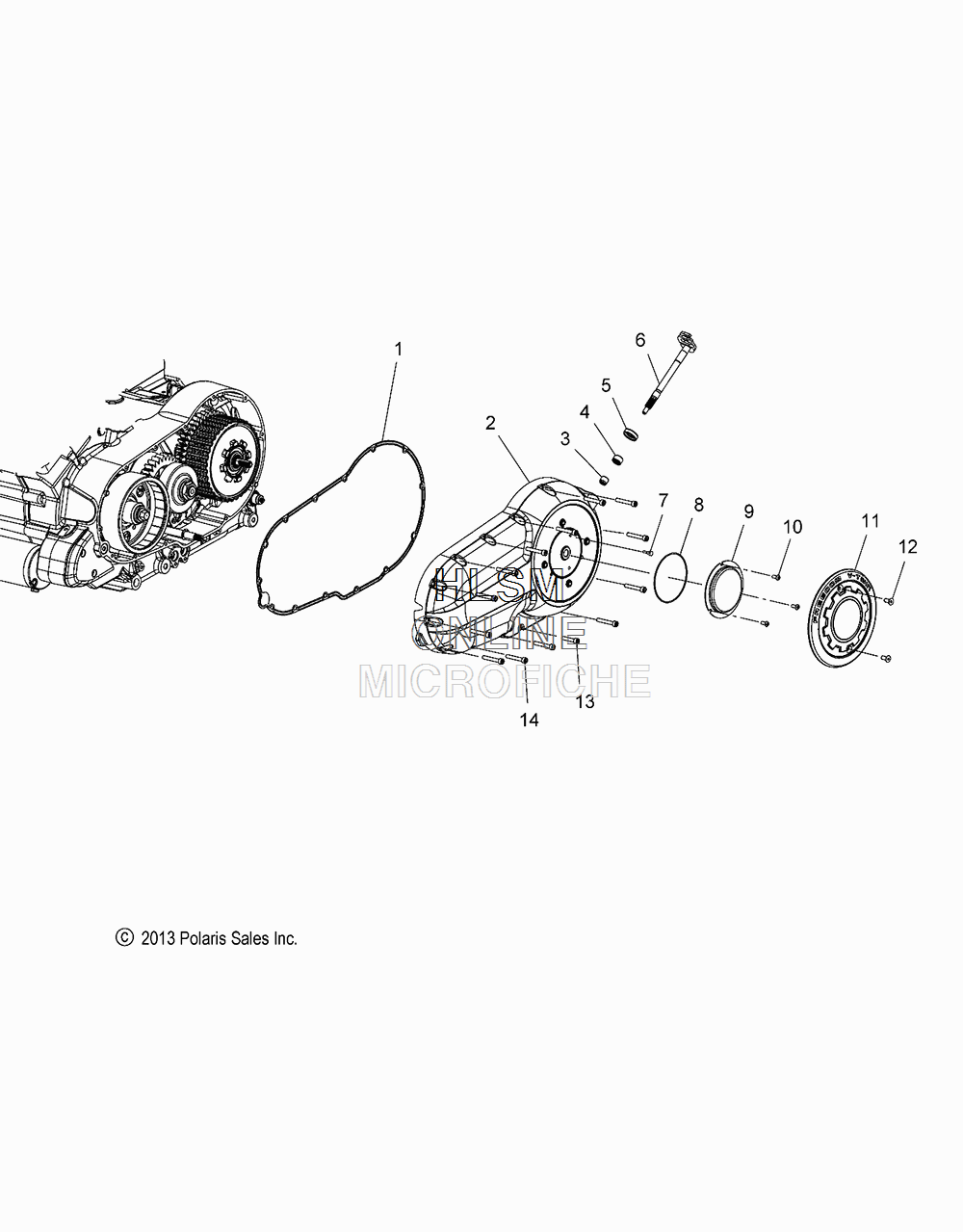

PRIMARY COVER для Polaris Vision Blue Fire [V17VTAAVAL] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5814359 KIT, GASKET, BEADED PAPER [INCL. PRIMARY COVER GASKET, CAM DRIVE COVER GASKET]
    KIT, GASKET, BEADED PAPER [INCL. PRIMARY COVER GASKET, CAM DRIVE COVER GASKET]
  • 1
    5830223 GASKET, PRIMARY COVER
    GASKET, PRIMARY COVER
  • 2
    3022232 ASM. PRIMARY DRIVE COVER (BLACK) [INCL. 3,4,5]
    ASM. PRIMARY DRIVE COVER (BLACK) [INCL. 3,4,5]
  • 3
    3610154 SEAL
    SEAL
  • 4
    3552105 BEARING, NEEDLE
    BEARING, NEEDLE
  • 5
    3512106 BEARING, NEEDLE
    BEARING, NEEDLE
  • 6
    1016261 PINION, CLUTCH
    PINION, CLUTCH
  • 7
    7517499 SCREW
    SCREW
  • 8
    5412230 O-RING
    O-RING
  • 9
    5246387 PLATE, CAP SEAL
    PLATE, CAP SEAL
  • 10
    7518817 SCREW
    SCREW
  • 11
    1014712 ASM., PLATE, PRIMARY, COVER (BLACK) [INCL. 12]
    ASM., PLATE, PRIMARY, COVER (BLACK) [INCL. 12]
  • 12
    7517754 SCREW
    SCREW
  • 13
    7517301 SCREW
    SCREW
  • 14
    7517261 SCREW
    SCREW
