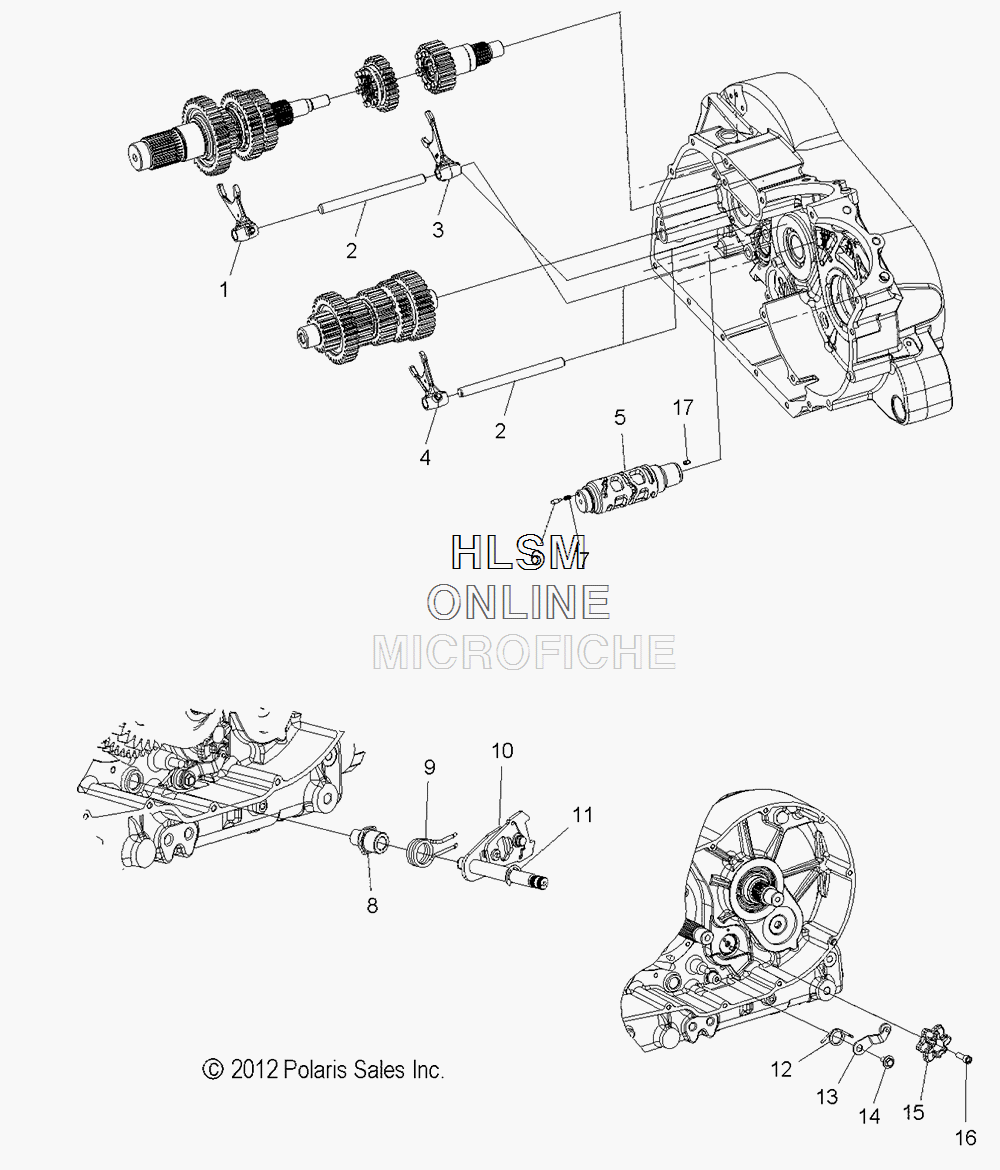

SHIFT FORKS AND DRUM для Polaris JUDGE INTL [V17CJAABEM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5137137 FORK, SHIFT, MAINSHAFT, 6TH
    FORK, SHIFT, MAINSHAFT, 6TH
  • 2
    5136947 RAIL, SHIFT FORK
    RAIL, SHIFT FORK
  • 3
    5136881 FORK, SHIFT, MAINSHAFT, 4TH
    FORK, SHIFT, MAINSHAFT, 4TH
  • 4
    5136754 FORK, SHIFT, COUNTERSHAFT
    FORK, SHIFT, COUNTERSHAFT
  • 5
    1332792 ASM., SHIFT DRUM, 6 SPEED [INCL. 17]
    ASM., SHIFT DRUM, 6 SPEED [INCL. 17]
  • 6
    5334457 PIN, INDICATOR, SHIFT DRUM
    PIN, INDICATOR, SHIFT DRUM
  • 7
    7042307 SPRING, PINSHIFT INDICATOR
    SPRING, PINSHIFT INDICATOR
  • 8
    5132139 ADAPTOR, SHIFT SHAFT
    ADAPTOR, SHIFT SHAFT
  • 9
    7041583 SPRING, SHIFTER
    SPRING, SHIFTER
  • 10
    1333630 ASM., SHIFTER RATCHET [INCL. 11]
    ASM., SHIFTER RATCHET [INCL. 11]
  • 11
    7710534 RING, RETAINING (10MM)
    RING, RETAINING (10MM)
  • 12
    7044436 SPRING, TORSION
    SPRING, TORSION
  • 13
    1341402 ASM., ROLLER FOLLOWER
    ASM., ROLLER FOLLOWER
  • 14
    7518937 SCREW
    SCREW
  • 15
    5139733 STAR, SHIFTER
    STAR, SHIFTER
  • 16
    7518995 SCREW
    SCREW
  • 17
    7661023 PIN, SOLID
    PIN, SOLID
