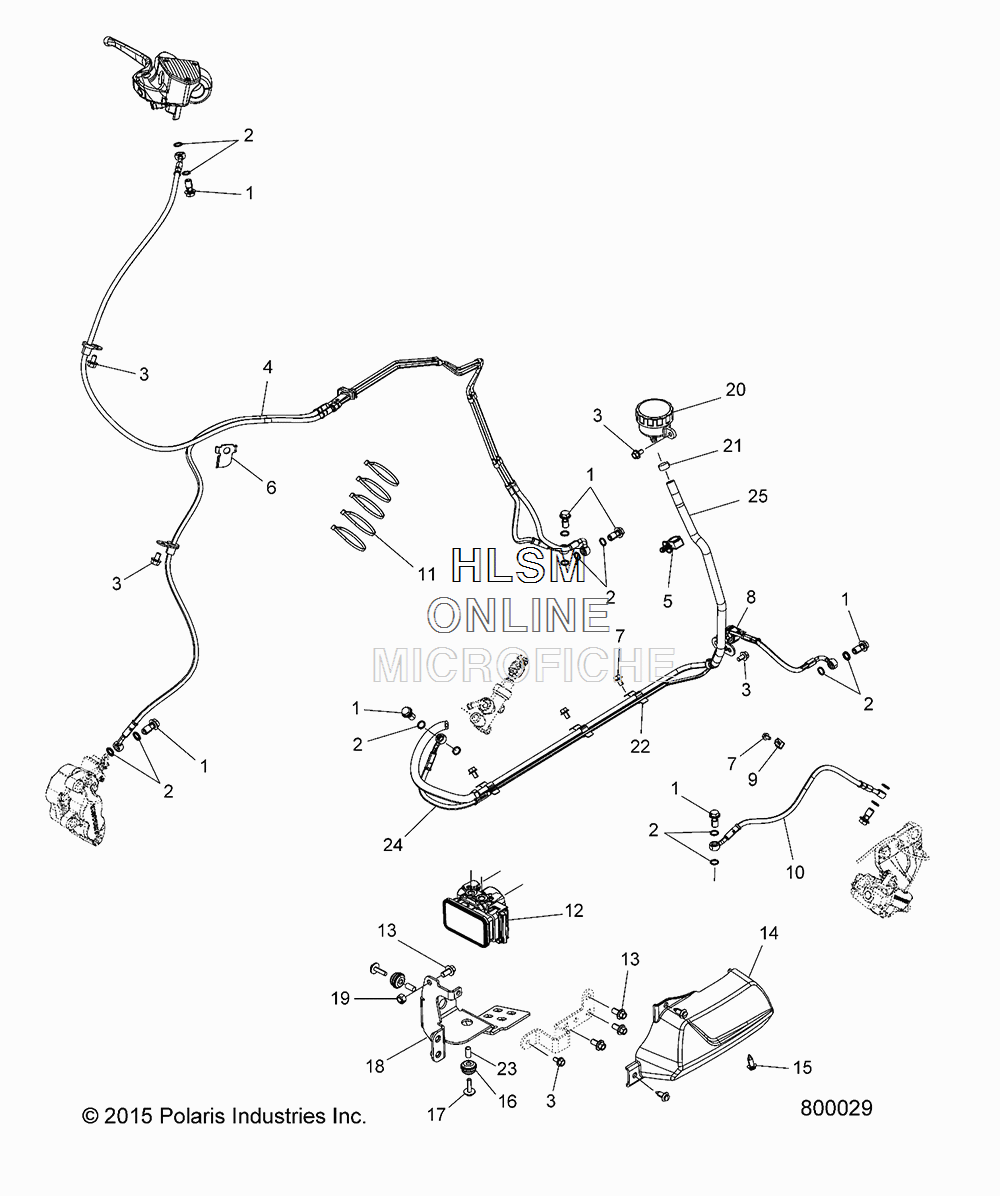

BRAKE LINES AND RESERVOIR для Polaris JUDGE INTL [V17CJAABEM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1910958 BOLT, BANJO
    BOLT, BANJO
  • 2
    7556372 WASHER, SEAL, COPPER
    WASHER, SEAL, COPPER
  • 3
    7517704 SCREW
    SCREW
  • 4
    1912406 HOSE, BRAKE, FRONT, STD., ABS
    HOSE, BRAKE, FRONT, STD., ABS
  • 5
    7670116 CLIP, ROUTING
    CLIP, ROUTING
  • 6
    5260081 BRACKET, RETAINER, BRAKE LINE
    BRACKET, RETAINER, BRAKE LINE
  • 7
    7518393 SCREW
    SCREW
  • 8
    4012437 SWITCH, PRESSURE
    SWITCH, PRESSURE
  • 9
    7080983 CLAMP, REAR BRAKE
    CLAMP, REAR BRAKE
  • 10
    1912397 HOSE, BRAKE, REAR CAL TO MOD
    HOSE, BRAKE, REAR CAL TO MOD
  • 11
    7080138 CABLE TIE
    CABLE TIE
  • 12
    1912393 MODULE, ABS
    MODULE, ABS
  • 13
    7518043 SCREW
    SCREW
  • 14
    5451591 COVER, ABS
    COVER, ABS
  • 15
    7661855 RIVET, TUFFLOK
    RIVET, TUFFLOK
  • 16
    5413711 GROMMET, ABS MOUNT
    GROMMET, ABS MOUNT
  • 17
    7519089 SCREW
    SCREW
  • 18
    1020662-329 BRACKET, ABS, E-COAT
    BRACKET, ABS, E-COAT
  • 19
    7547121 NUT
    NUT
  • 20
    1911066 RESERVOIR, REAR MCYL.
    RESERVOIR, REAR MCYL.
  • 21
    7080534 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    7081376 CLIP, BRAKE LINE
    CLIP, BRAKE LINE
  • 23
    5136840 COLLAR, ABS
    COLLAR, ABS
  • 24
    1912396 HOSE, BRAKE, REAR MSTR TO MOD
    HOSE, BRAKE, REAR MSTR TO MOD
  • 25
    1911132 HOSE, RES, BRAKE, PEGS
    HOSE, RES, BRAKE, PEGS
