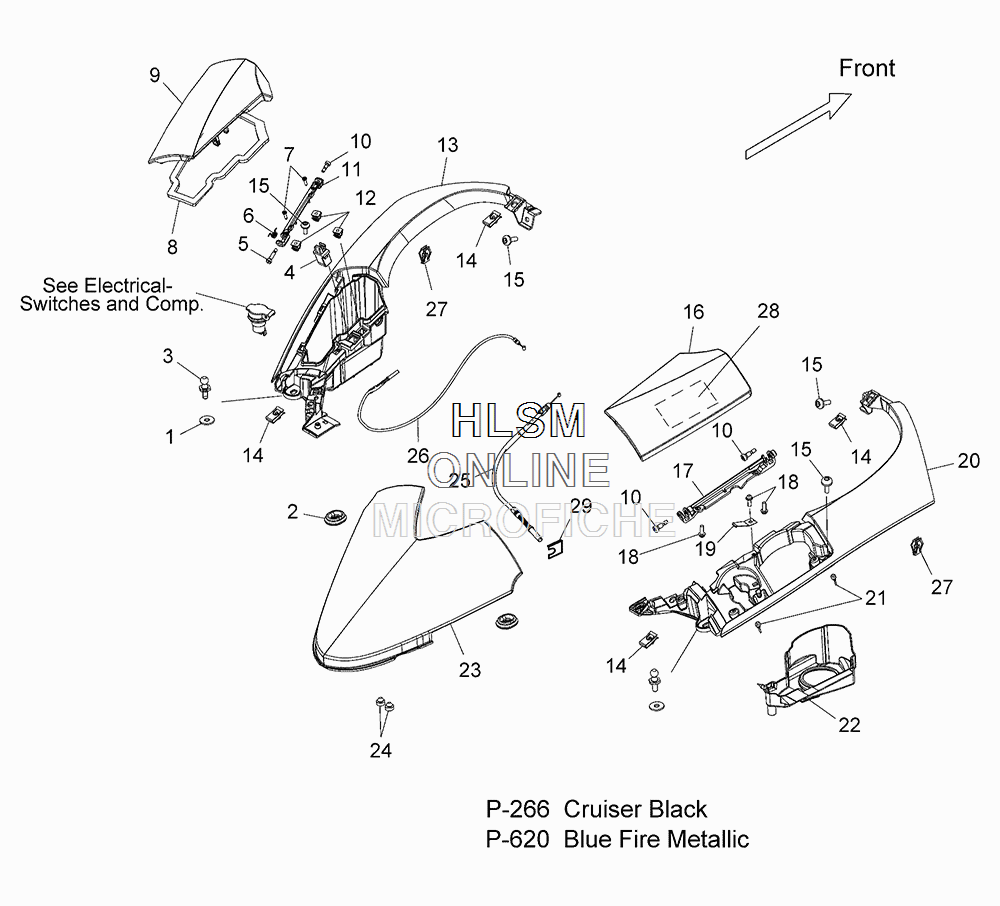

TANK COVER для Polaris VISION [V16SW36NA] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7556064 WASHER, FLAT
    WASHER, FLAT
  • 2
    5433833 GROMMET, SIDE COVER
    GROMMET, SIDE COVER
  • 3
    5135170 STUD, BALL, DAMPER
    STUD, BALL, DAMPER
  • 4
    2633518 LATCH, STORAGE, PUSH
    LATCH, STORAGE, PUSH
  • 5
    7518777 SCREW
    SCREW
  • 6
    7043317 SPRING, STORAGE, TORSION
    SPRING, STORAGE, TORSION
  • 7
    7518590 SCREW
    SCREW
  • 8
    5521726 SEAL, LID, STORAGE
    SEAL, LID, STORAGE
  • 9
    5437268-266 PANEL, DOOR, STORAGE, LH
    PANEL, DOOR, STORAGE, LH
  • 9
    5437268-520 PANEL, DOOR, STORAGE, LH
    PANEL, DOOR, STORAGE, LH
  • 10
    7518776 SCREW
    SCREW
  • 11
    5632191 BRACKET, PIVOT, LH
    BRACKET, PIVOT, LH
  • 12
    7547324 NUT, PAL
    NUT, PAL
  • 13
    5438102-266 PANEL, TANK COVER, LEFT HAND (INCL. 27) (CRUISER BLACK)
    PANEL, TANK COVER, LEFT HAND (INCL. 27) (CRUISER BLACK)
  • 13
    5438102-620 PANEL, TANK COVER, LEFT HAND (INCL. 27) (BLUE FIRE METALLIC)
    PANEL, TANK COVER, LEFT HAND (INCL. 27) (BLUE FIRE METALLIC)
  • 13
    5813181 MAT, STORAGE
    MAT, STORAGE
  • 14
    7081305 CLIP, U-SPEED NUT
    CLIP, U-SPEED NUT
  • 15
    7518484 SCREW
    SCREW
  • 16
    5436417-266 PANEL, DOOR, FUEL, RH (CRUISER BLACK)
    PANEL, DOOR, FUEL, RH (CRUISER BLACK)
  • 16
    5436417-520 PANEL, DOOR, FUEL, RH (BLUE FIRE METALLIC)
    PANEL, DOOR, FUEL, RH (BLUE FIRE METALLIC)
  • 17
    5632192 BRACKET, PIVOT, RH
    BRACKET, PIVOT, RH
  • 18
    7518641 SCREW
    SCREW
  • 19
    5249661 SPRING, STEEL
    SPRING, STEEL
  • 20
    5436416-266 PANEL, TANK COVER, RIGHT HAND (INCL. 27) (CRUISER BLACK)
    PANEL, TANK COVER, RIGHT HAND (INCL. 27) (CRUISER BLACK)
  • 20
    5436416-620 PANEL, TANK COVER, RIGHT HAND (INCL. 27) (BLUE FIRE METALLIC)
    PANEL, TANK COVER, RIGHT HAND (INCL. 27) (BLUE FIRE METALLIC)
  • 21
    5413033 BUMPER, GROMMET
    BUMPER, GROMMET
  • 22
    5412946 LINER, FUEL TRAY
    LINER, FUEL TRAY
  • 23
    5436418-266 PANEL, COVER, AIRBOX (CRUISER BLACK)
    PANEL, COVER, AIRBOX (CRUISER BLACK)
  • 23
    5436418-620 PANEL, COVER, AIRBOX
    PANEL, COVER, AIRBOX
  • 24
    5411323 BUMPER, GROMMET
    BUMPER, GROMMET
  • 25
    7081338 CABLE, FUEL RELEASE
    CABLE, FUEL RELEASE
  • 26
    7081337 CABLE, STORAGE RELEASE
    CABLE, STORAGE RELEASE
  • 27
    7081303 CLIP, TRIM
    CLIP, TRIM
  • 28
    7176166 DECAL, NOZZLE, GAS
    DECAL, NOZZLE, GAS
  • 29
    7710648 CLIP, CABLE TOWER
    CLIP, CABLE TOWER
