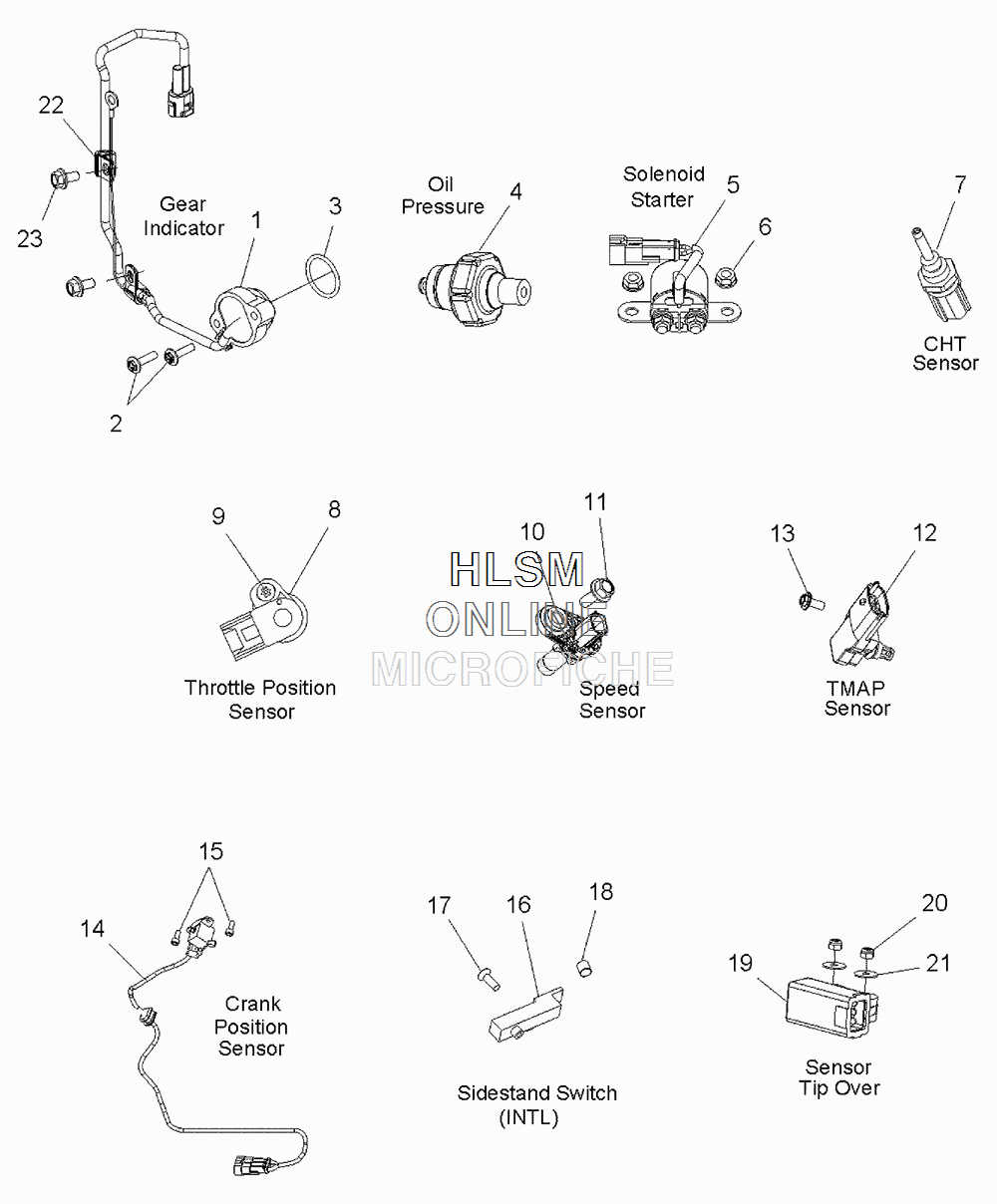

SWITCHES- SENSORS AND COMPONENTS 1 для Polaris VISION [V16SW36NA] - 2016 года выпуска`
-
№АртикулНазвание
-
14013956 SWITCH, GEAR INDICATORSWITCH, GEAR INDICATOR
-
27518338 SCREWSCREW
-
35412530 O-RINGO-RING
-
44012668 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
54014471 SOLENOID, STARTERSOLENOID, STARTER
-
67547270 NUTNUT
-
74014970 SENSOR, CYLINDER HEAD TEMPSENSOR, CYLINDER HEAD TEMP
-
84012101 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
97518901 SCREWSCREW
-
104011884 SENSOR, VEHICLE SPEED (ENGINE)SENSOR, VEHICLE SPEED (ENGINE)
-
117517750 SCREWSCREW
-
122410422 SENSOR, T-MAPSENSOR, T-MAP
-
137518338 SCREWSCREW
-
144012280 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
157518045 SCREWSCREW
-
164013130 SWITCH, SIDE STAND (INTL)SWITCH, SIDE STAND (INTL)
-
177519276 SCREW (INTL)SCREW (INTL)
-
184013131 MAGNET, SIDE STAND (INTL)MAGNET, SIDE STAND (INTL)
-
194011296 SENSOR, TIP OVERSENSOR, TIP OVER
-
207547126 NUT, NYLOKNUT, NYLOK
-
217556477 WASHER, FLATWASHER, FLAT
-
227080983 CLAMPCLAMP
-
237517278 SCREWSCREW
