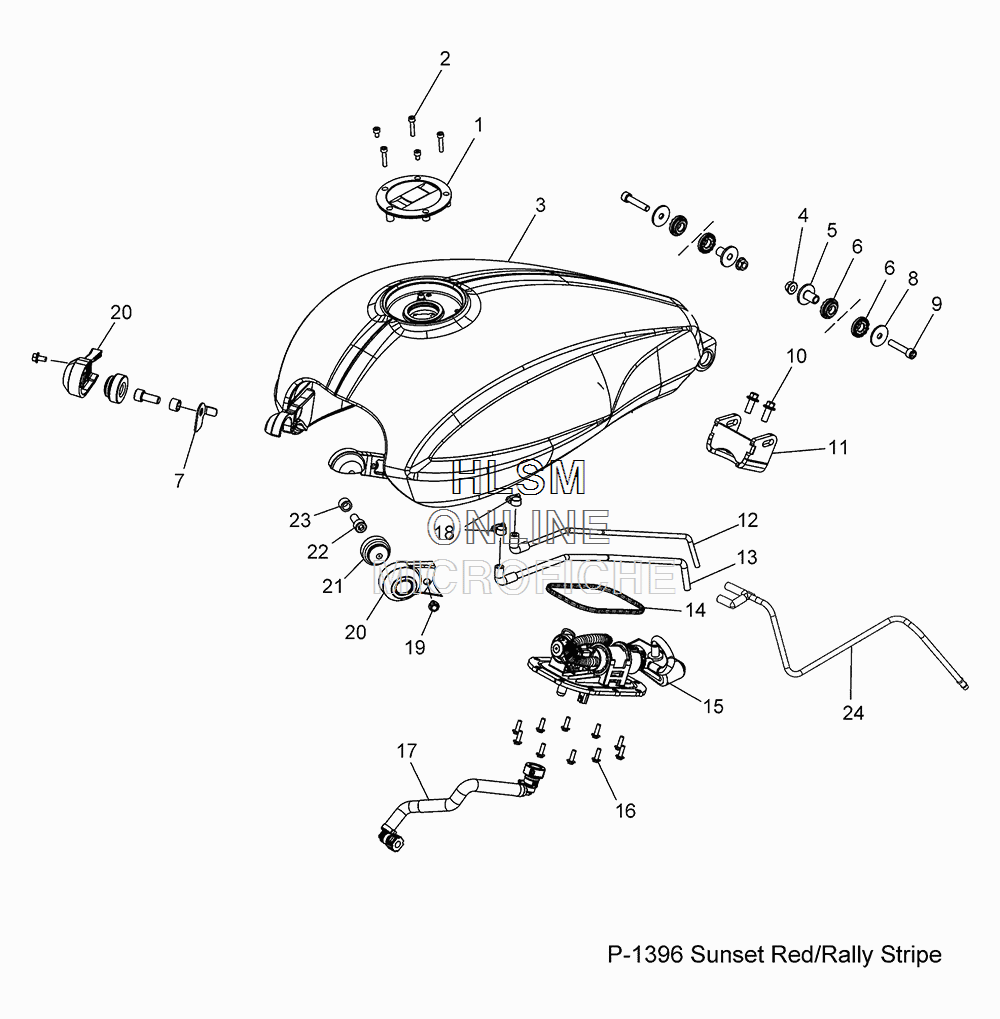

FUEL TANK для Polaris JUDGE [V16MW36ED] [INTERNATIONAL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4012377-266 ASM., IGNITION/FUEL CAP (BLACK)
    ASM., IGNITION/FUEL CAP (BLACK)
  • 2
    7518086 SCREW
    SCREW
  • 2
    7517845 SCREW
    SCREW
  • 2
    7517515 SCREW
    SCREW
  • 3
    1018260-1396 TANK, FUEL
    TANK, FUEL
  • 4
    7547014 NUT
    NUT
  • 5
    5136409 BUSHING, FLANGE
    BUSHING, FLANGE
  • 6
    5413491 BUSHING, FLANGE, RUBBER
    BUSHING, FLANGE, RUBBER
  • 7
    5256248 BRACKET, THROTTLE CABLE PROTECTOR
    BRACKET, THROTTLE CABLE PROTECTOR
  • 8
    7556175 WASHER
    WASHER
  • 9
    7518178 SCREW
    SCREW
  • 10
    7517838 SCREW
    SCREW
  • 11
    1018907 BRACKET., FUEL TANK MOUNT
    BRACKET., FUEL TANK MOUNT
  • 12
    5437376 LINE, FUEL VENT
    LINE, FUEL VENT
  • 13
    5435764 LINE, WATER DRAIN
    LINE, WATER DRAIN
  • 14
    5413346 SEAL, FUEL
    SEAL, FUEL
  • 15
    2521221 PUMP, FUEL
    PUMP, FUEL
  • 16
    7518923 SCREW
    SCREW
  • 17
    5414309 LINE, FUEL
    LINE, FUEL
  • 18
    7081151 CLAMP, HOSE, 9-14MM
    CLAMP, HOSE, 9-14MM
  • 19
    7517704 SCREW
    SCREW
  • 20
    5439143-463 LEFT HAND, COVER, TANK, BRACKET (FLAT BLACK)
    LEFT HAND, COVER, TANK, BRACKET (FLAT BLACK)
  • 20
    5439144-463 RIGHT HAND, COVER, TANK, BRACKET (FLAT BLACK)
    RIGHT HAND, COVER, TANK, BRACKET (FLAT BLACK)
  • 21
    5413479 ISOLATOR, TANK, FRONT
    ISOLATOR, TANK, FRONT
  • 22
    7517358 SCREW
    SCREW
  • 23
    5336872 SPACER
    SPACER
  • 24
    5435771 LINE, WTR/FUEL TO GROUND
    LINE, WTR/FUEL TO GROUND
