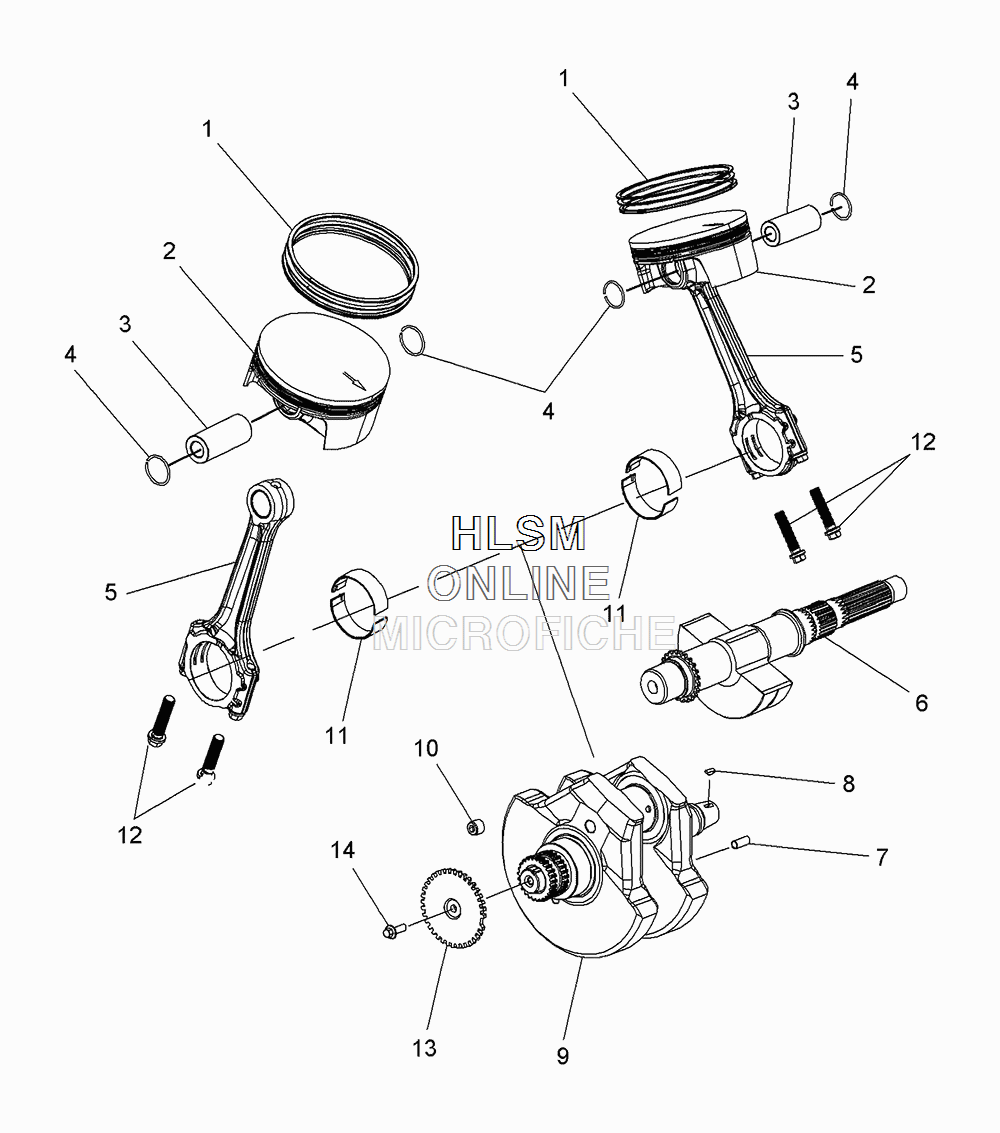

CRANKSHAFT AND PISTON для Polaris JUDGE [V16MW36ED] [INTERNATIONAL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2203006 KIT, PISTON RING, 101MM (INCL. TOP, MIDDLE, BOTTOM RINGS)
    KIT, PISTON RING, 101MM (INCL. TOP, MIDDLE, BOTTOM RINGS)
  • 2
    3021832 ASM., PISTON, 101MM (INCL. PISTON, RINGS, CLIPS, PIN)
    ASM., PISTON, 101MM (INCL. PISTON, RINGS, CLIPS, PIN)
  • 3
    5131860 PIN, WRIST
    PIN, WRIST
  • 4
    7710479 RING, RETAINING
    RING, RETAINING
  • 5
    3021663 ASM., CONNECTING ROD, 175.5MM (INCL.12)
    ASM., CONNECTING ROD, 175.5MM (INCL.12)
  • 6
    5137428 SHAFT, BALANCE
    SHAFT, BALANCE
  • 7
    7661045 PIN, SOLID
    PIN, SOLID
  • 8
    7721122 KEY
    KEY
  • 9
    3022089 ASM., CRANKSHAFT, 54MM (INCL. 8,10)
    ASM., CRANKSHAFT, 54MM (INCL. 8,10)
  • 11
    3514390-067 BEARING, ROD (BLACK)
    BEARING, ROD (BLACK)
  • 11
    3514390-159 BEARING, ROD (ORANGE)
    BEARING, ROD (ORANGE)
  • 11
    3514390-027 BEARING, ROD (BLUE)
    BEARING, ROD (BLUE)
  • 12
    7518524 SCREW
    SCREW
  • 13
    3021823 WHEEL, TIMING, CRANK POSITION
    WHEEL, TIMING, CRANK POSITION
  • 14
    7516734 SCREW
    SCREW
