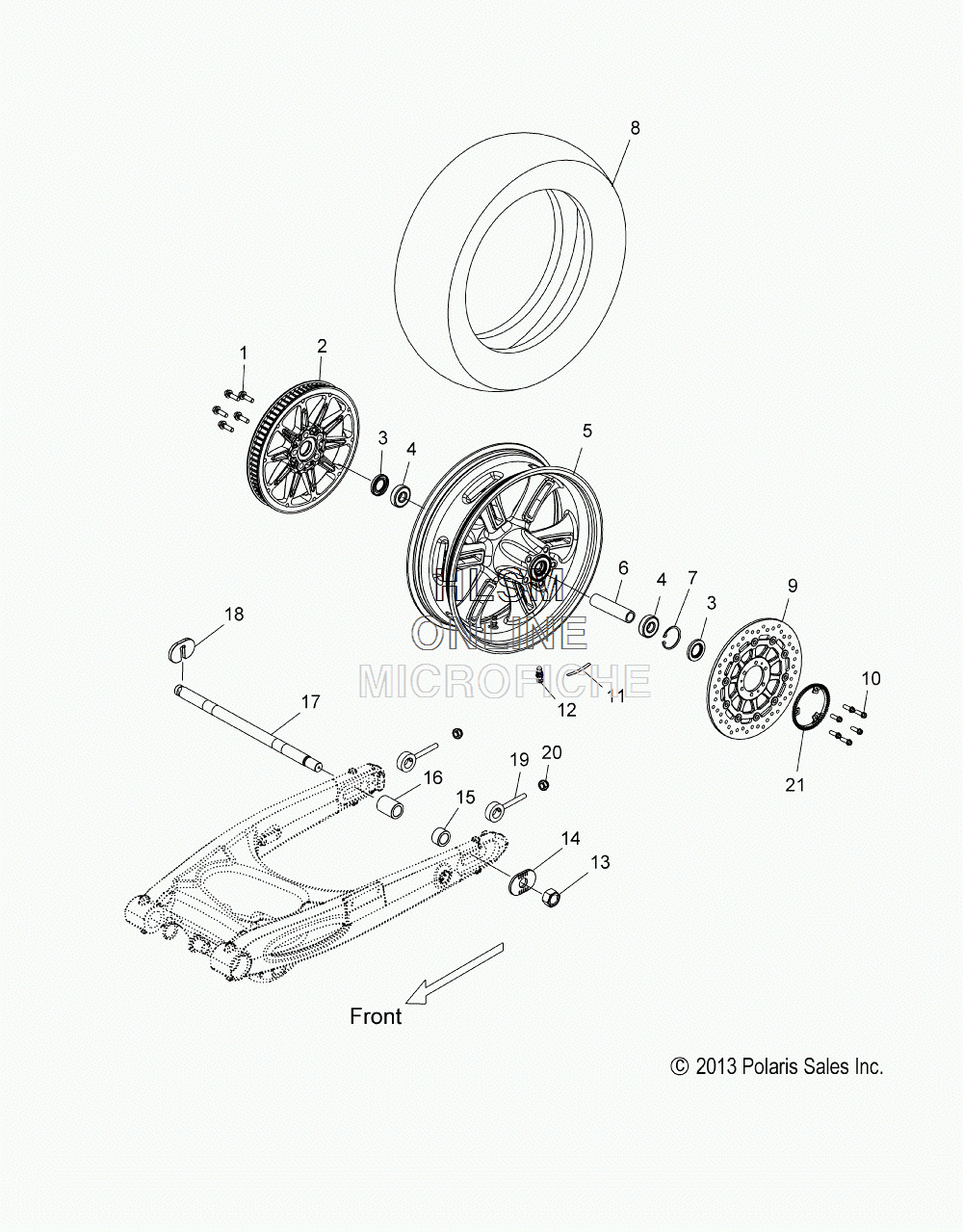

WHEELS- REAR для Polaris VISION TOUR [V14SW36] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7518878 SCREW
    SCREW
  • 2
    1332399-521 ASM., SPROCKET, DRIVEN, 70T, BLACK ENGINE WRINKLE
    ASM., SPROCKET, DRIVEN, 70T, BLACK ENGINE WRINKLE
  • 3
    3610094 SEAL
    SEAL
  • 4
    3514405 BEARING, BALL
    BEARING, BALL
  • 5
    1521384-266 ASM., WHEEL, CAST, REAR, TR, BLACK
    ASM., WHEEL, CAST, REAR, TR, BLACK
  • 6
    5335811 SPACER, BEARING, WHEEL, REAR, MID
    SPACER, BEARING, WHEEL, REAR, MID
  • 7
    7710526 RING, RETAINING
    RING, RETAINING
  • 8
    5413397 TIRE, 180/60R16
    TIRE, 180/60R16
  • 9
    1911692-266 ROTOR, BRAKE, REAR, 7MM, BLACK
    ROTOR, BRAKE, REAR, 7MM, BLACK
  • 10
    7518661 SCREW
    SCREW
  • 11
    1521682 WEIGHT, BALANCE, BLACK
    WEIGHT, BALANCE, BLACK
  • 12
    1521312 VALVE, RIM
    VALVE, RIM
  • 13
    7547226 NUT
    NUT
  • 14
    5248452-236 WASHER, INDICATOR, AXLE, ZINC
    WASHER, INDICATOR, AXLE, ZINC
  • 15
    5631479 SPACER, BEARING, LEFT HAND
    SPACER, BEARING, LEFT HAND
  • 16
    5631581 SPACER, WHEEL, REAR, RIGHT HAND
    SPACER, WHEEL, REAR, RIGHT HAND
  • 17
    5137446 AXLE, REAR
    AXLE, REAR
  • 18
    5248599 RETAINER, AXLE, REAR
    RETAINER, AXLE, REAR
  • 19
    1014895 ADJUSTER, AXLE
    ADJUSTER, AXLE
  • 20
    7547144 NUT, NYLOK
    NUT, NYLOK
  • 21
    5632541 RING, TONE, ABS
    RING, TONE, ABS
