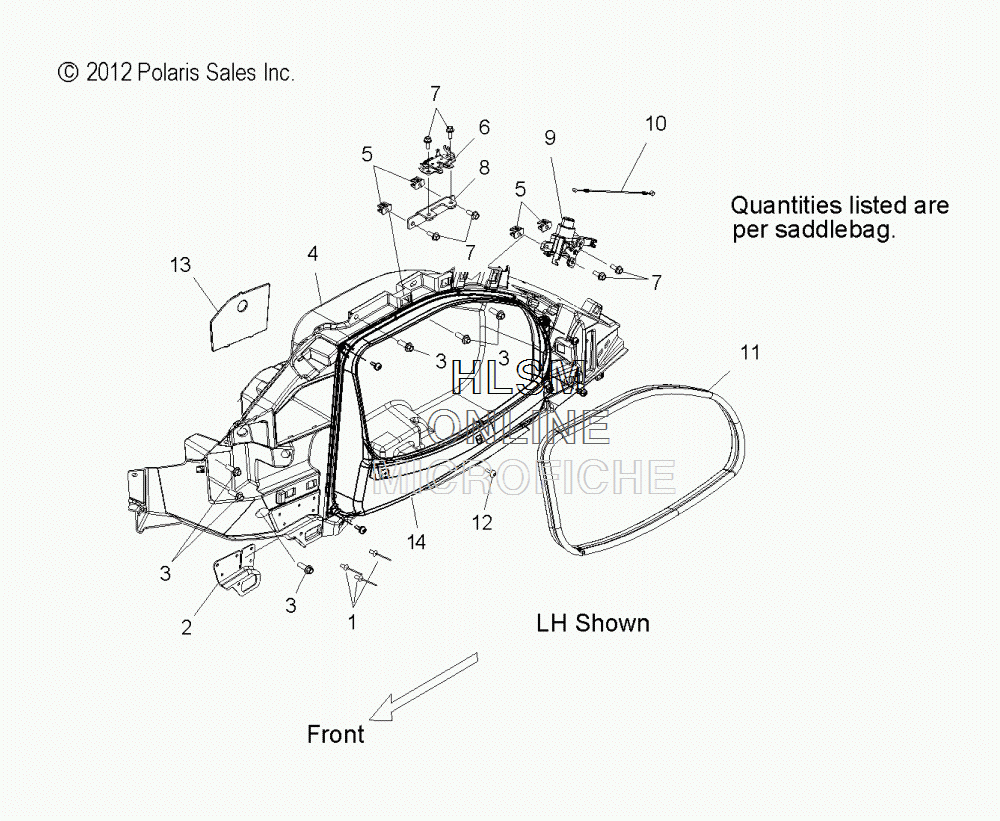

SADDLEBAG - INNER для Polaris VISION TOUR [V14SW36] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7661949 RIVET
    RIVET
  • 2
    5252408 SUPPORT, MUFFLER MOUNT, LEFT HAND
    SUPPORT, MUFFLER MOUNT, LEFT HAND
  • 2
    5252409 SUPPORT, MUFFLER MOUNT, RIGHT HAND
    SUPPORT, MUFFLER MOUNT, RIGHT HAND
  • 3
    7518569 SCREW
    SCREW
  • 4
    5438062 BIN, SADDLEBAG, INNER, LEFT HAND, W/ABS
    BIN, SADDLEBAG, INNER, LEFT HAND, W/ABS
  • 4
    5437131 BIN, SADDLEBAG, INNER, RIGHT HAND
    BIN, SADDLEBAG, INNER, RIGHT HAND
  • 5
    7081304 CLIP, EXPANSION
    CLIP, EXPANSION
  • 6
    7081274 LATCH, SADDLEBAG, LEFT HAND
    LATCH, SADDLEBAG, LEFT HAND
  • 6
    7081275 LATCH, SADDLEBAG, RIGHT HAND
    LATCH, SADDLEBAG, RIGHT HAND
  • 7
    7518591 SCREW
    SCREW
  • 8
    1017010 BRACKET, LATCH, BAG
    BRACKET, LATCH, BAG
  • 9
    7081273 LOCK, SADDLEBAG
    LOCK, SADDLEBAG
  • 10
    7081678 CABLE, SADDLEBAG LATCH, LEFT HAND
    CABLE, SADDLEBAG LATCH, LEFT HAND
  • 10
    7081679 CABLE, SADDLEBAG LATCH, RIGHT HAND
    CABLE, SADDLEBAG LATCH, RIGHT HAND
  • 11
    5521804 SEAL, SADDLEBAG
    SEAL, SADDLEBAG
  • 12
    7518518 SCREW
    SCREW
  • 13
    5436272 DOOR, TOOL
    DOOR, TOOL
  • 14
    5436204 BIN, OUTER, LEFT HAND
    BIN, OUTER, LEFT HAND
  • 14
    5436205 BIN, OUTER, RIGHT HAND
    BIN, OUTER, RIGHT HAND
