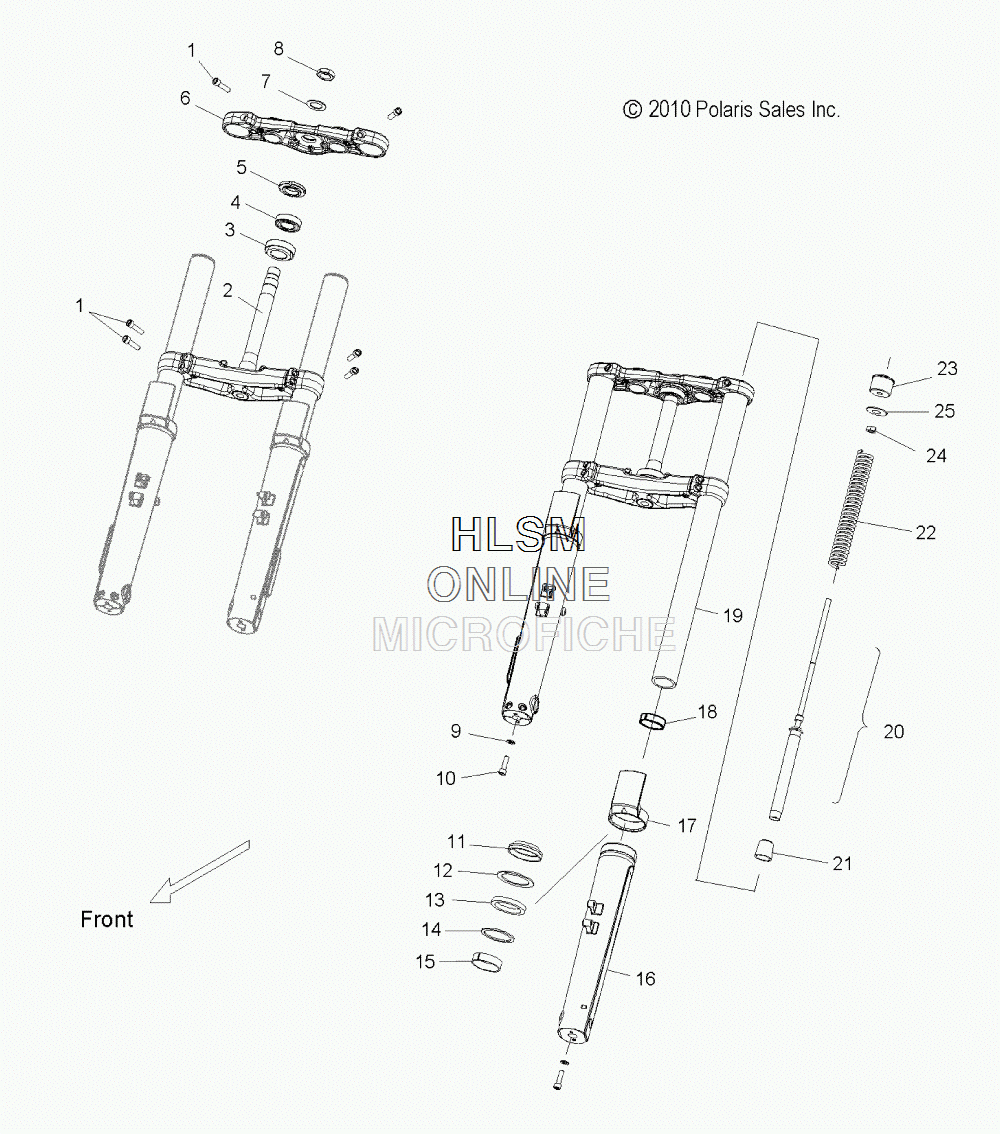

FRONT FORKS AND CLAMPS для Polaris VISION TOUR - 2012 года выпуска

  • №
    Артикул
    Название
  • 16
    1823390-385 ASM., FORK, LEFT HAND, SILVER, 46 MM (INCL. 9-24)
    ASM., FORK, LEFT HAND, SILVER, 46 MM (INCL. 9-24)
  • 16
    1823391-385 ASM., FORK, RIGHT HAND, SILVER, 46 MM (INCL. 9-24)
    ASM., FORK, RIGHT HAND, SILVER, 46 MM (INCL. 9-24)
  • 1
    7517361 SCREW
    SCREW
  • 2
    1823448-067 ASM., CLAMP, TRIPLE, LOWER, BLACK
    ASM., CLAMP, TRIPLE, LOWER, BLACK
  • 3
    3514416 BEARING, NDL
    BEARING, NDL
  • 4
    3514549 BEARING, BALL
    BEARING, BALL
  • 5
    5134094 NUT, STEERING HEAD
    NUT, STEERING HEAD
  • 6
    5136477-067 CLAMP, TRIPLE, UPPER, BLACK
    CLAMP, TRIPLE, UPPER, BLACK
  • 7
    7556246 WASHER
    WASHER
  • 8
    5134148 NUT, TOP, TRIPLE CLAMP
    NUT, TOP, TRIPLE CLAMP
  • 9
    1500798 PACKING
    PACKING
  • 10
    7519082 SCREW
    SCREW
  • 11
    3610158 SEAL, DUST
    SEAL, DUST
  • 12
    7710628 RING, SNAP
    RING, SNAP
  • 13
    3610157 SEAL, OIL
    SEAL, OIL
  • 14
    7556493 WASHER
    WASHER
  • 15
    5136822 SLIDE, METAL
    SLIDE, METAL
  • 16
    5632273-385 TUBE, OUTER, SILVER (LEFT HAND)
    TUBE, OUTER, SILVER (LEFT HAND)
  • 16
    5632272-385 TUBE, OUTER, SILVER (RIGHT HAND)
    TUBE, OUTER, SILVER (RIGHT HAND)
  • 17
    7175807 PROTECTOR
    PROTECTOR
  • 18
    5136821 BUSHING, PISTON
    BUSHING, PISTON
  • 19
    5137276 TUBE, INNER
    TUBE, INNER
  • 20
    5136806 CYLINDER COMPLETE
    CYLINDER COMPLETE
  • 21
    2203973 ASM., OIL LOCK
    ASM., OIL LOCK
  • 22
    7043498 SPRING
    SPRING
  • 23
    5136808 CAP
    CAP
  • 24
    7547447 NUT
    NUT
  • 25
    7556496 SPACER
    SPACER
